Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver information center (DIC). Refer to DRIVER INFORMATION CENTER MODULE REPLACEMENT in Instrument Panel, Gages, and Console.
  2. Remove the illumination lamp:
    • Use pliers to rotate the red colored illumination lamp counterclockwise.
    • Remove the illumination lamp.

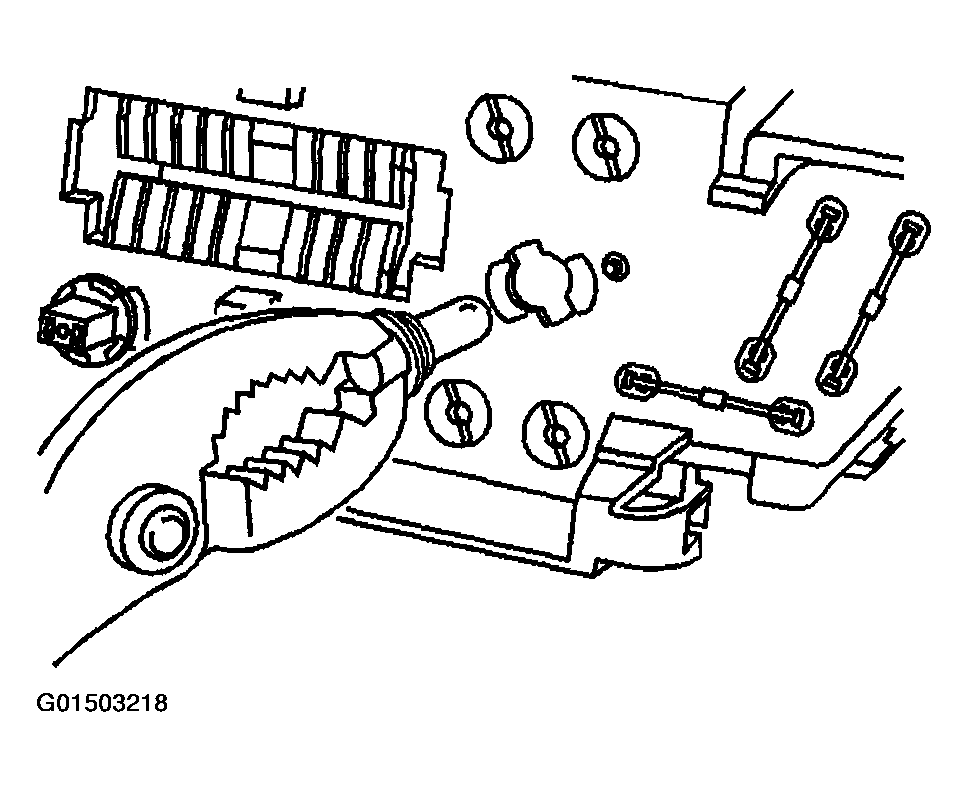

      Fig 1: Removing Illumination Lamp
      G01503218Courtesy of GENERAL MOTORS CORP.
  3. Remove the door ajar lamp:
    • Use a flat-bladed tool to rotate the black colored door ajar lamp counterclockwise.
    • Remove the door ajar lamp.

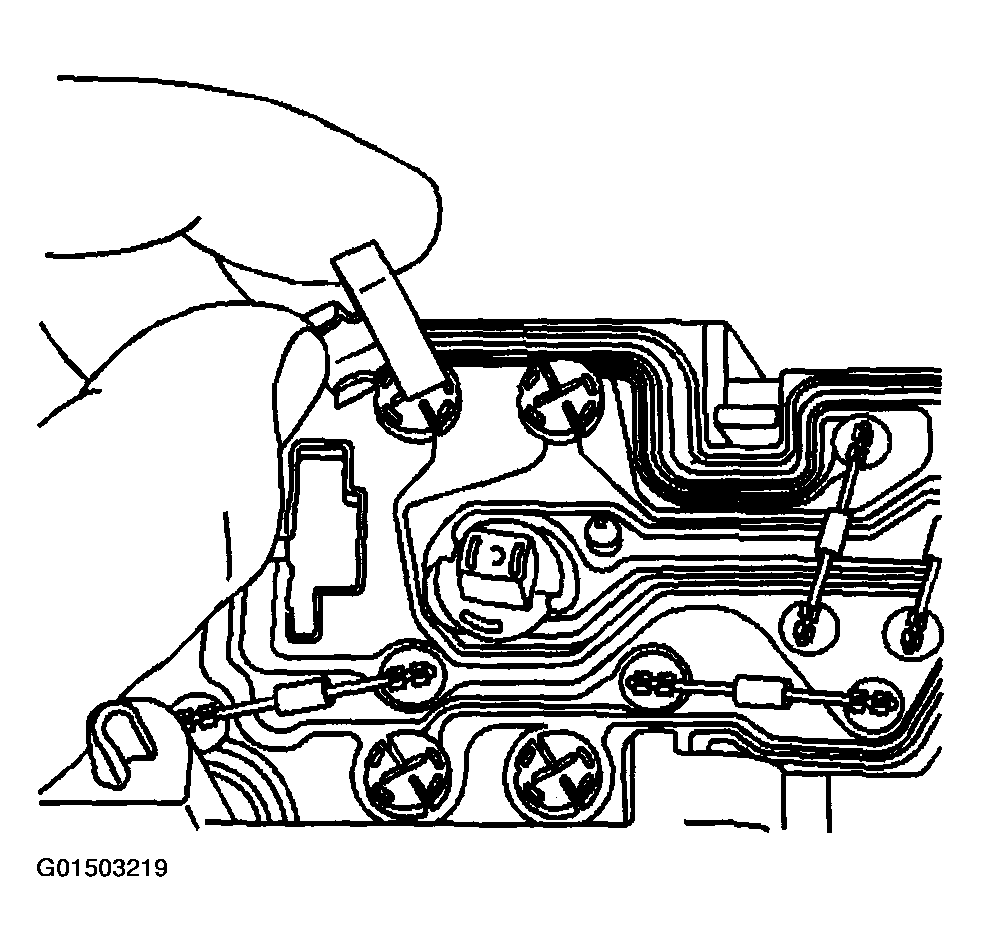

      Fig 2: Removing Door Ajar Lamp
      G01503219Courtesy of GENERAL MOTORS CORP.
  4. Remove the Trac Off, Low Trac, Trunk Ajar, Low Washer, or Chg Oil Soon lamp:
    • Use pliers to rotate the blue colored lamp counterclockwise.
    • Remove the lamp.

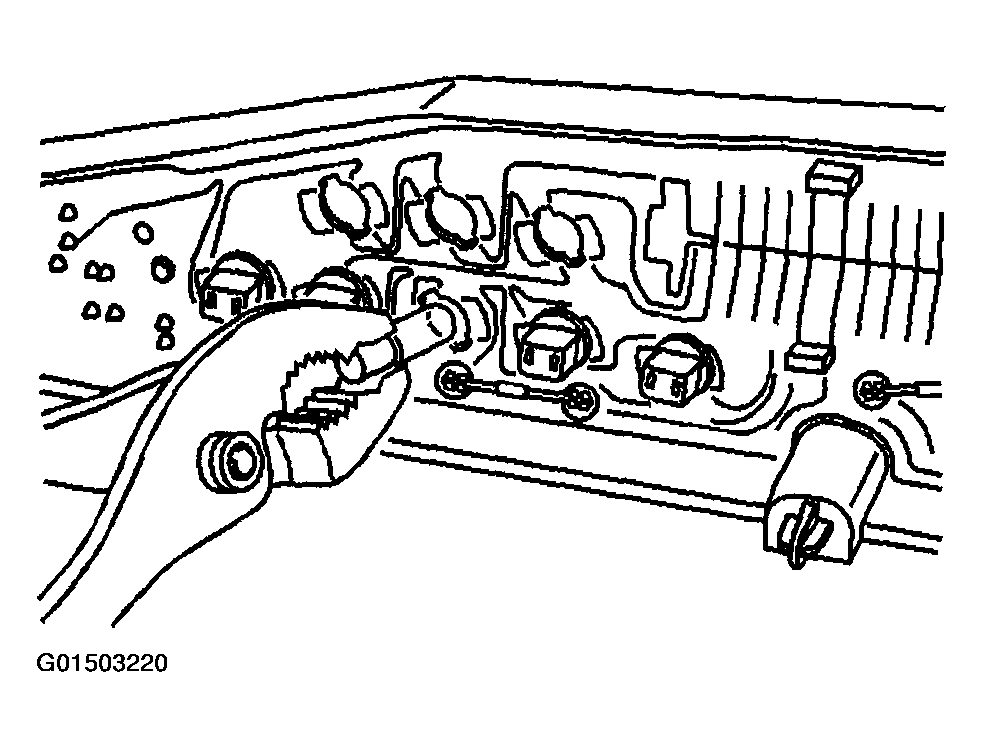

      Fig 3: Removing Trac Off, Low Trac, Trunk Ajar, Low Washer, Or Chg Oil Soon Lamp
      G01503220Courtesy of GENERAL MOTORS CORP.
