Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the DRL ambient light sensor (3).
  2. Install the DRL ambient light sensor to the sensor bezel. Rotate the sensor clockwise to secure.

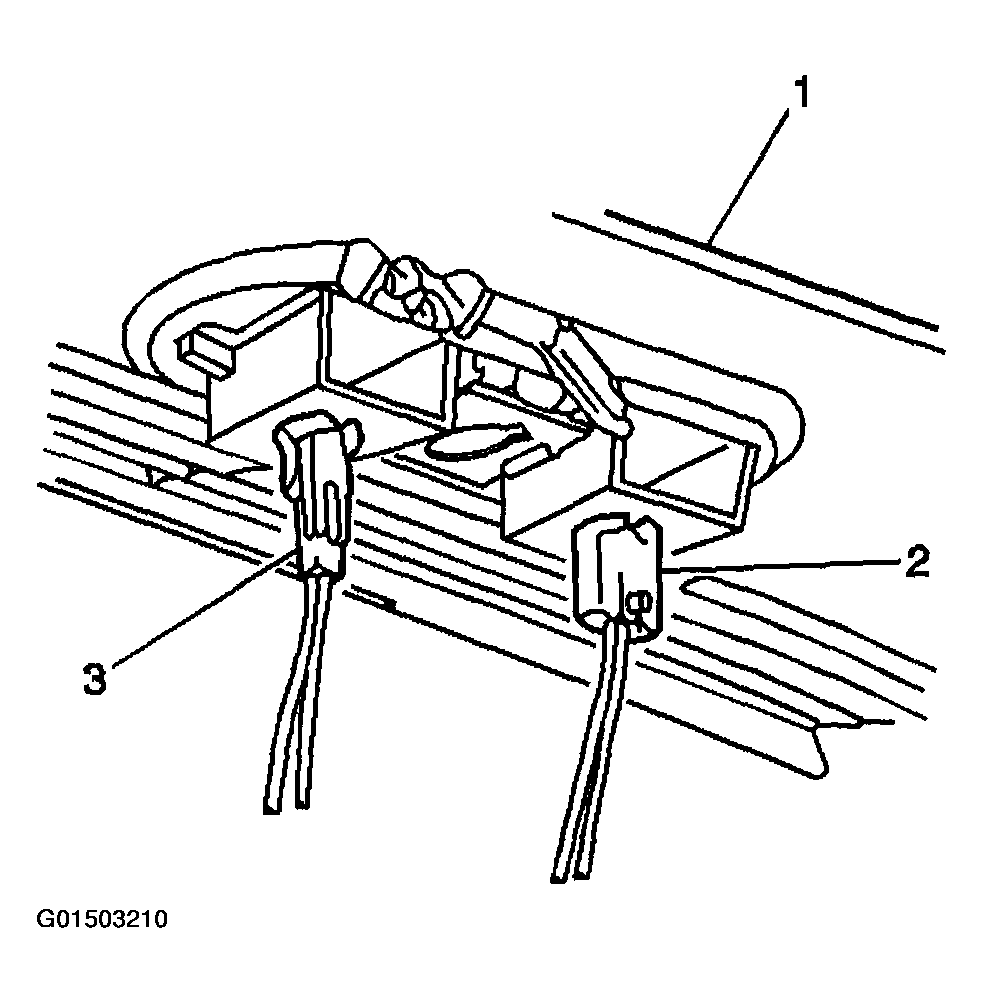

    Fig 1: Installing Daytime Running Lamp Ambient Light Sensor
    G01503210Courtesy of GENERAL MOTORS CORP.
  3. Position the forward edge of the sensor bezel to the I/P upper trim panel.
  4. Press the rear edge of the sensor bezel down until the rear retainers are seated correctly.
    Fig 2: Installing Sensor Bezel Into Upper Trim Plate
    G01503211Courtesy of GENERAL MOTORS CORP.
