Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the appropriate instrument panel (IP) insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT  or  CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT  in Instrument Panel, Gages, and Console.
  2. Rotate the IP courtesy lamp socket counterclockwise. Remove the socket from the IP insulator.
  3. Remove the bulb from the socket.

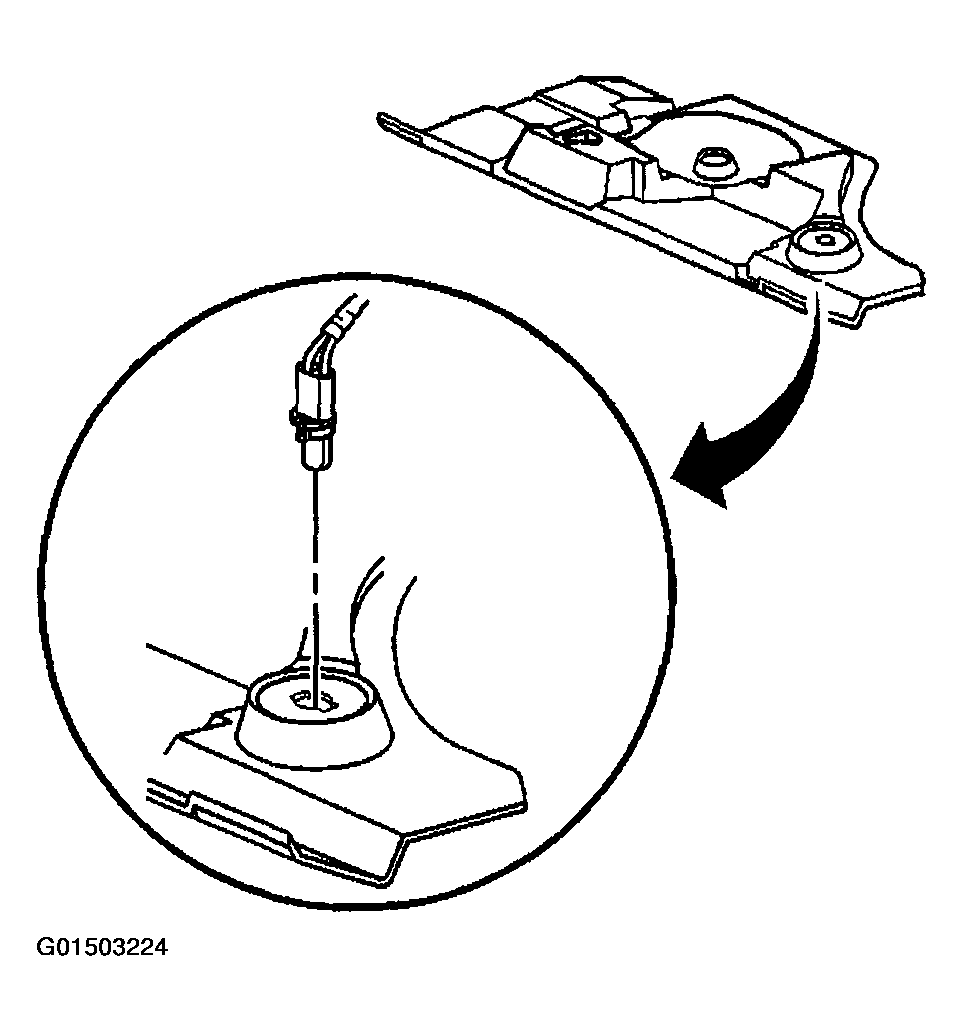

    Fig 1: Removing Instrument Panel Courtesy Lamp
    G01503224Courtesy of GENERAL MOTORS CORP.
