Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ashtray from the I/P. Refer to ASHTRAY REPLACEMENT in Instrument Panel, Gages and Console.
  2. Rotate the ashtray lamp socket clockwise.
  3. Remove the lamp socket from the housing.
  4. Remove the bulb from the ashtray lamp socket.

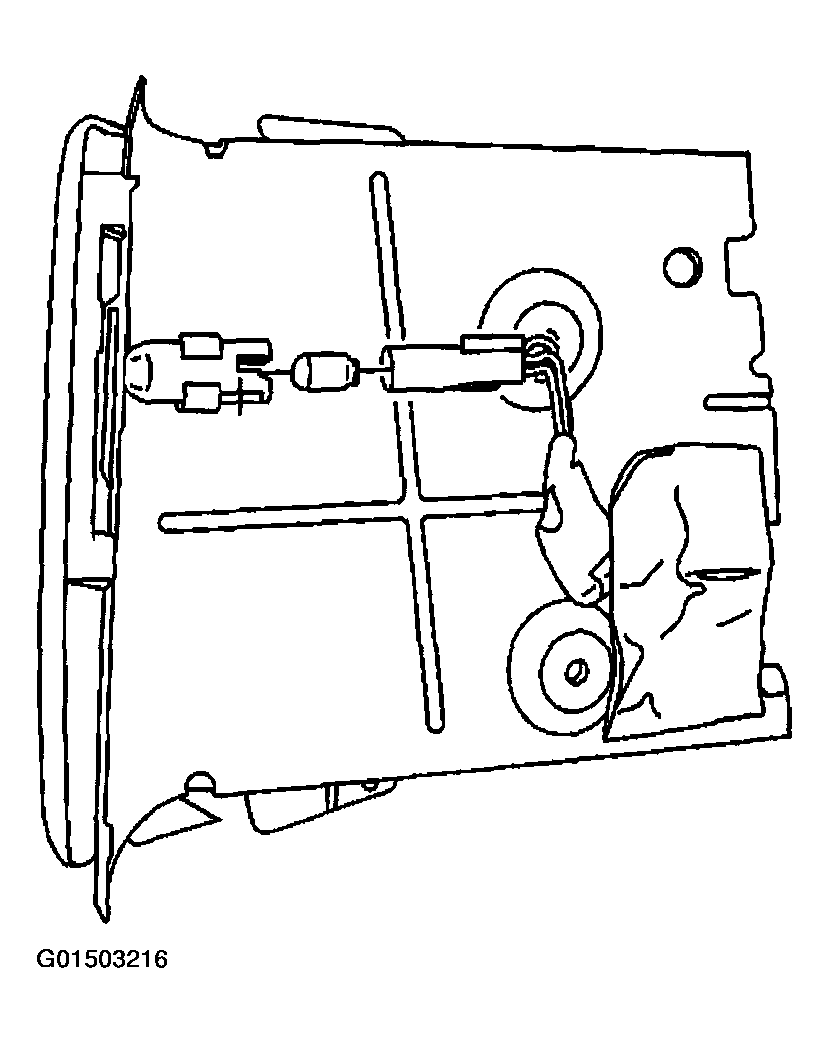

    Fig 1: Removing Bulb From Ashtray Lamp Socket
    G01503216Courtesy of GENERAL MOTORS CORP.
