Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Important: The muffler is serviced as a complete assembly and cannot be serviced separately.

Raise and support the vehicle. Refer to JACKING AND LIFTING in General information.
Support the exhaust system.
Remove the catalytic converter from the muffler. Refer to CATALYTIC CONVERTER REPLACEMENT (3.1L) or CATALYTIC CONVERTER REPLACEMENT (3.8L) .
Remove the exhaust system from the exhaust hangers.
Clean the catalytic converter and the muffler gasket mating surfaces.

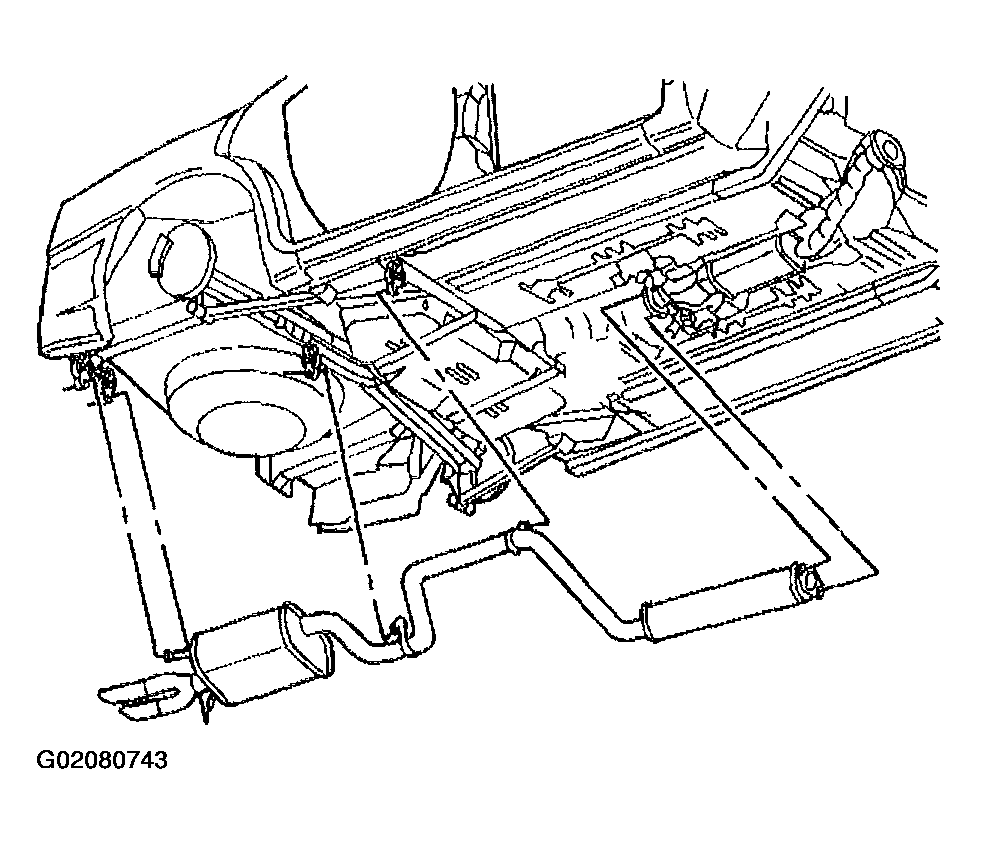

Fig 1: Removing Exhaust System From Exhaust Hangers
Courtesy of GENERAL MOTORS CORP.
