Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust muffler rear hanger bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the inboard and the outboard rear bumper impact bar bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

    Fig 1: Installing Exhaust Muffler Rear Hanger Bracket
    G02080735Courtesy of GENERAL MOTORS CORP.
  3. Install the exhaust pipe rear hanger insulators to the exhaust muffler rear hanger bracket.
  4. Remove the support from the exhaust system.
  5. Inspect the exhaust system for underbody contact.
  6. Lower the vehicle.

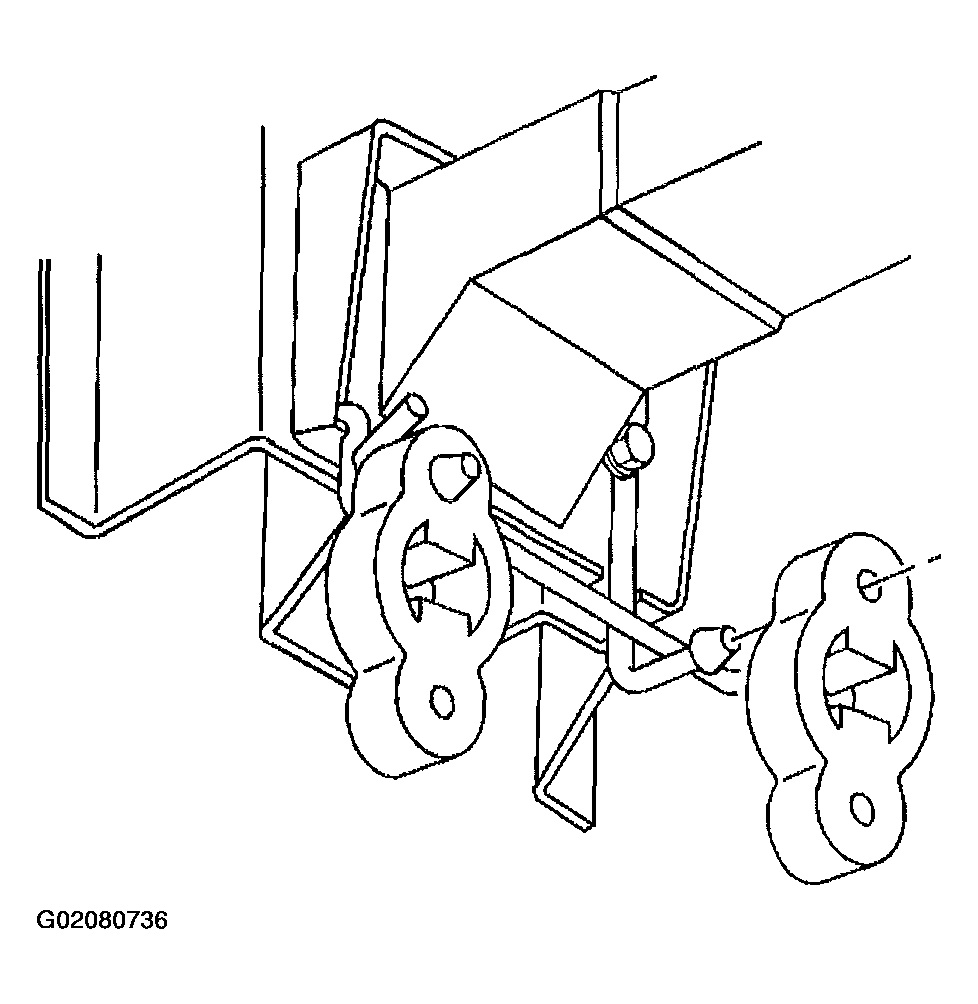

    Fig 2: Installing Exhaust Pipe Rear Hanger Insulators To Exhaust Muffler Rear Hanger Bracket
    G02080736Courtesy of GENERAL MOTORS CORP.
