Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust crossover pipe seal to the exhaust crossover pipe at the right exhaust manifold connection.
  2. Install the exhaust crossover pipe.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the exhaust crossover pipe bolts.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

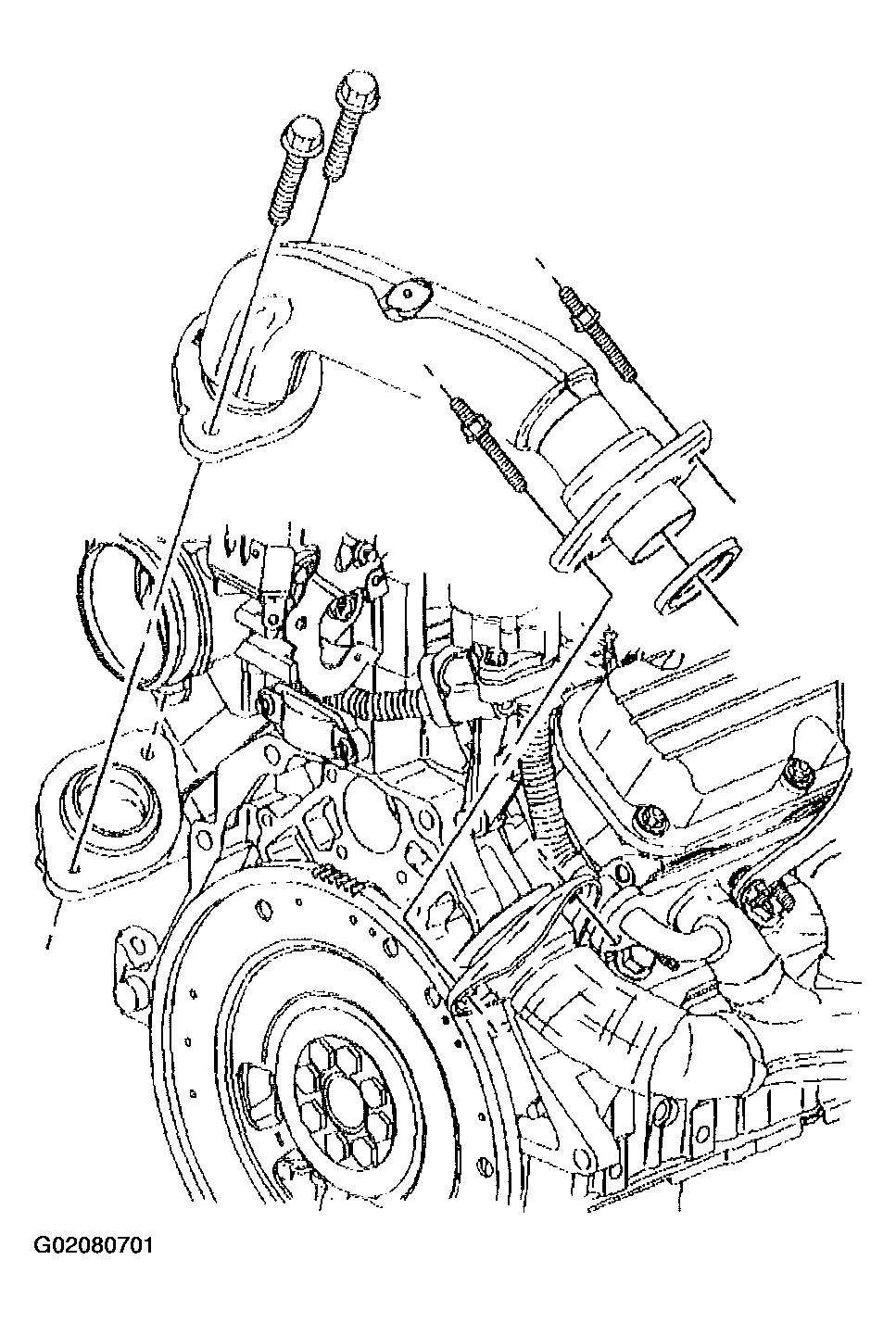

    Fig 1: Installing Exhaust Crossover Pipe And Bolts
    G02080701Courtesy of GENERAL MOTORS CORP.
  4. Install the exhaust crossover heat shield.
  5. Install the exhaust crossover heat shield nuts.

    Tighten

    Tighten the nuts to 20 N.m (15 lb ft).

  6. Install the air cleaner intake duct.
  7. Install the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L36) or FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L67) in Engine Mechanical - 3.8L.

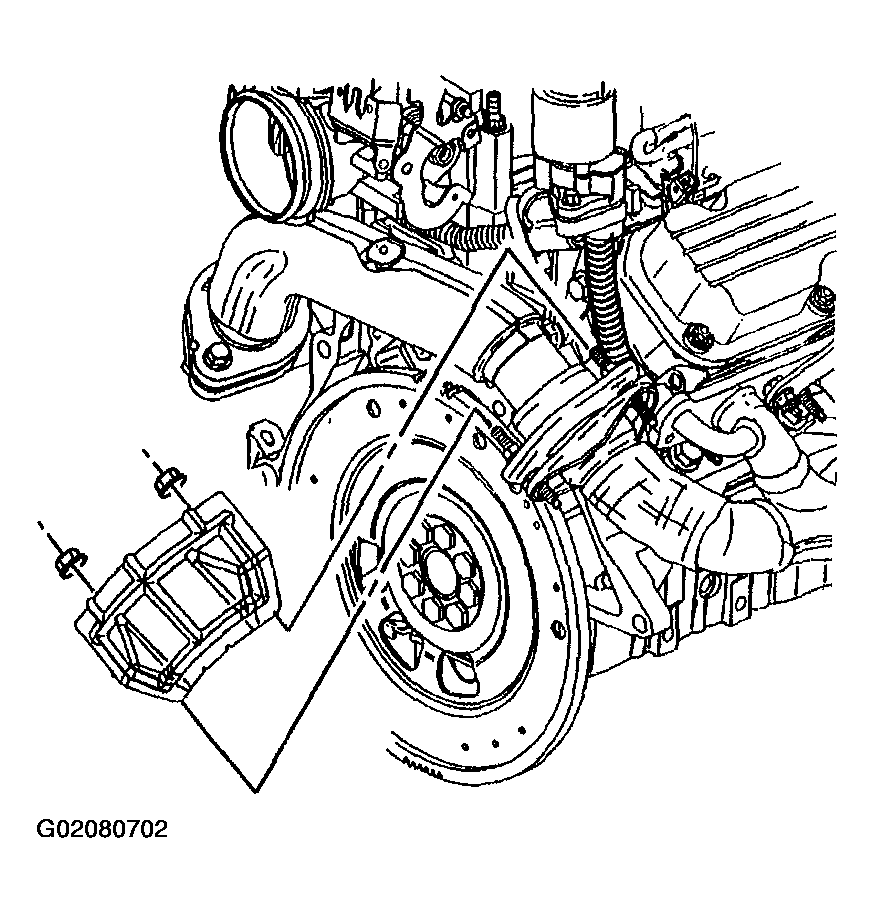

    Fig 2: Installing Exhaust Crossover Heat Shield And Nuts
    G02080702Courtesy of GENERAL MOTORS CORP.
