Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the gasket.
  2. Install the water pump.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the water pump bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

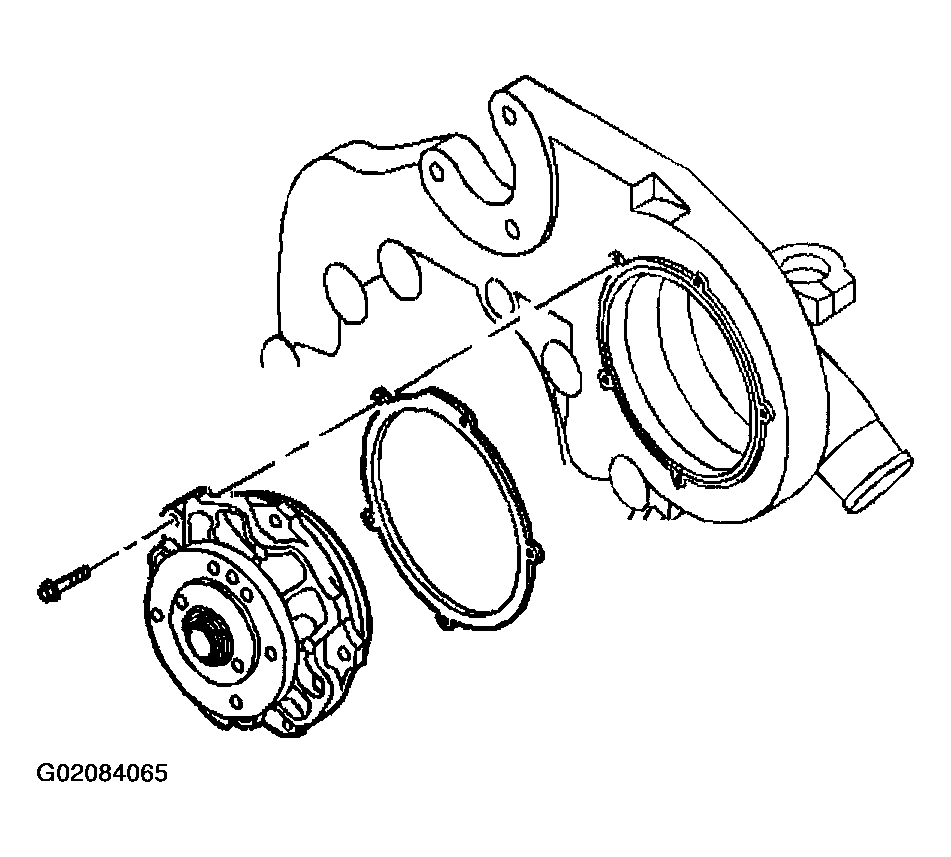

    Fig 1: Installing Water Pump And Gasket
    G02084065Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley.
  5. Install the water pump pulley bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  6. Install the drive belt. Refer to DRIVE BELT REPLACEMENT in Engine Mechanical - 3.1L.
  7. Install the drive belt shield and the bolt.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

  8. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .

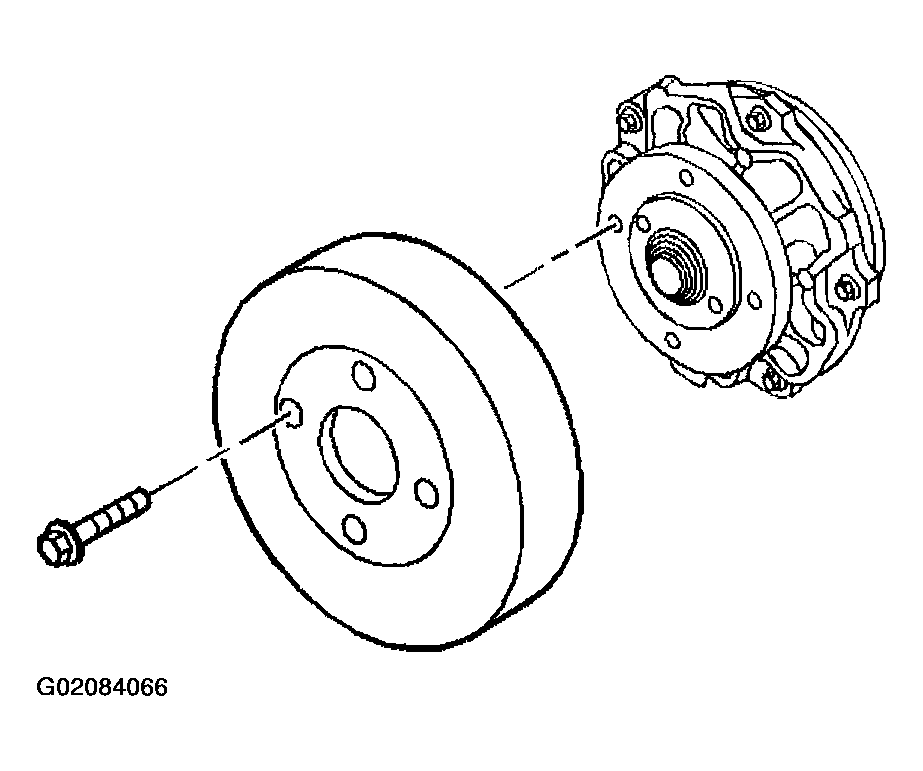

    Fig 2: Installing Water Pump Pulley
    G02084066Courtesy of GENERAL MOTORS CORP.
