Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the throttle body outlet hose (4).
  2. Install the throttle body outlet hose and the clamp to the throttle body.
  3. Install the throttle body outlet hose (4) and the clamp to the coolant pipe.
  4. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .
  5. Install the air cleaner intake duct.

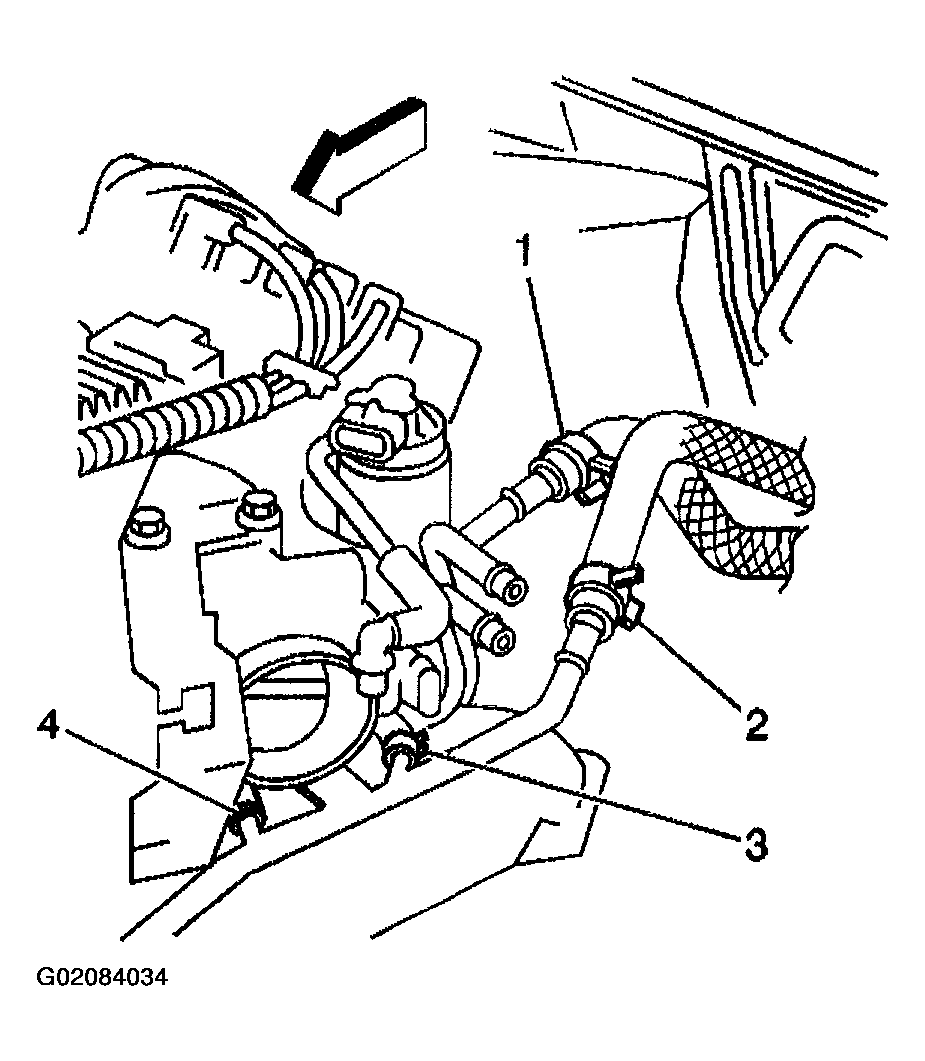

    Fig 1: Installing Throttle Body Outlet Hose
    G02084034Courtesy of GENERAL MOTORS CORP.
