Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner intake duct.
  2. Partially drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .
  3. Use the J 38185  in order to reposition the hose clamp from the water outlet housing.
  4. Remove the radiator inlet hose from the water outlet housing.

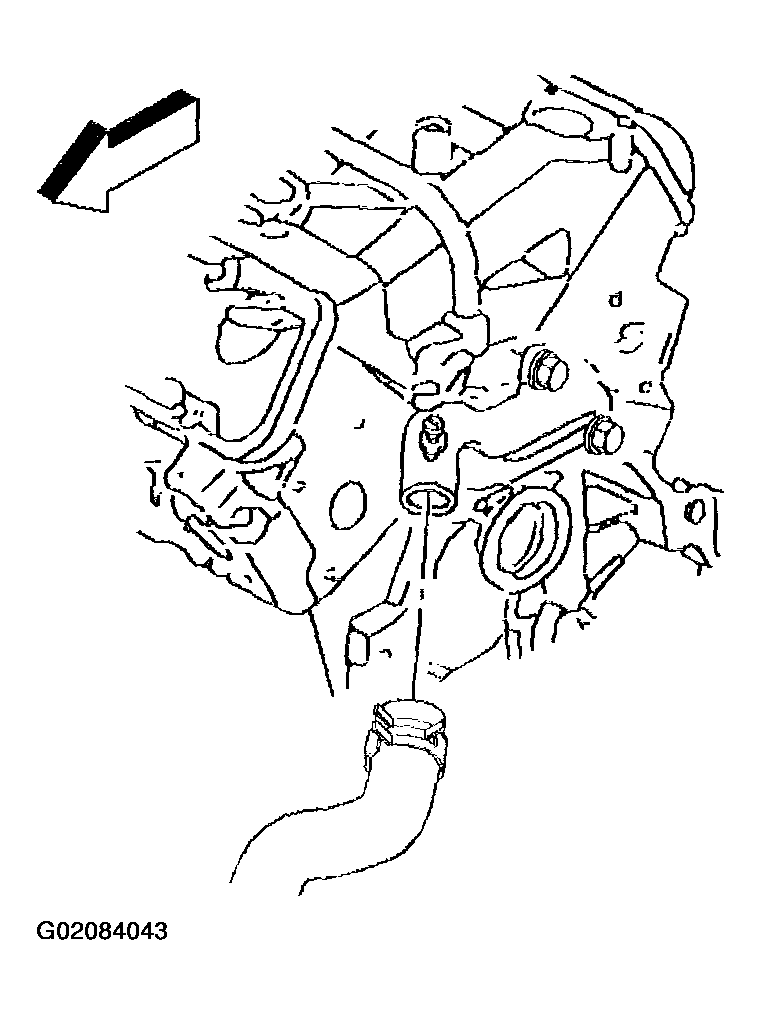

    Fig 1: Removing Radiator Inlet Hose From Water Outlet Housing (3.1 L)
    G02084043Courtesy of GENERAL MOTORS CORP.
  5. Remove the exhaust crossover pipe. Refer to ENGINE EXHAUST SYSTEM or EXHAUST CROSSOVER PIPE REPLACEMENT (3.8L) in Engine Exhaust.
  6. Remove the water outlet housing bolts.
  7. Remove the water outlet housing and the gasket.

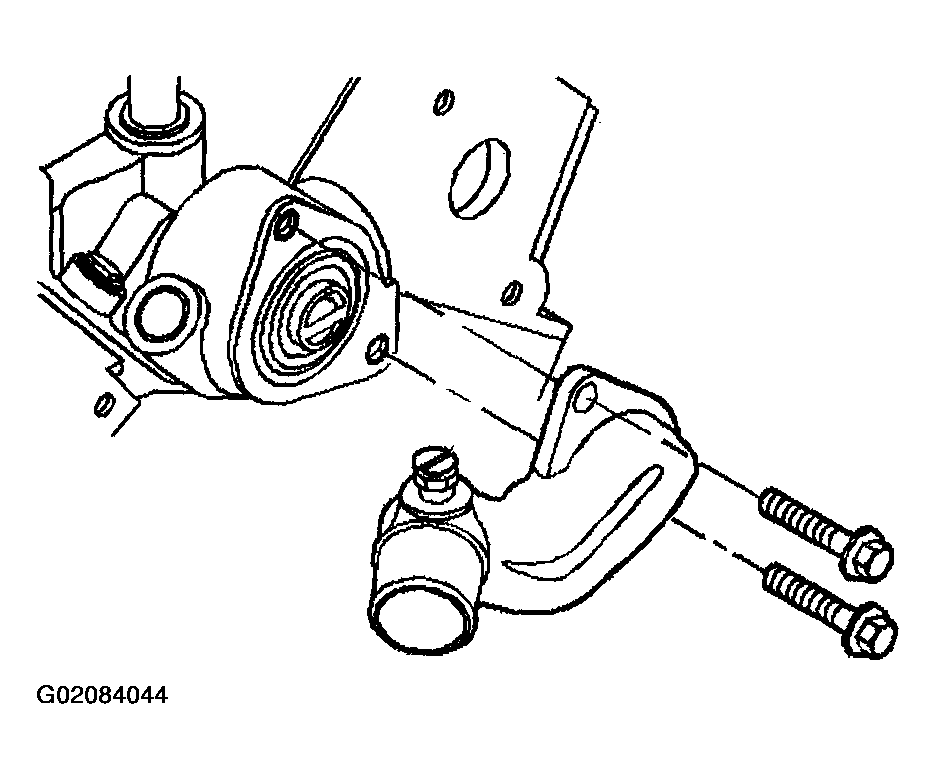

    Fig 2: Removing Water Outlet Housing
    G02084044Courtesy of GENERAL MOTORS CORP.
  8. Remove the thermostat.
  9. Clean and inspect the water outlet housing gasket mating surfaces.

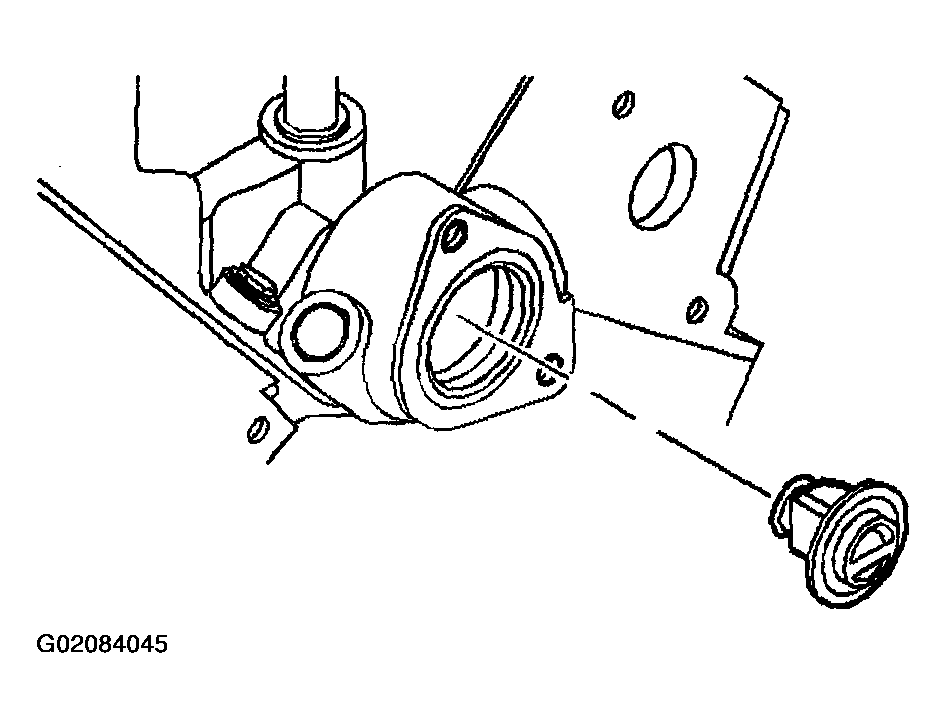

    Fig 3: Removing Thermostat
    G02084045Courtesy of GENERAL MOTORS CORP.
