Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the thermostat.

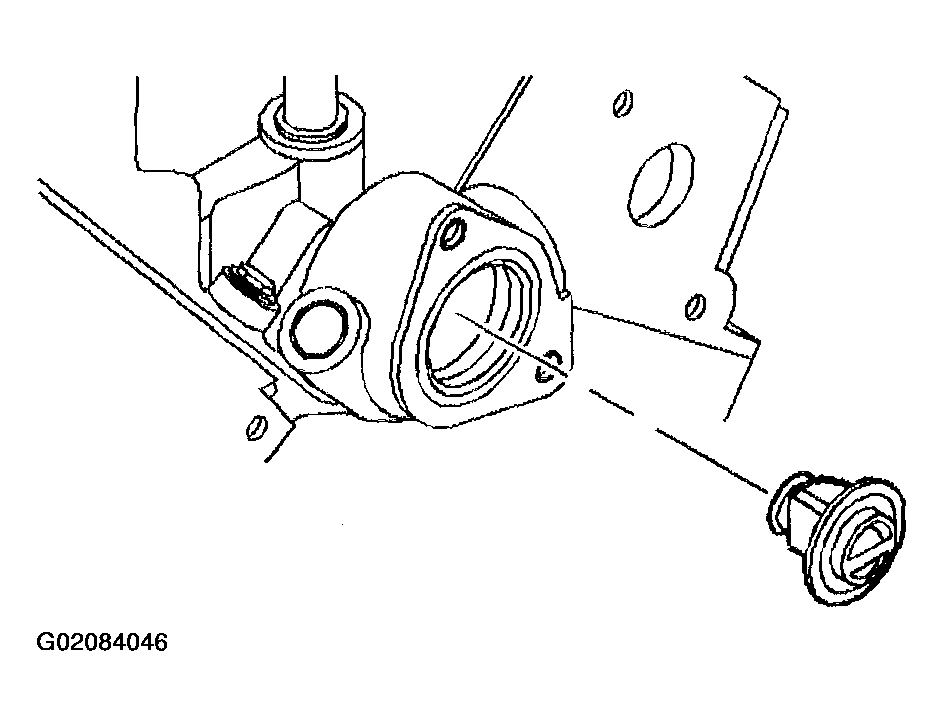

    Fig 1: Installing Thermostat
    G02084046Courtesy of GENERAL MOTORS CORP.
  2. Install the water outlet gasket and the water outlet housing.

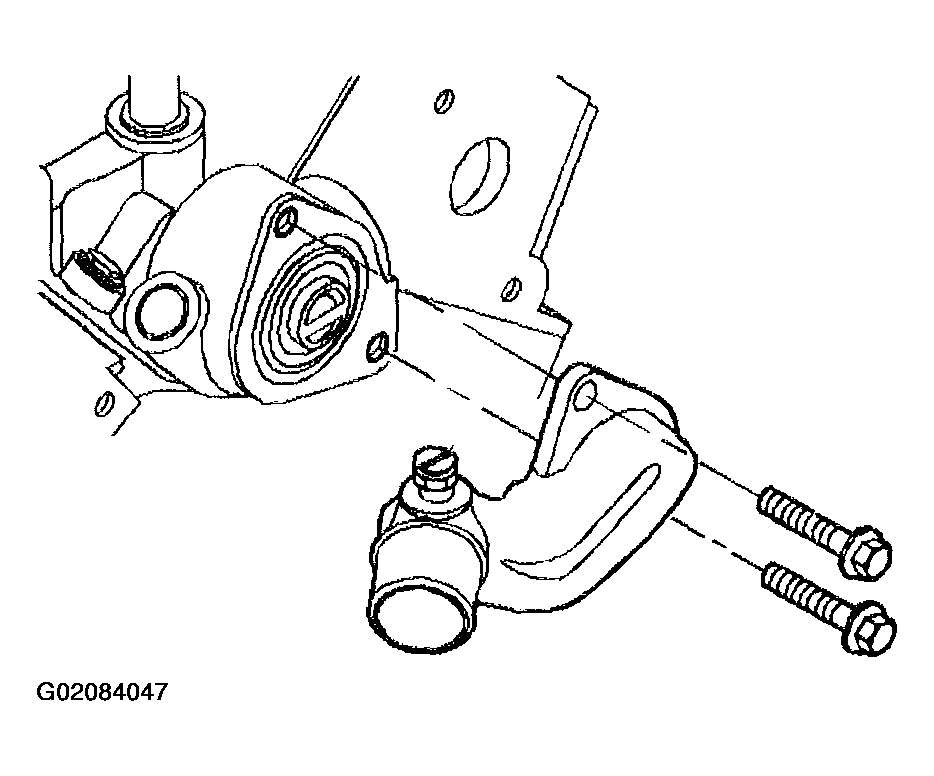

    Fig 2: Installing Water Outlet Housing
    G02084047Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the water outlet housing bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  4. Install the exhaust crossover pipe. Refer to ENGINE EXHAUST SYSTEM or EXHAUST CROSSOVER PIPE REPLACEMENT (3.8L) in Engine Exhaust.
  5. Install the radiator inlet hose to the water outlet housing.
  6. Use the J 38185  in order to reposition and install the hose clamp to the water outlet housing.

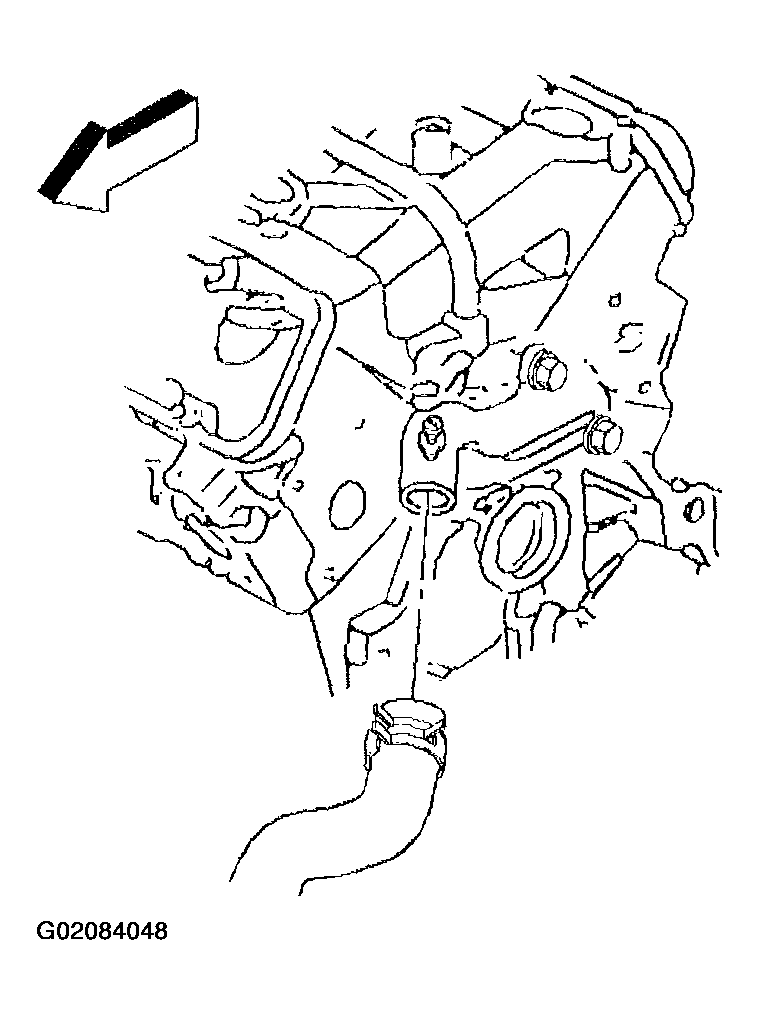

    Fig 3: Installing Radiator Inlet Hose To Water Outlet Housing
    G02084048Courtesy of GENERAL MOTORS CORP.
  7. Install the air cleaner intake duct.
  8. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .
