Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Align the marks on the hose. Install the radiator outlet hose to the water pump housing.
Use J 38185 in order to reposition the hose clamp to the water pump housing.
Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.

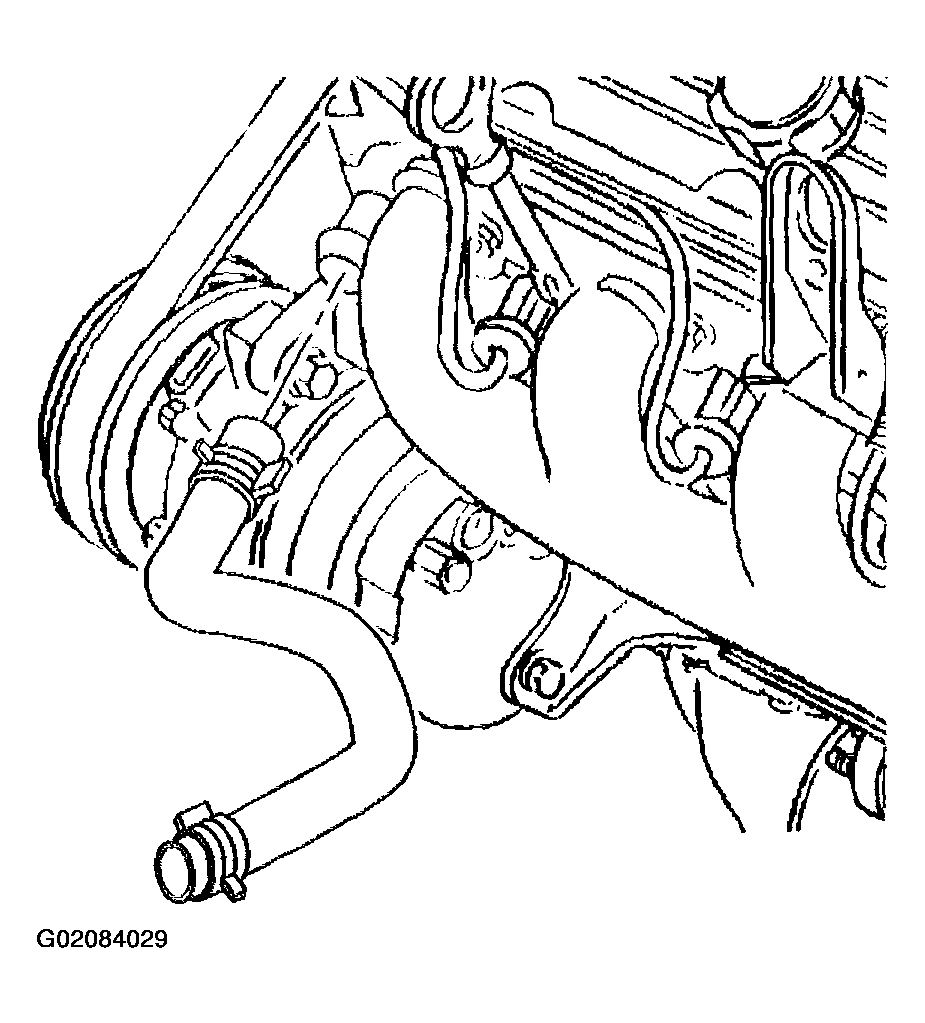

Fig 1: Installing Radiator Outlet Hose To Water Pump Housing
Courtesy of GENERAL MOTORS CORP.
Install the radiator hose (3) onto the outlet port (2) of the radiator.
Use J 38185 in order to reposition the hose clamp to the radiator.
Install the lower air deflector. Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT - LOWER .
Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

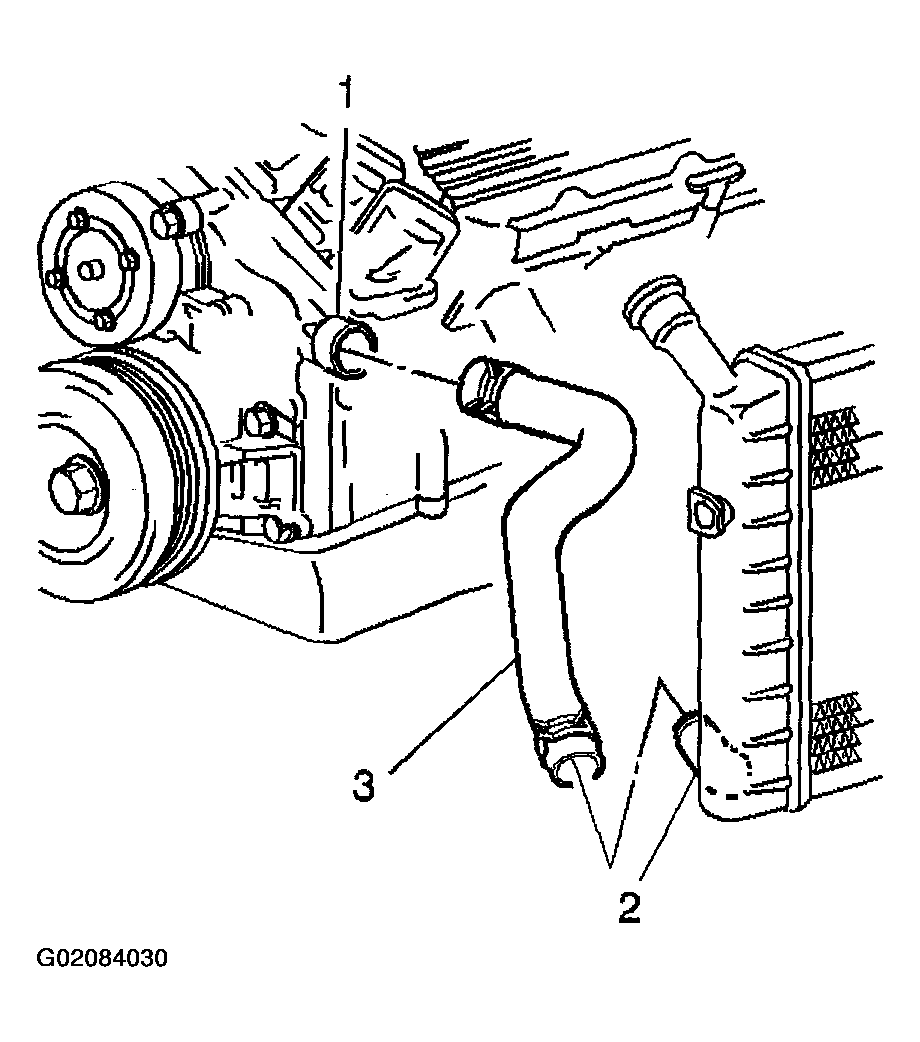

Fig 2: Installing Radiator Hose To Radiator
Courtesy of GENERAL MOTORS CORP.
