Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the marks on the radiator hose. Install the outlet hose to the radiator.
  2. Use J 38185  in order to reposition and install the hose clamp to the radiator.
  3. Install the lower air deflector. Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT - LOWER  .

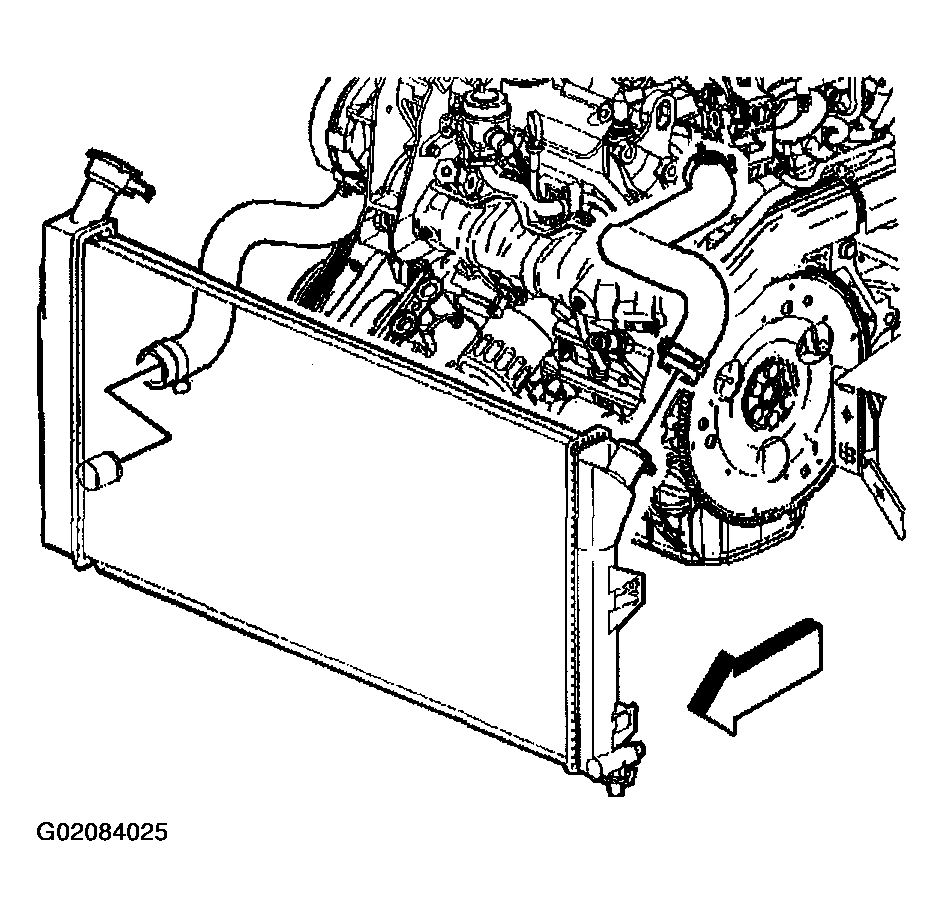

    Fig 1: Installing Outlet Hose To Radiator
    G02084025Courtesy of GENERAL MOTORS CORP.
  4. Align the marks on the radiator hose. Install the radiator outlet hose (3) to the water pump housing (1).
  5. Use J 38185  in order to reposition the hose clamp to the water pump housing.
  6. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .

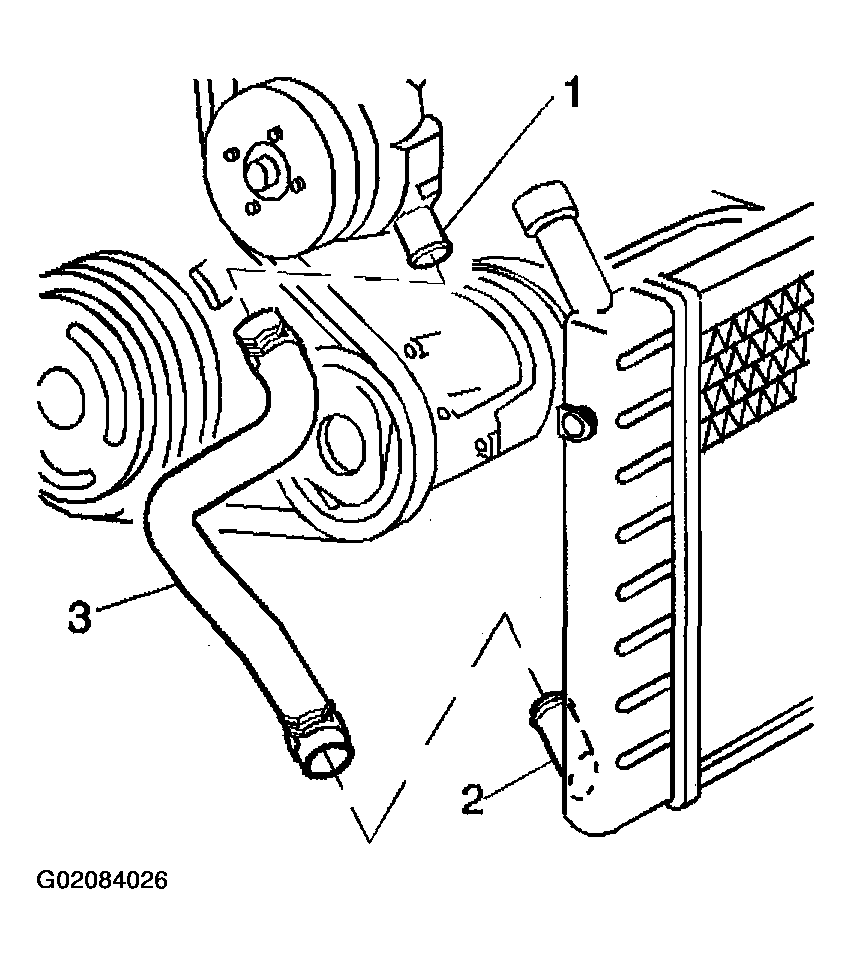

    Fig 2: Installing Radiator Outlet Hose To Water Pump Housing
    G02084026Courtesy of GENERAL MOTORS CORP.
