Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Align the marks on the hose and install the radiator inlet hose into position.
Install the radiator inlet hose to the water outlet housing.
Use J 38185 in order to reposition and install the hose clamp to the water outlet housing.

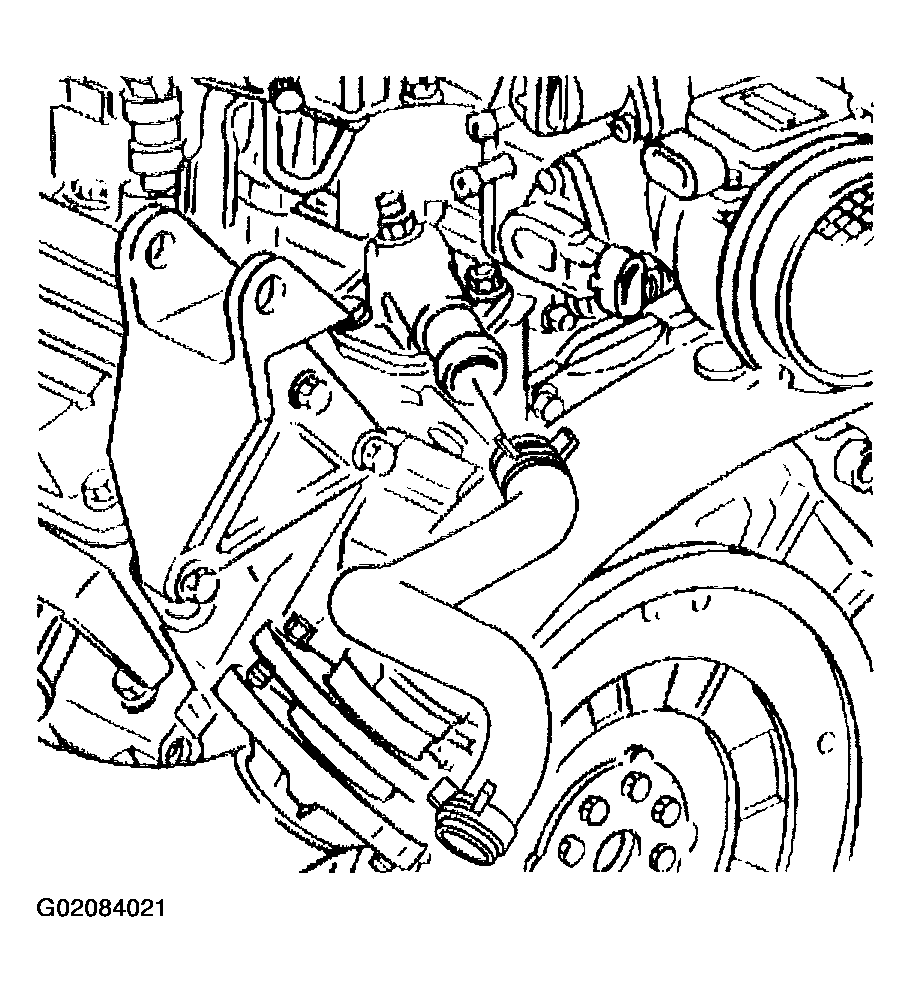

Fig 1: Installing Radiator Inlet Hose To Water Outlet Housing
Courtesy of GENERAL MOTORS CORP.
Install the radiator inlet hose to the radiator.
Use J 38185 in order to reposition and install the hose clamp to the radiator.
Install the left diagonal brace. Refer to BRACE REPLACEMENT - FRONT FENDER UPPER DIAGONAL in Body Front End.
Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

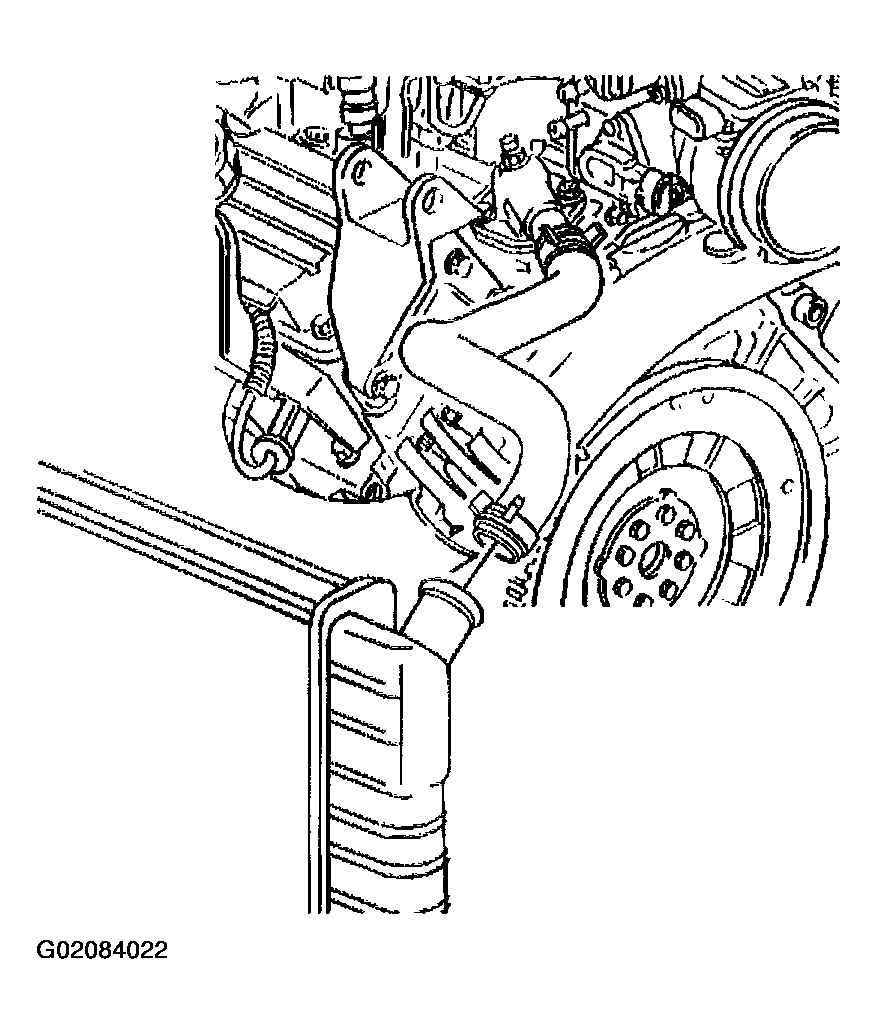

Fig 2: Installing Radiator Inlet Hose To Radiator
Courtesy of GENERAL MOTORS CORP.
