Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Partially drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
Remove the left diagonal brace. Refer to BRACE REPLACEMENT - FRONT FENDER UPPER DIAGONAL in Body Front End.
Use J 38185 in order to reposition the hose clamp from the water outlet housing.
Remove the radiator inlet hose from the water outlet housing.

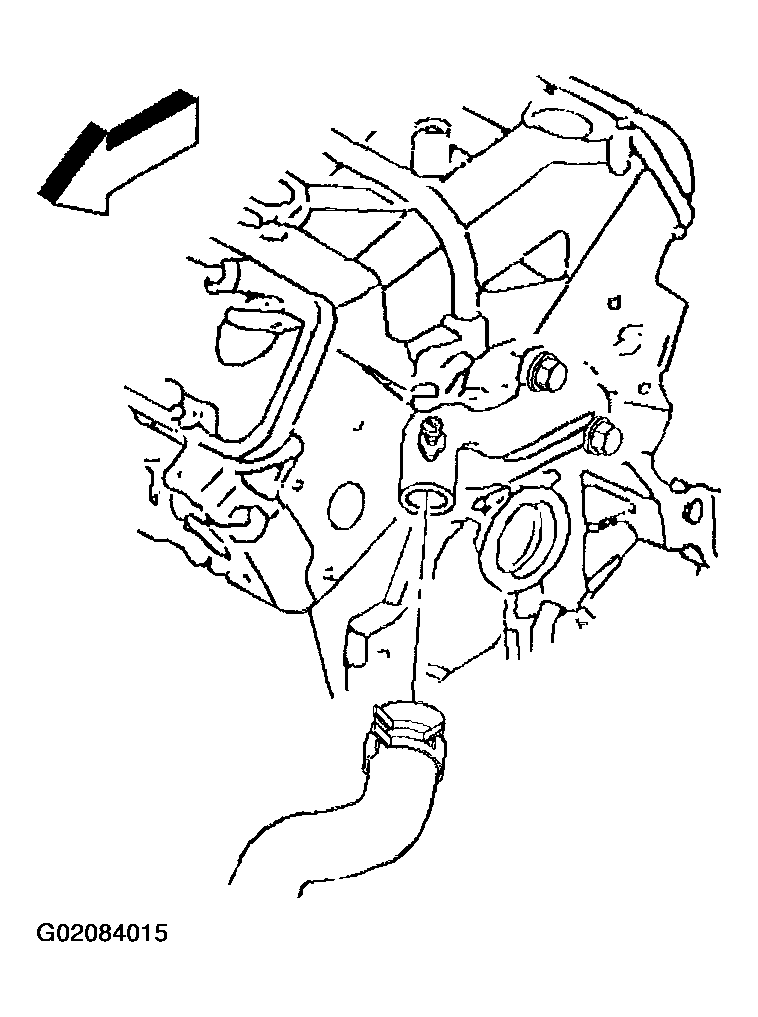

Fig 1: Removing Radiator Inlet Hose From Water Outlet Housing
Courtesy of GENERAL MOTORS CORP.
Use J 38185 in order to reposition the hose clamp from the radiator.
Remove the radiator inlet hose from the radiator and the vehicle.

Fig 2: Removing Radiator Inlet Hose From Radiator And Vehicle
Courtesy of GENERAL MOTORS CORP.
