Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right and left side air baffle (1).
  2. Install the retainers for the right and left side air baffle (1).
  3. Install the upper radiator air baffle (2). Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT - UPPER  .

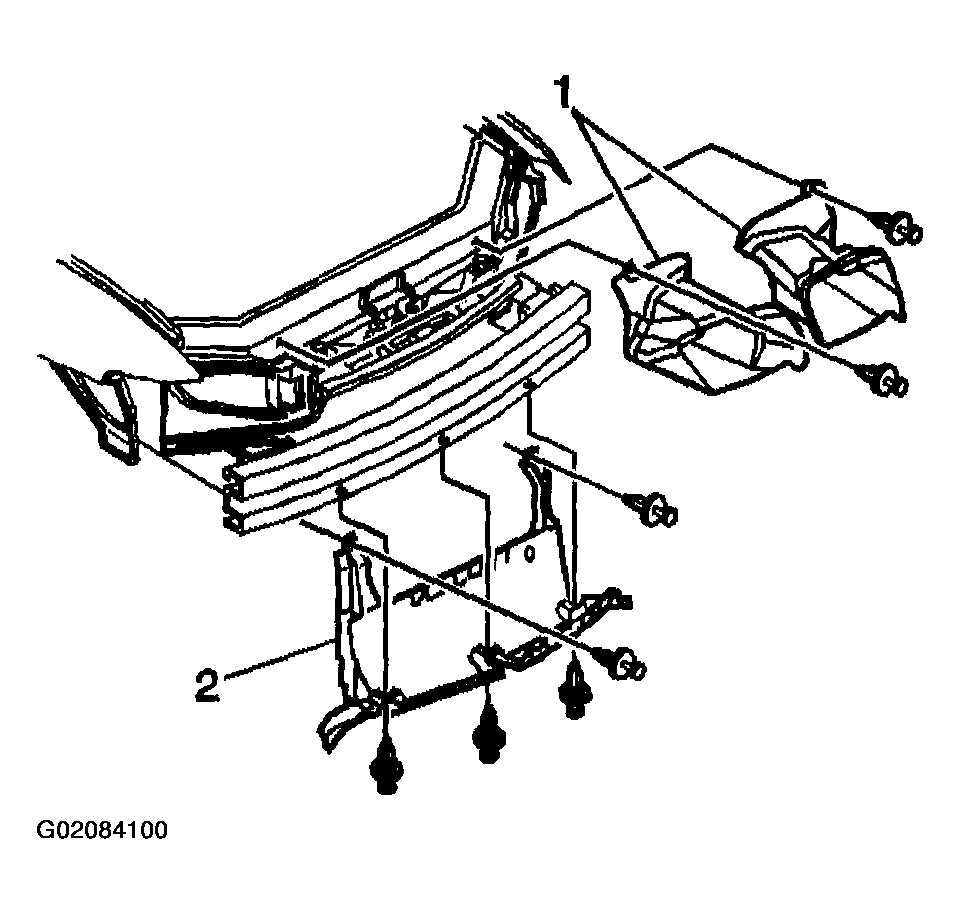

    Fig 1: Installing Right And Left Side Air Baffle
    G02084100Courtesy of GENERAL MOTORS CORP.
