Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the radiator lower air deflector bolts and retainers.
  3. Disengage the deflector from the retainer at the center of radiator opening air baffle, as shown.
  4. Remove the radiator lower air deflector.

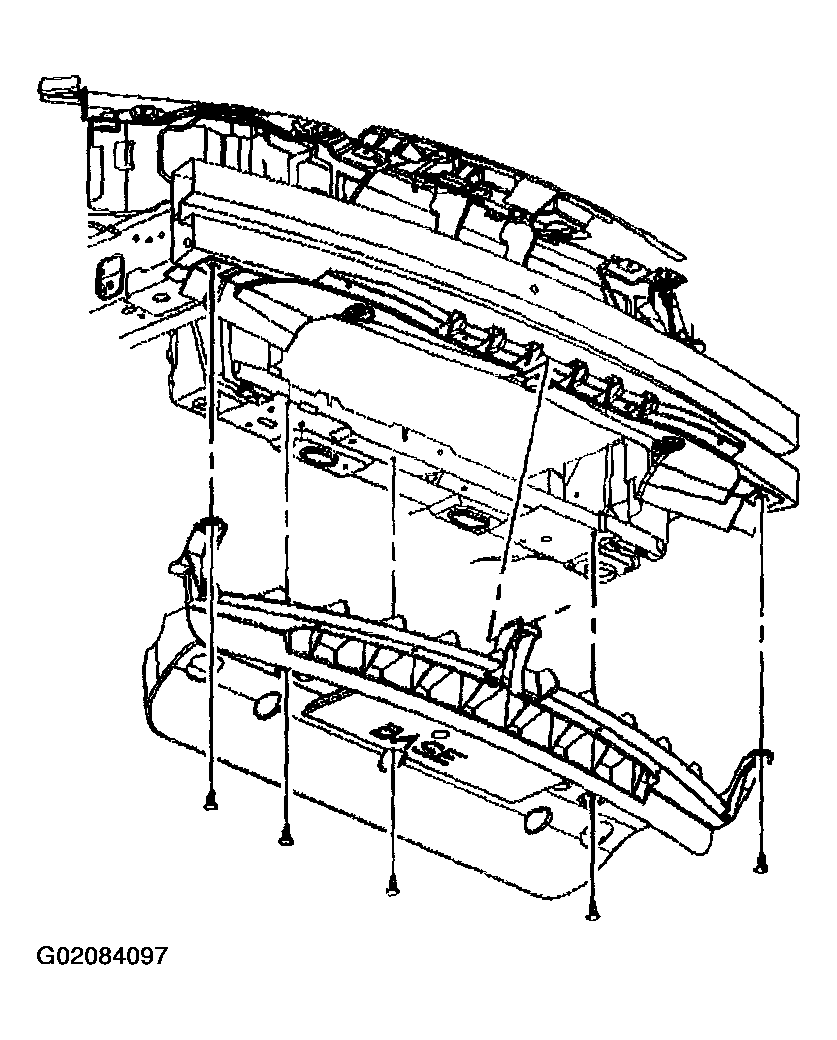

    Fig 1: Removing Radiator Lower Air Deflector
    G02084097Courtesy of GENERAL MOTORS CORP.
