Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine cooling fan motor.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the cooling fan motor bolts.

    Tighten

    Tighten the bolts to 6 N.m (53 lb in).

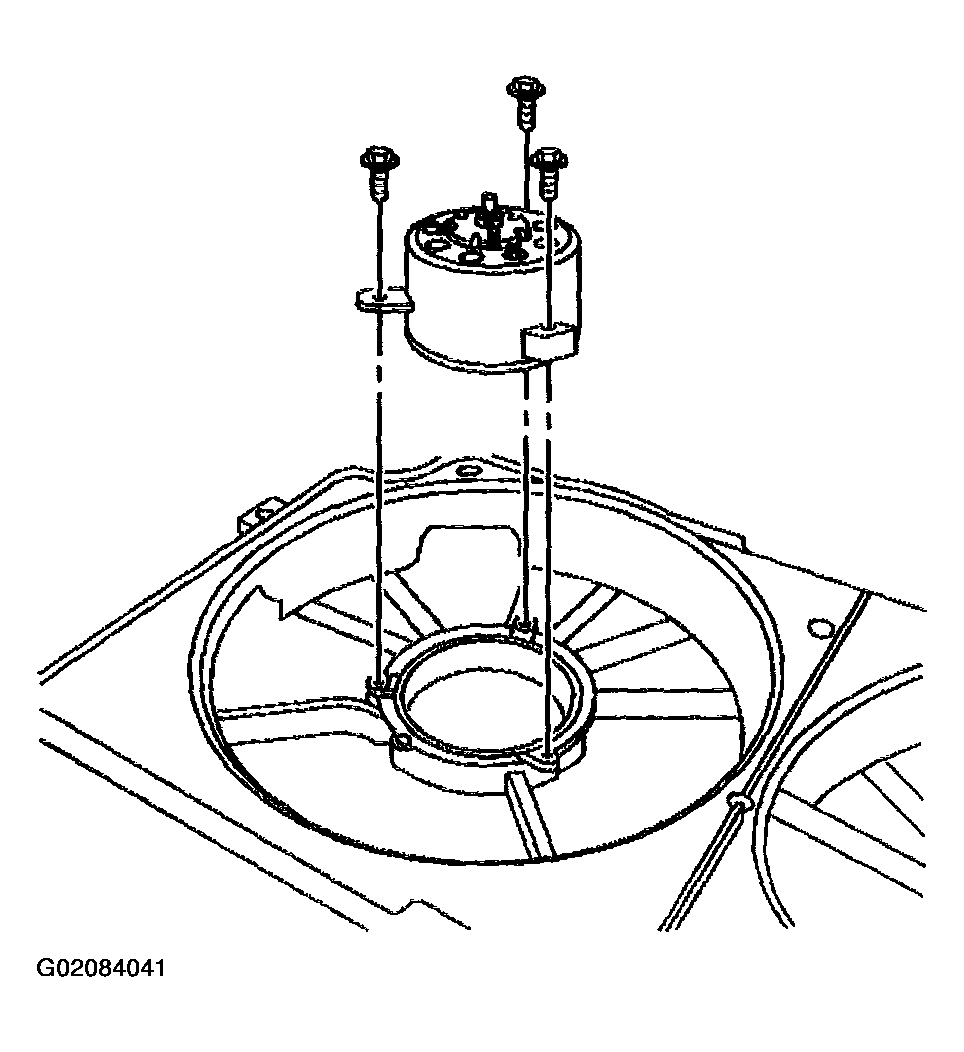

    Fig 1: Installing Engine Cooling Fan Motor
    G02084041Courtesy of GENERAL MOTORS CORP.
  3. Install the engine cooling fan blade.
  4. Install the engine cooling fan blade nut.

    Tighten

    Tighten the nut to 6 N.m (53 lb in).

  5. Connect the engine cooling fan motor electrical connector.
  6. Install the engine cooling fan assembly. Refer to COOLING FAN REPLACEMENT - ELECTRIC  .

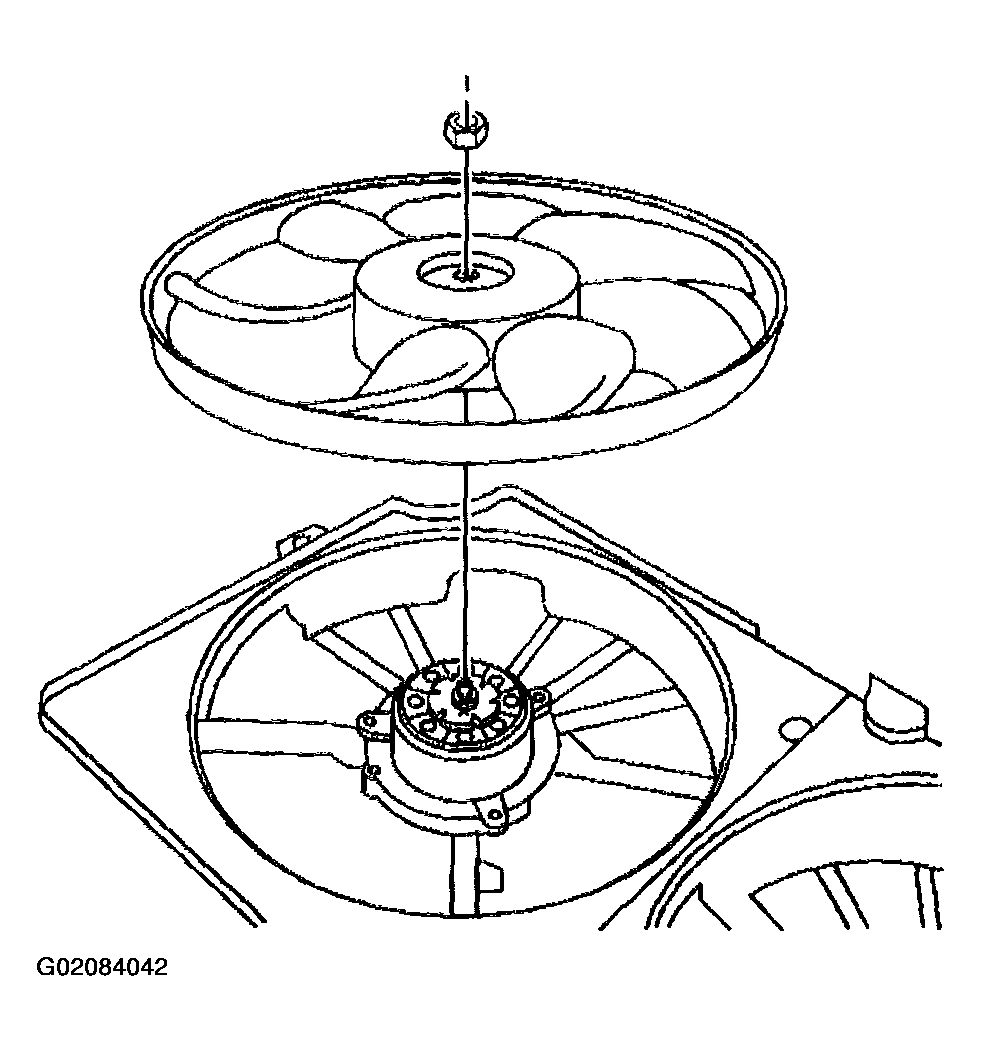

    Fig 2: Installing Engine Cooling Fan Blade
    G02084042Courtesy of GENERAL MOTORS CORP.
