Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reposition the coolant reservoir hose clamp (1) at the radiator overflow fitting.
  2. Remove the coolant reservoir hose from the radiator overflow fitting.
  3. Remove the nuts (2) from the shock tower studs.
  4. Remove the coolant recovery reservoir (3) from the lower retainer and the shock tower studs.
  5. Drain the coolant from recovery reservoir in to a clean container.

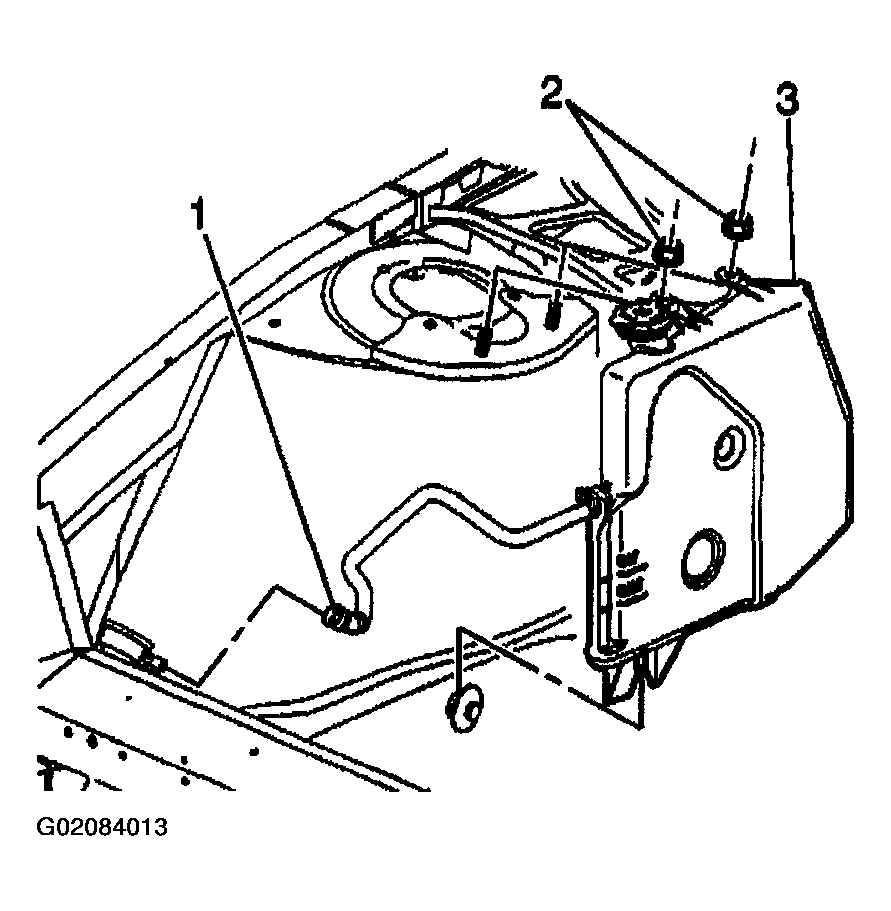

    Fig 1: Removing Coolant Reservoir Hose
    G02084013Courtesy of GENERAL MOTORS CORP.
