Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil indicator tube to the engine. Ensure that the O-ring is in place. Ensure that the oil level indicator tube is fully seated in the engine.
  2. Slide the oil indicator tube bracket onto the exhaust manifold stud.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the oil level indicator tube bracket nut on the exhaust manifold stud.

    Tighten

    Tighten the nut to 19 N.m (14 lb ft).

  4. Install the oil level indicator.

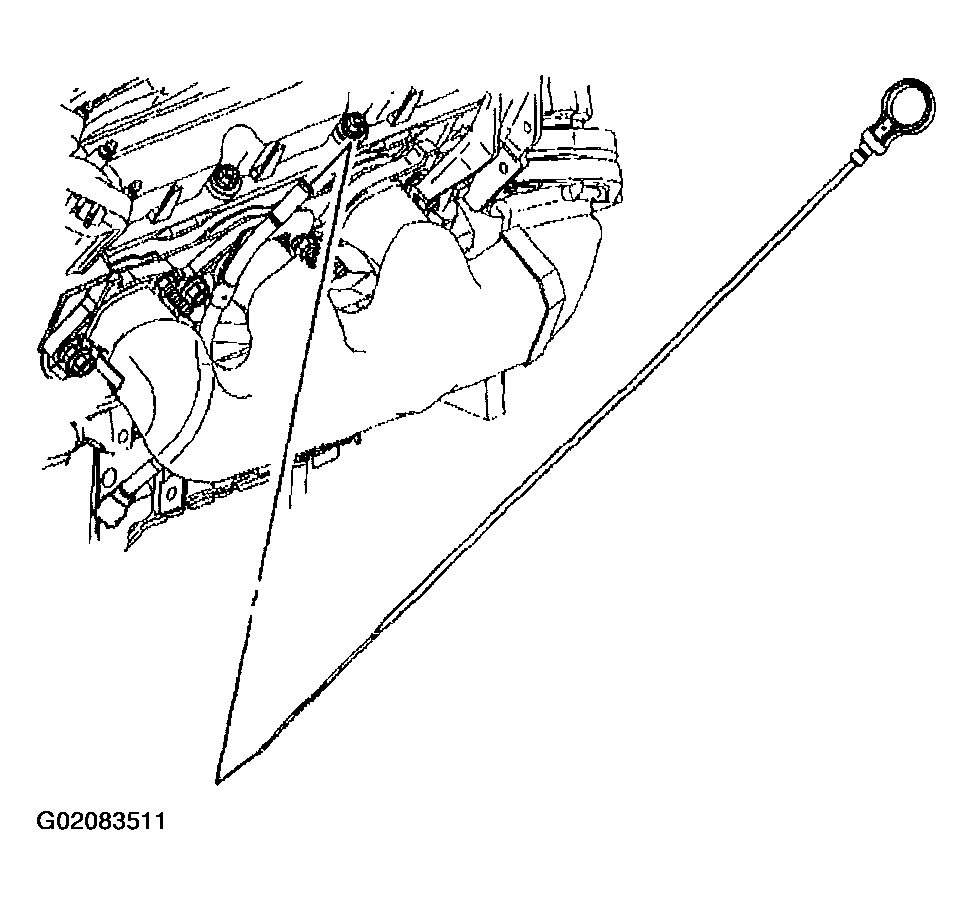

    Fig 1: Installing Oil Indicator Tube To Engine
    G02083511Courtesy of GENERAL MOTORS CORP.
