Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the hood.
  2. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  3. Install the engine support adapters J 28467-90A  onto the strut attaching studs.

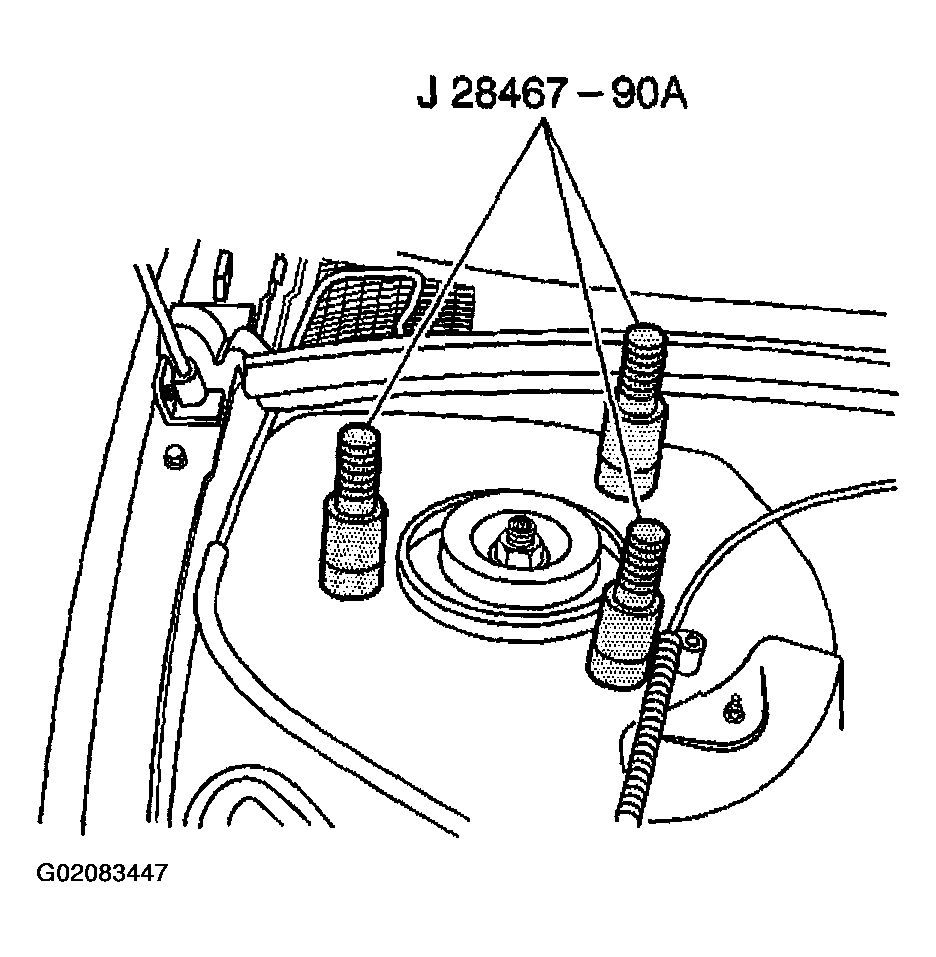

    Fig 1: Installing Engine Support Adapters Onto Strut Attaching Studs
    G02083447Courtesy of GENERAL MOTORS CORP.
  4. Install the strut tower support assemblies J 28467-5A over the engine support adapters J 28467-90A  .

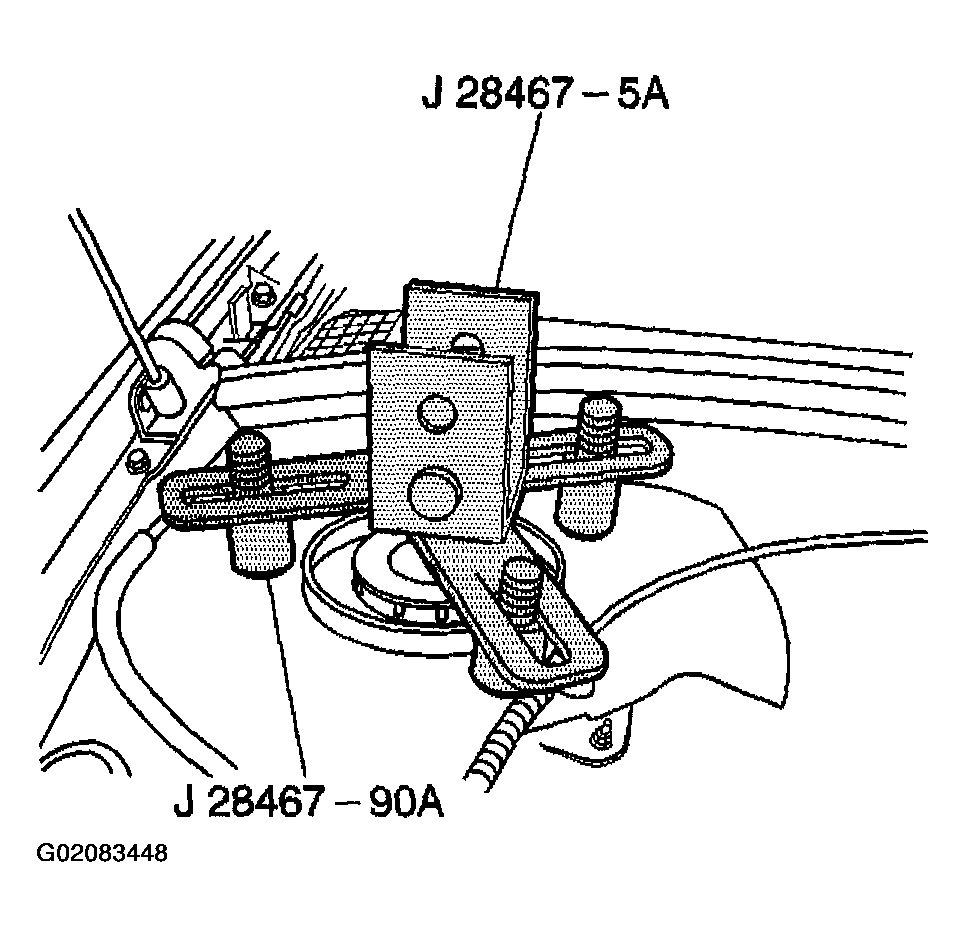

    Fig 2: Installing Strut Tower Support Assemblies Over Engine Support Adapters
    G02083448Courtesy of GENERAL MOTORS CORP.
  5. Install the wing nuts to the engine support adapters J 28467-90A  .

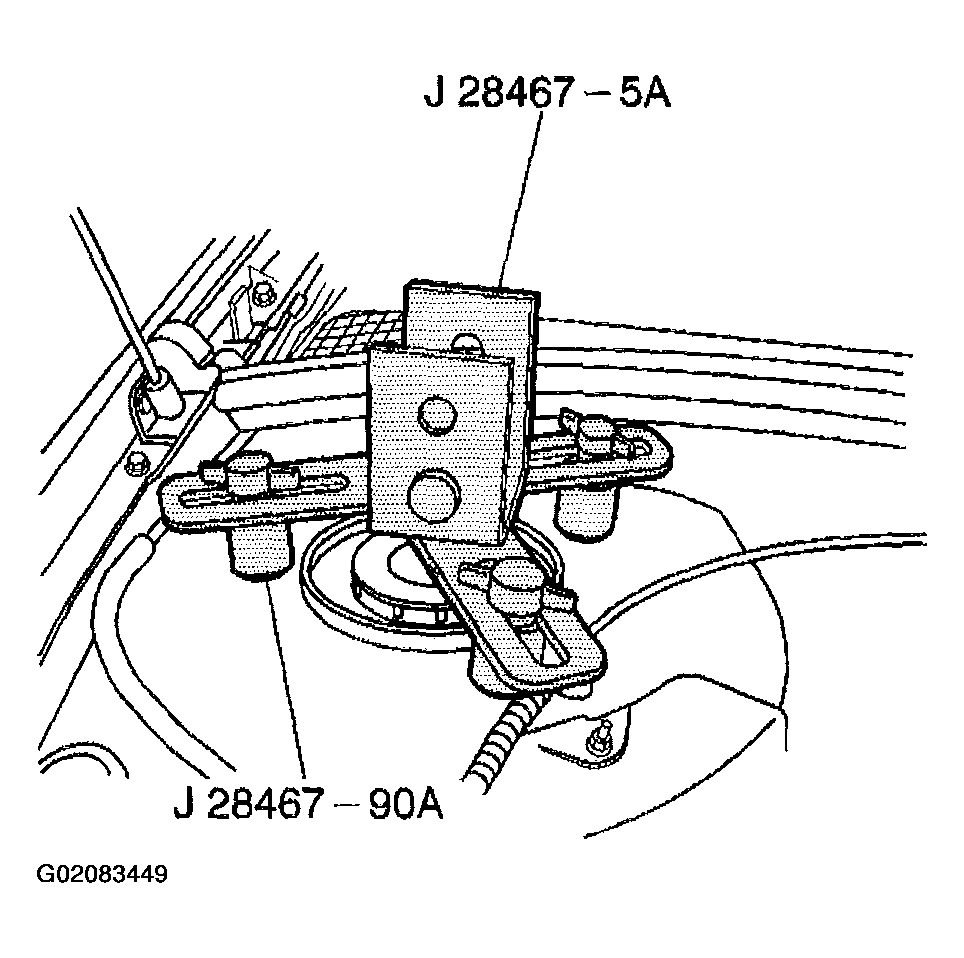

    Fig 3: Installing Wing Nuts To Engine Support Adapters
    G02083449Courtesy of GENERAL MOTORS CORP.
  6. Install the strut tower tube J 28467-3 into the strut tower support assemblies J 28467-5A.

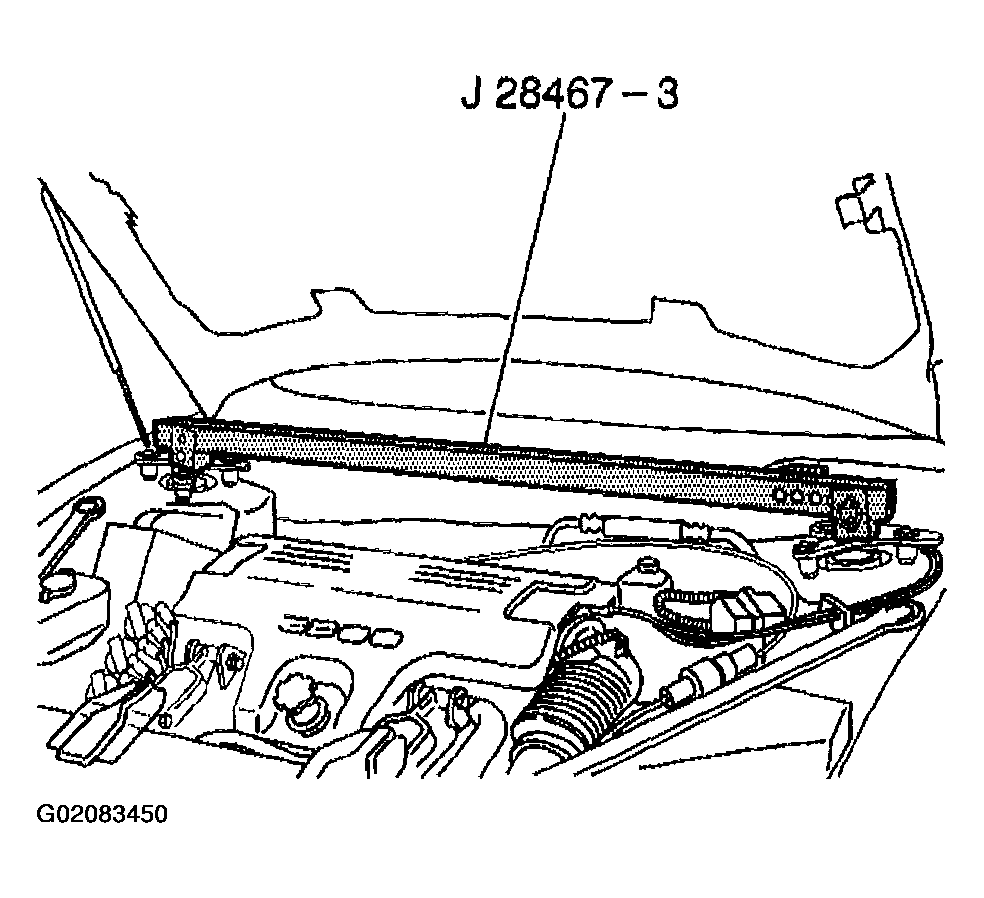

    Fig 4: Installing Strut Tower Tube Into Strut Tower Support Assemblies
    G02083450Courtesy of GENERAL MOTORS CORP.
  7. Install the 1/2 inch x 2.5 inch quick release pin J 28467-10 through the strut tower support assemblies J 28467-5A and the strut tower tube J 28467-3 on one side only.

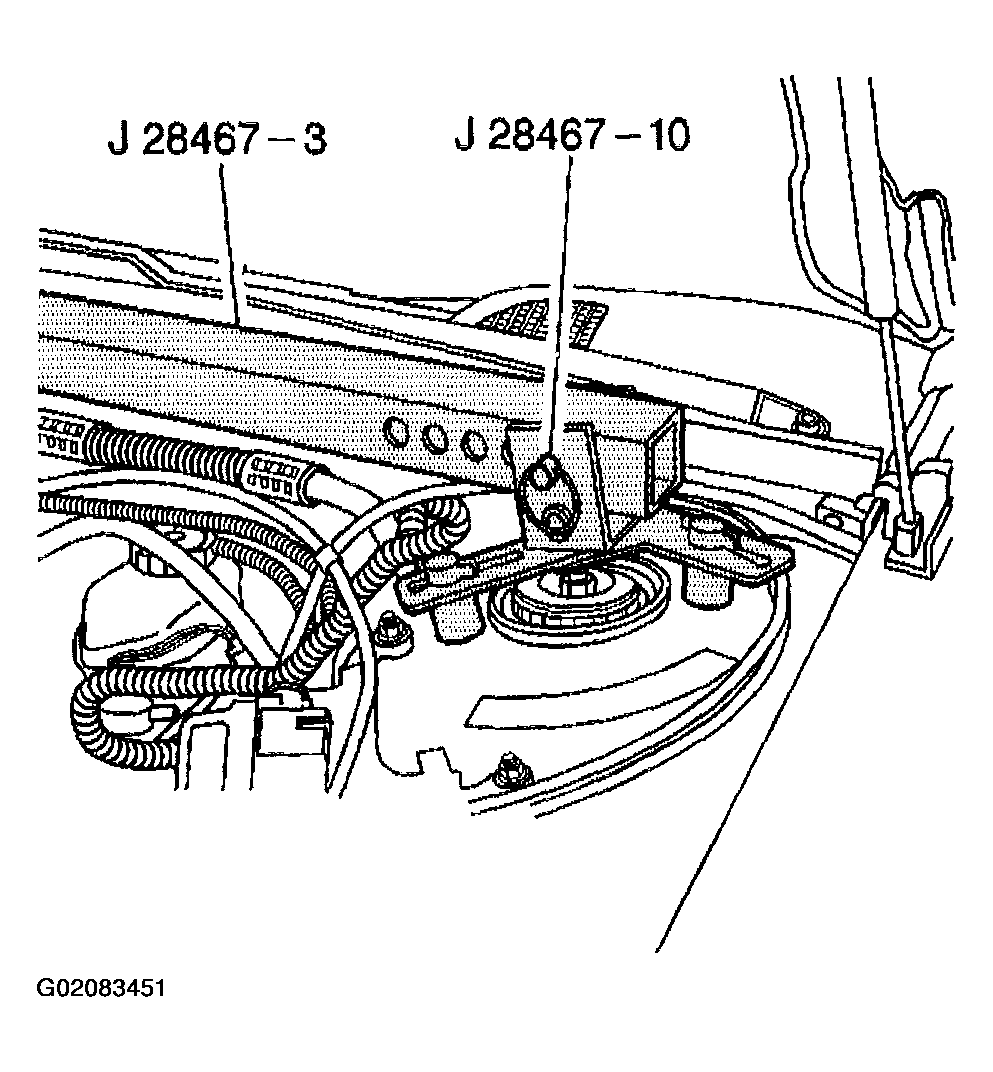

    Fig 5: Installing Quick Release Pin
    G02083451Courtesy of GENERAL MOTORS CORP.
  8. Install the radiator shelf tube J 28467-2A on the top of the strut tower tube J 28467-3 on the driver side.
  9. Install the round tube of the front support assembly J 28467-4A through the large hole in the radiator shelf tube J 28467-2A.

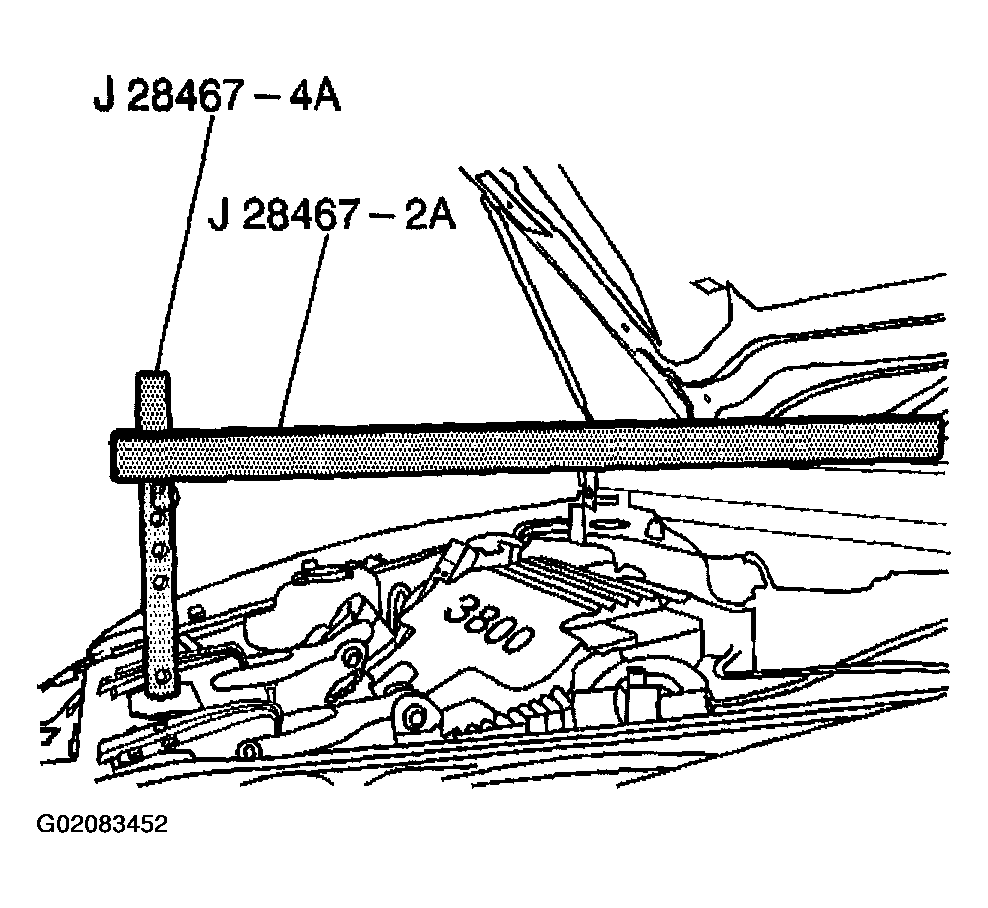

    Fig 6: Installing Radiator Shelf Tube On Top Of Strut Tower Tube
    G02083452Courtesy of GENERAL MOTORS CORP.
  10. Install the 7/16 inch x 2.0 inch quick release pin J 28467-9 through the hole in the front support assembly J 28467-4A in order to level the radiator shelf tube J 28467-2A.

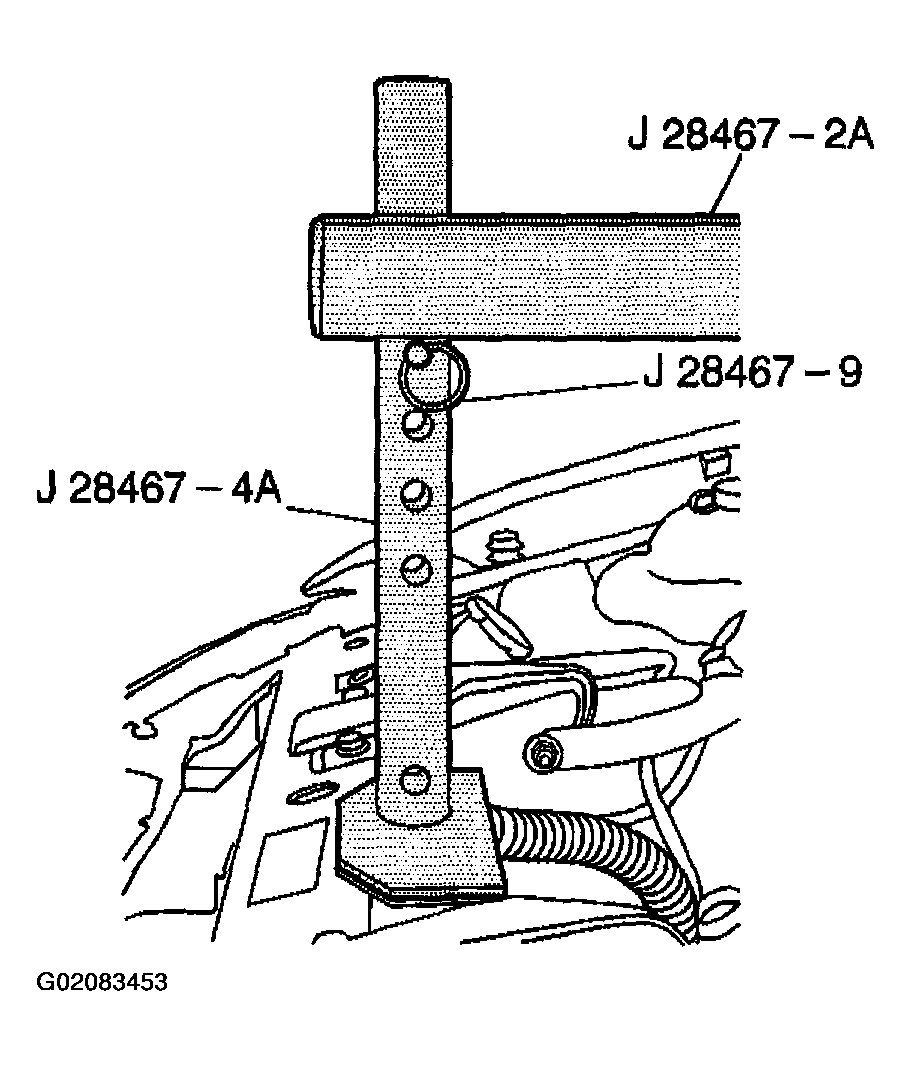

    Fig 7: Installing Quick Release Pin
    G02083453Courtesy of GENERAL MOTORS CORP.
  11. Install the cross bracket assembly J 28467-1A.
  12. Install the lift hook J 28467-7A through the lift hook bracket J 28467-6A.
  13. Install the 1/2 inch lift hook washer and lift hook wing nut J 28467-34 onto the lift hook J 28467-7A.
  14. Install the assembled lift hook bracket J 28467-6A over the passenger side radiator shelf tube J 28467-2A.

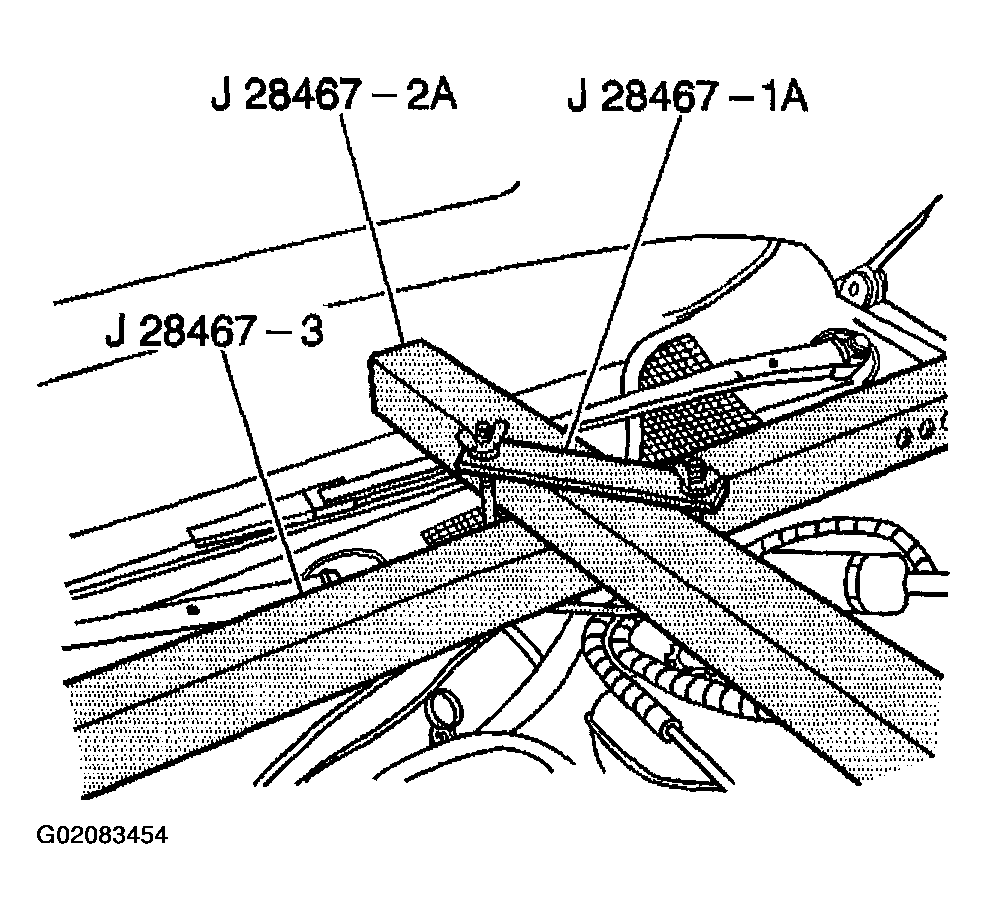

    Fig 8: Installing Cross Bracket Assembly
    G02083454Courtesy of GENERAL MOTORS CORP.
  15. Adjust the passenger side radiator shelf tube J 28467-2A and the assembled lift hook bracket J 28467-6A in order to align the hook with the left, rear of engine, lift hook bracket attached to the left exhaust manifold.
  16. Install the lift hook J 28467-7A through the lift hook bracket J 28467-6A.
  17. Install the 1/2 inch lift hook washer and lift hook wing nut J 28467-34 onto the lift hook J 28467-7A.
  18. Install the assembled lift hook bracket J 28467-6A over the strut tower tube J 28467-3.

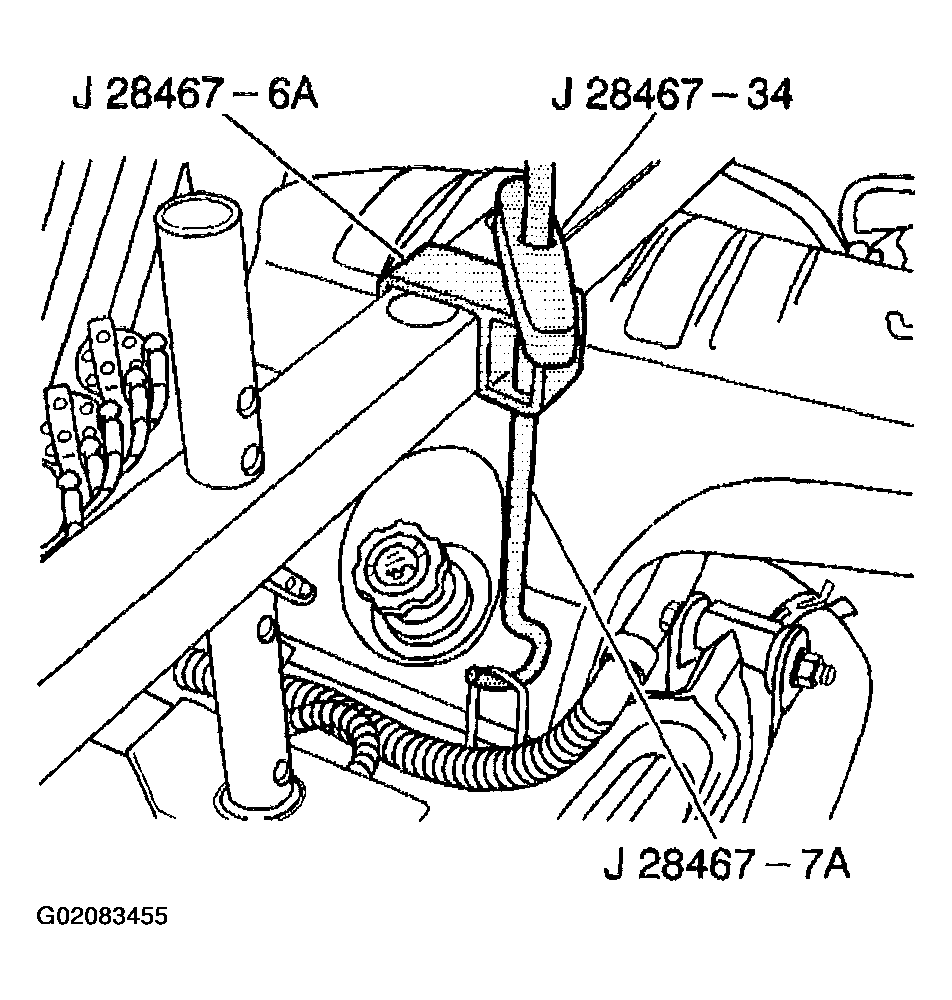

    Fig 9: Installing Lift Hook Bracket Over Strut Tower Tube
    G02083455Courtesy of GENERAL MOTORS CORP.
  19. Adjust the assembled swivel lift hook bracket J 28467-8A in order to align the hook with the right, front of engine, lift hook bracket attached to the right exhaust manifold.

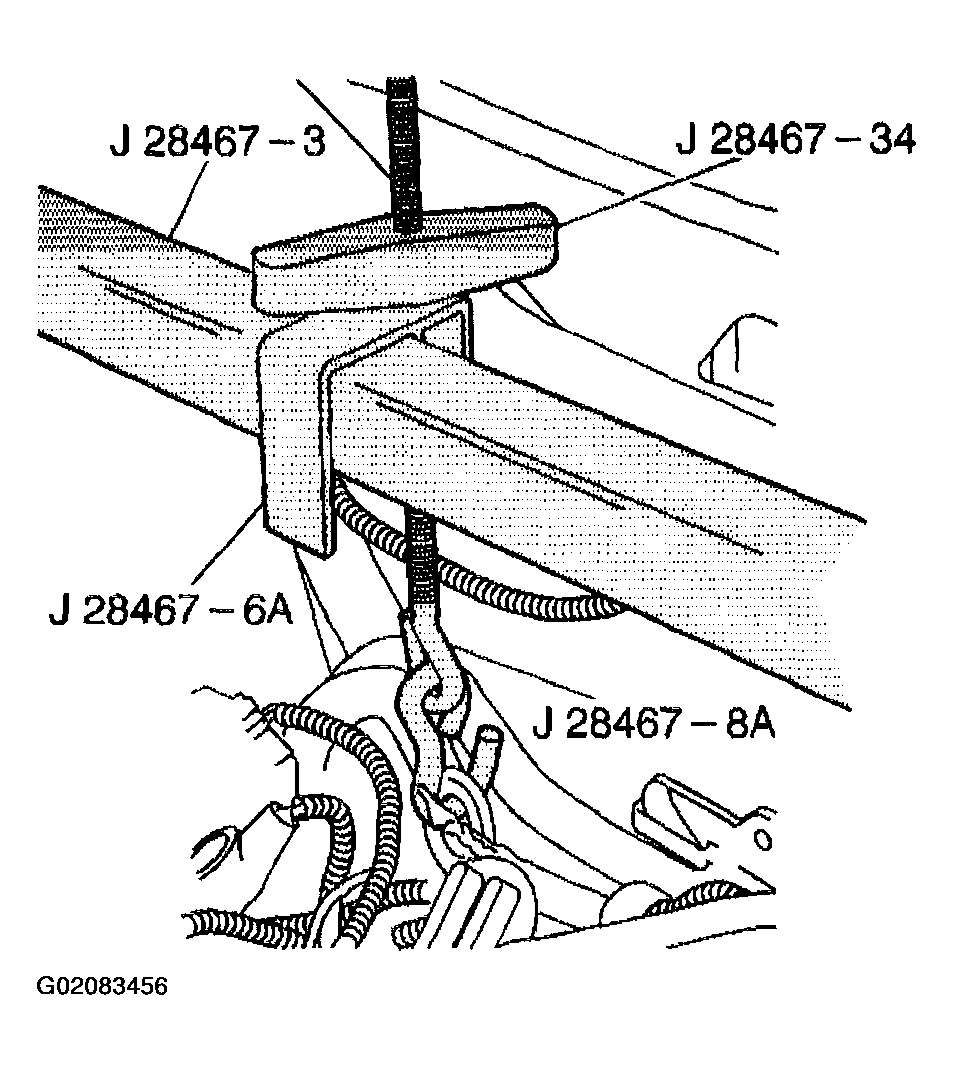

    Fig 10: Adjusting Swivel Lift Hook Bracket
    G02083456Courtesy of GENERAL MOTORS CORP.
  20. Hand tighten the cross bracket assembly J 28467-1A wing nuts.
  21. Hand tighten the lift hook wing nuts J 28467-34 securely to remove all slack from the engine support fixture assembly.

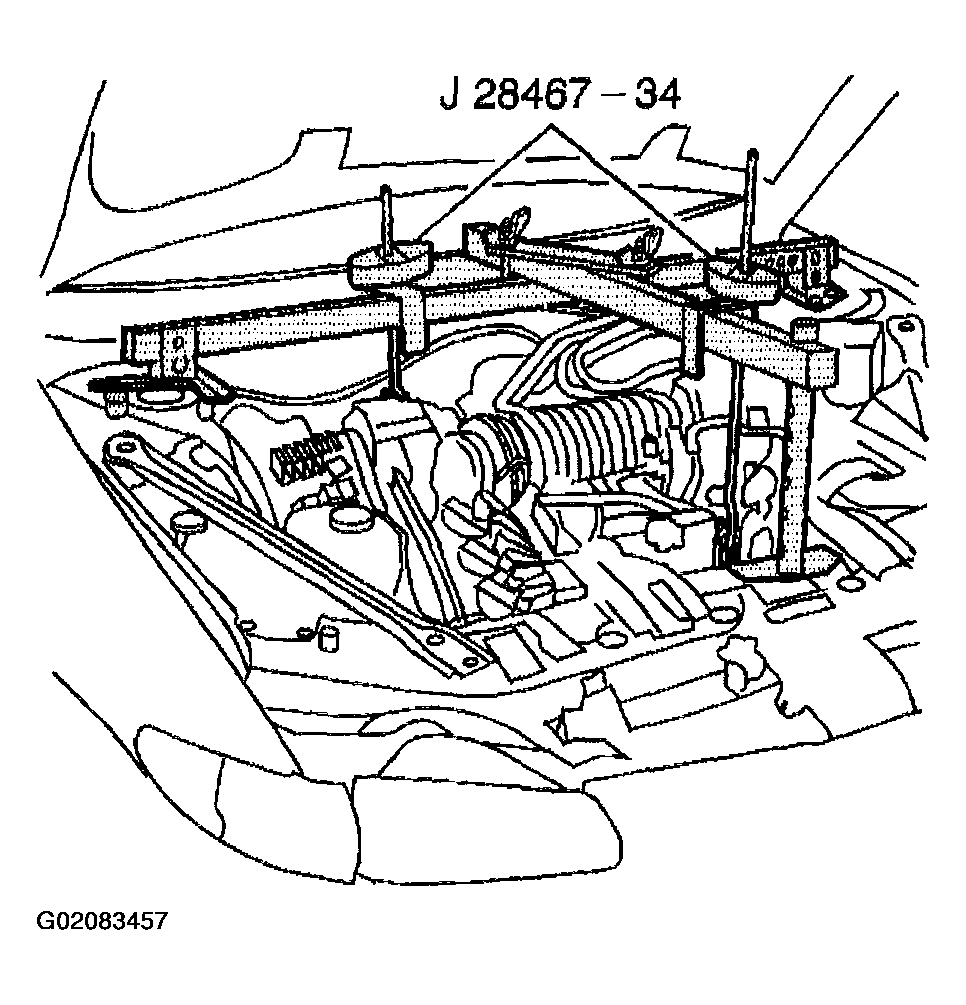

    Fig 11: Tightening Lift Hook Wing Nuts
    G02083457Courtesy of GENERAL MOTORS CORP.
