Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Disconnect the engine oil pressure sensor electrical connector.
  3. Remove the engine oil pressure sensor.

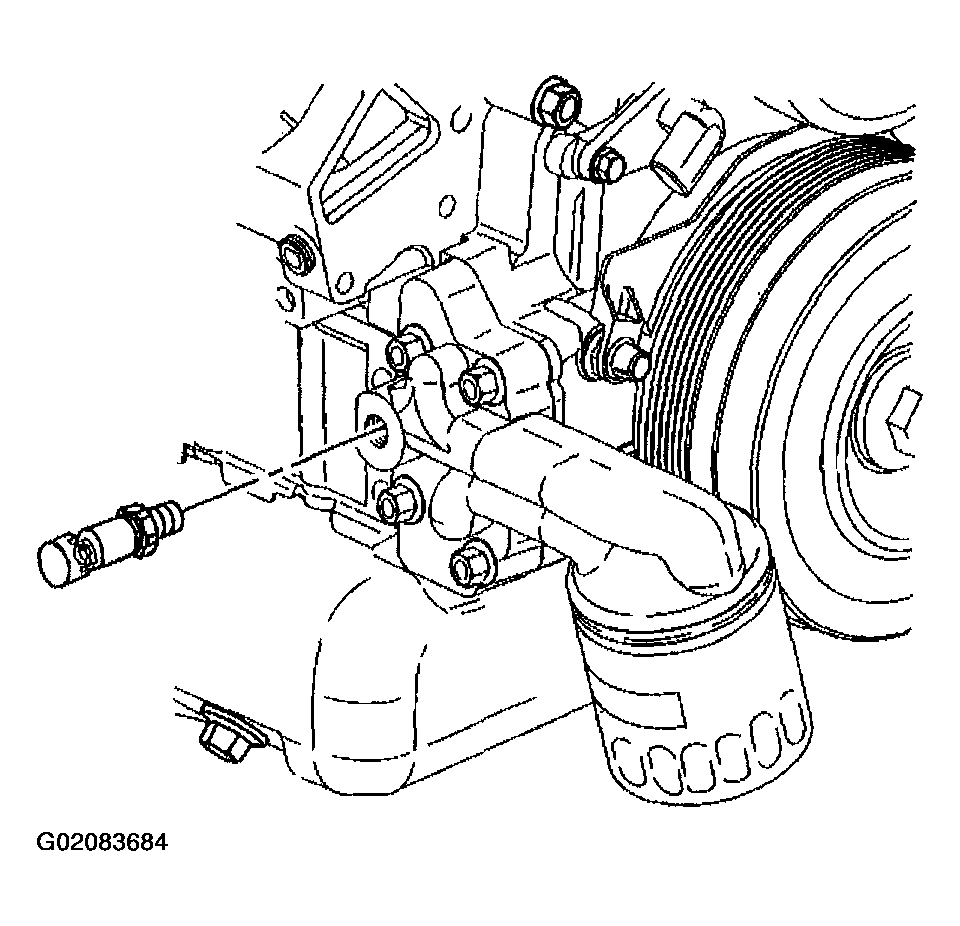

    Fig 1: Removing Engine Oil Pressure Sensor
    G02083684Courtesy of GENERAL MOTORS CORP.
