Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount strut.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt and the nut to the right engine mount strut at the right engine mount strut bracket on the upper radiator support.

    Tighten

    Tighten the engine mount strut bolt to 48 N.m (35 lb ft).

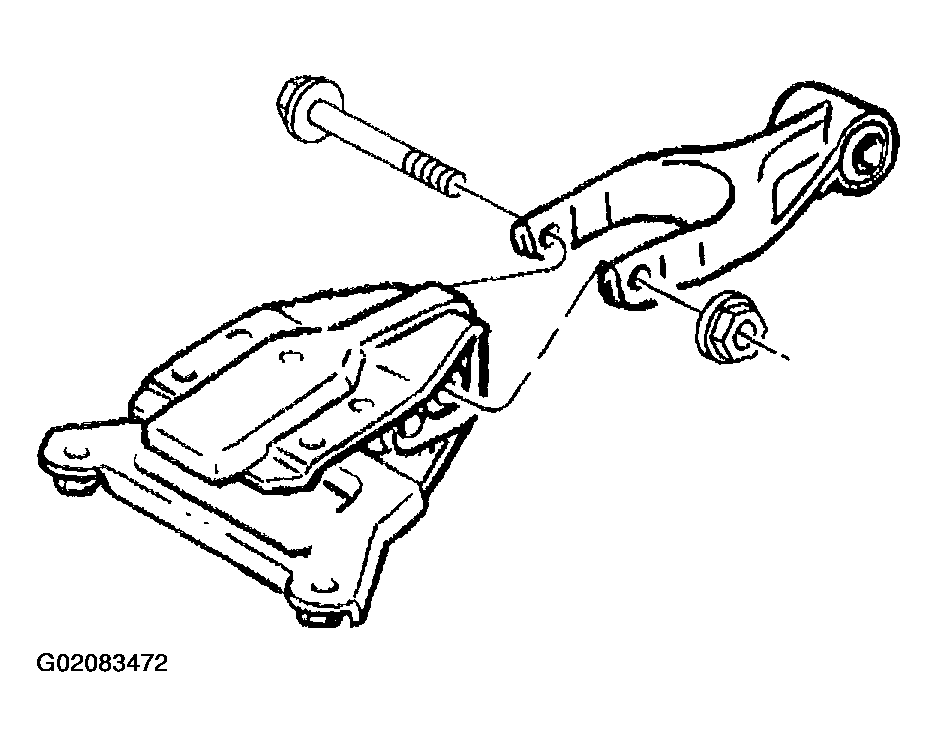

    Fig 1: Installing Bolt And Nut To Right Engine Mount Strut
    G02083472Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt and the nut to the right engine mount strut at the right engine mount strut bracket on the engine.

    Tighten

    Tighten the engine mount strut nut to 48 N.m (35 lb ft).

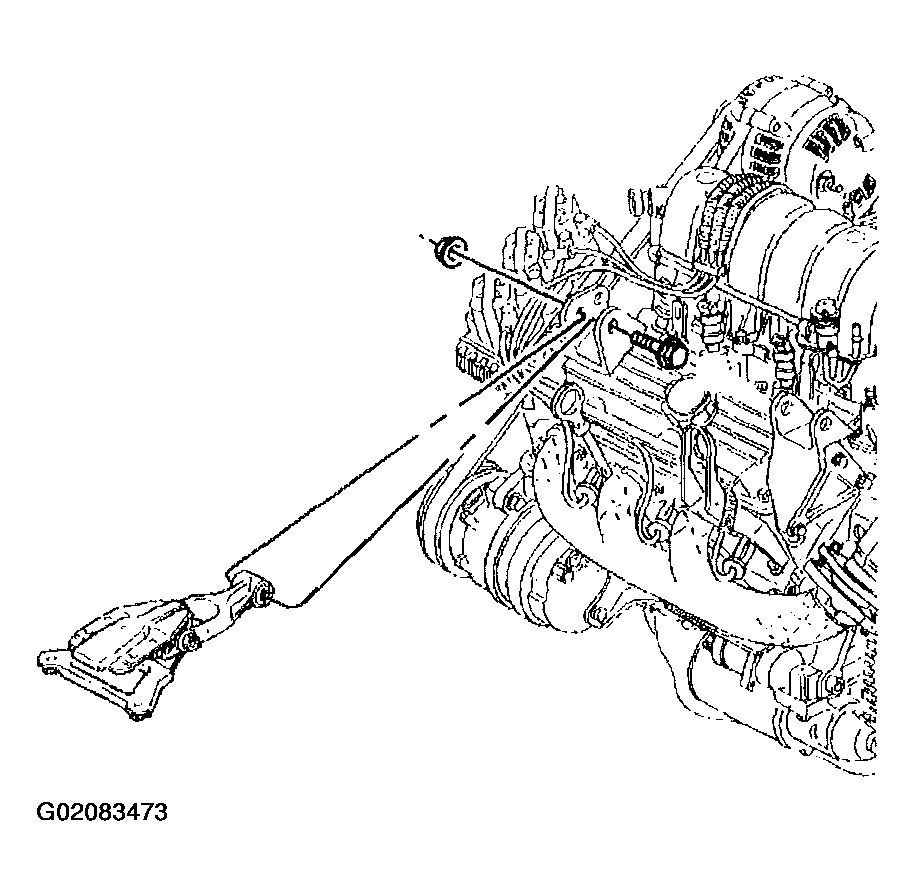

    Fig 2: Installing Right Engine Mount Strut
    G02083473Courtesy of GENERAL MOTORS CORP.
