Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt and the nut from the left engine mount strut at the left engine mount strut bracket on the engine.

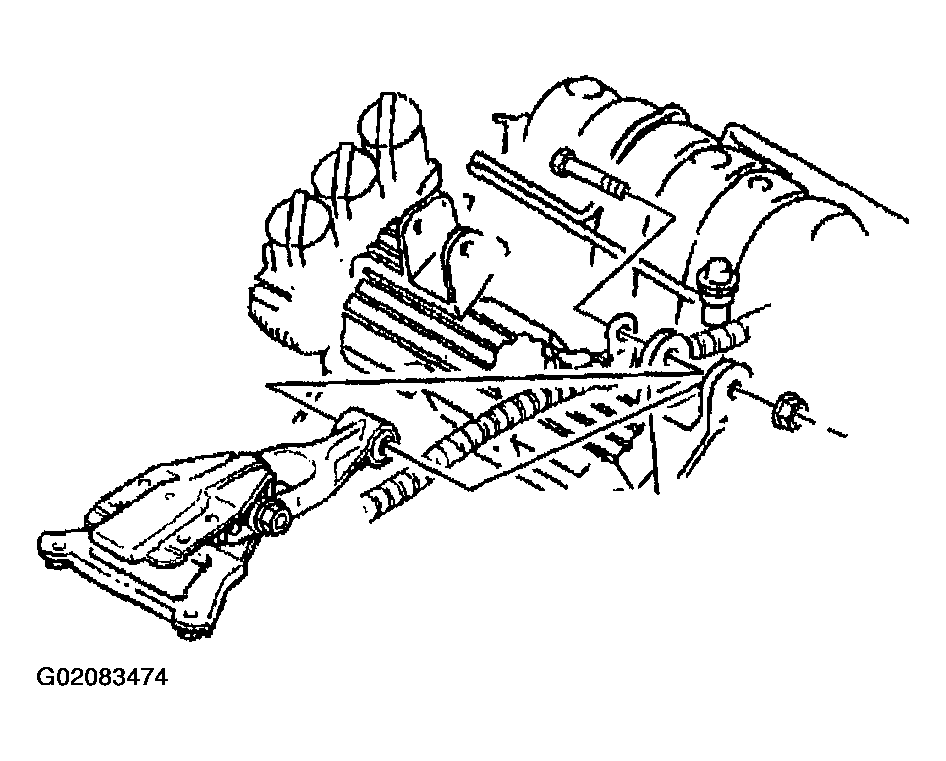

    Fig 1: Removing Left Engine Mount Strut (Left)
    G02083474Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt and the nut from the left engine mount strut at the left engine mount strut bracket on the upper radiator support.
  3. Remove the engine mount strut.
  4. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking

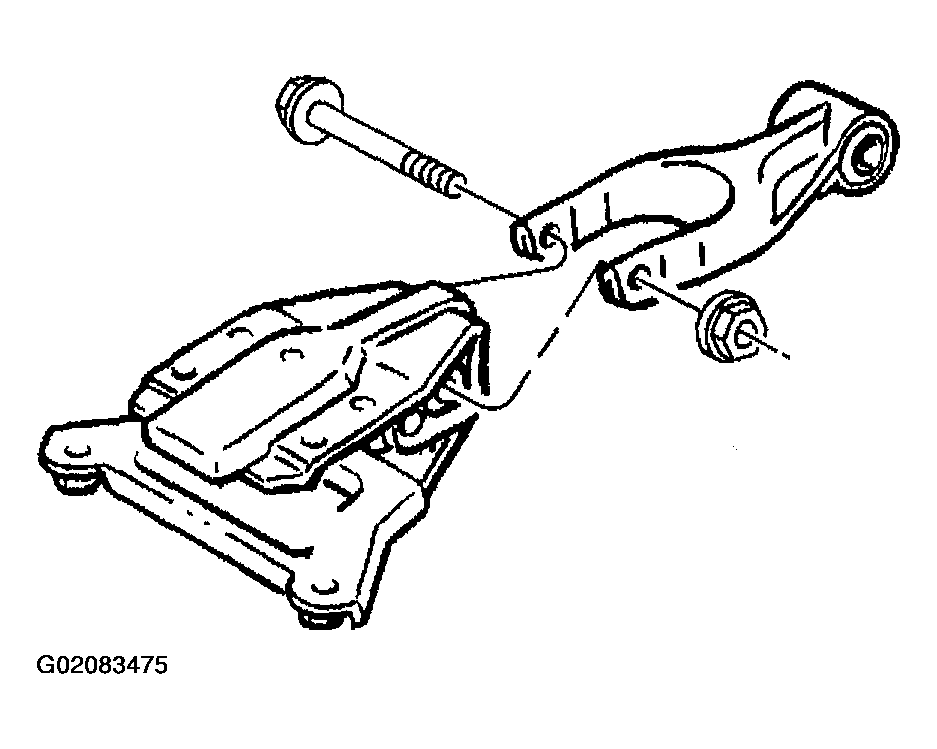

    Fig 2: Removing Bolt And Nut From Left Engine Mount Strut
    G02083475Courtesy of GENERAL MOTORS CORP.
