Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine mount strut.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the bolt and the nut to the left engine mount strut at the left engine mount strut bracket on the upper radiator support.
Tighten

Tighten the engine mount strut bolt to 48 N.m (35 lb ft).

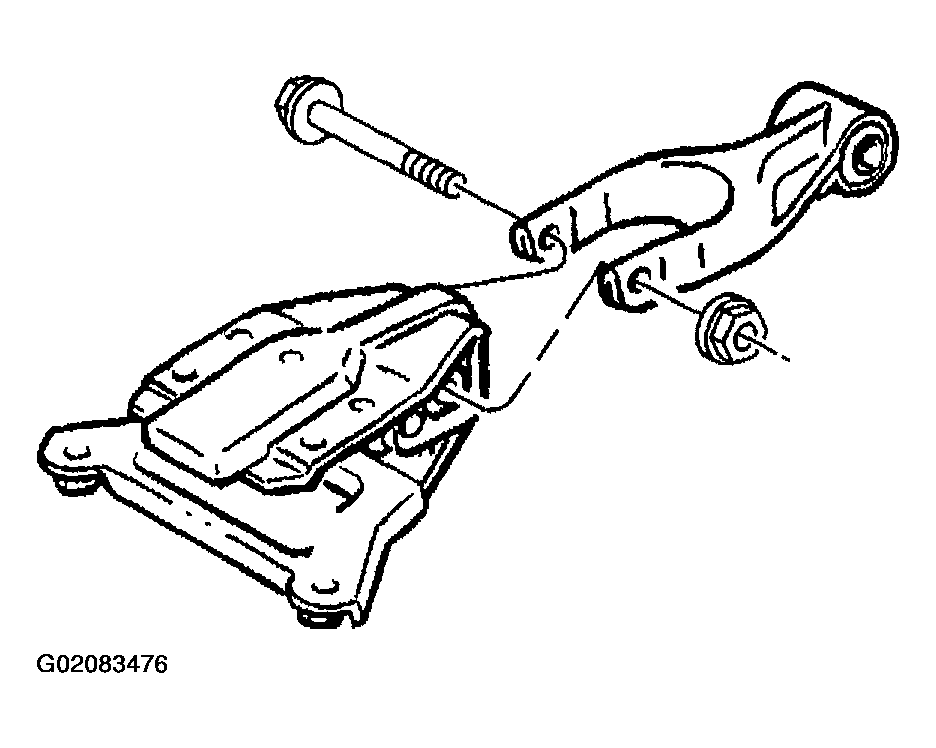

Fig 1: Installing Bolt And Nut To Left Engine Mount Strut
Courtesy of GENERAL MOTORS CORP.

Important: The p-clip on the engine wiring harness must be vertical, as shown, to the left engine mount strut bracket when installed.
Position the p-clip to the left engine mount strut bracket bolt.

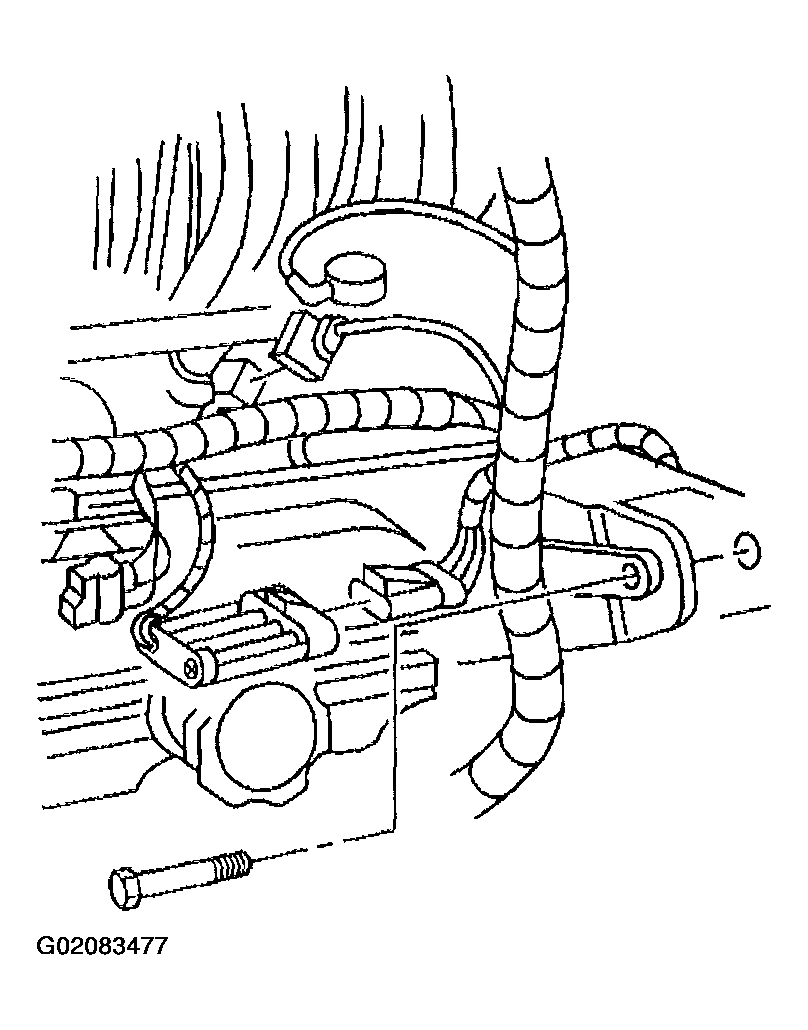

Fig 2: Positioning P-Clip To Left Engine Mount Strut Bracket Bolt
Courtesy of GENERAL MOTORS CORP.

Important: The engine mount strut bolt must always be installed as shown in the graphic.
Install the bolt and the nut to the left engine mount strut at the left engine mount strut bracket on the engine.
Tighten

Tighten the engine mount strut nut to 48 N.m (35 lb ft).

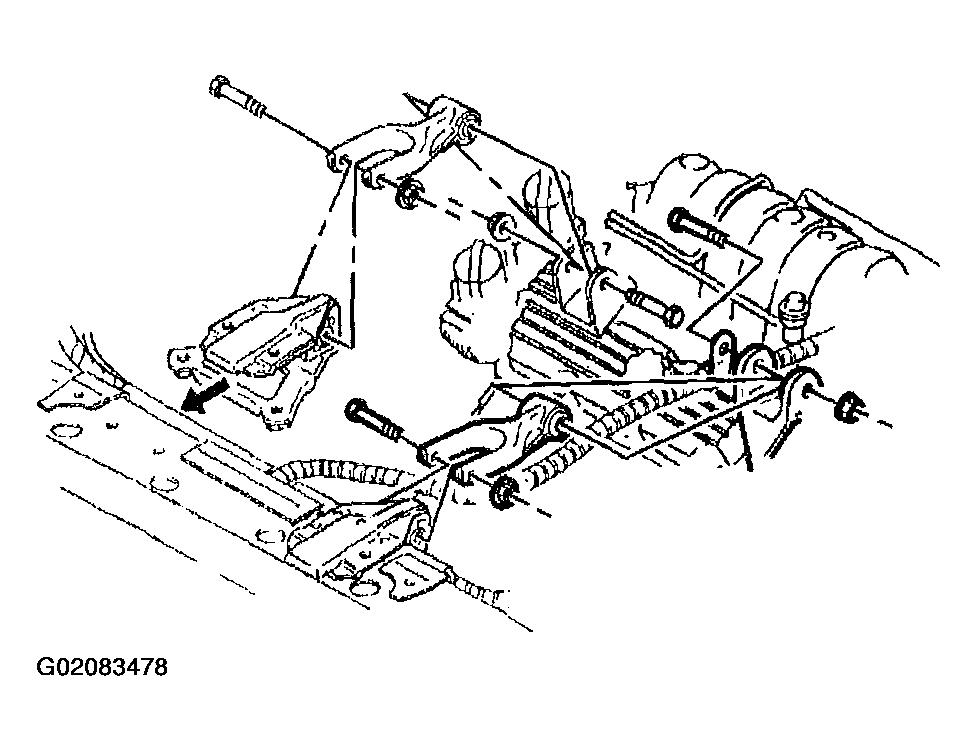

Fig 3: Installing Left Engine Mount Strut
Courtesy of GENERAL MOTORS CORP.
