Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount strut(s) from the engine mount strut bracket(s) at the upper radiator support. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT  and/or ENGINE MOUNT STRUT REPLACEMENT - RIGHT  .

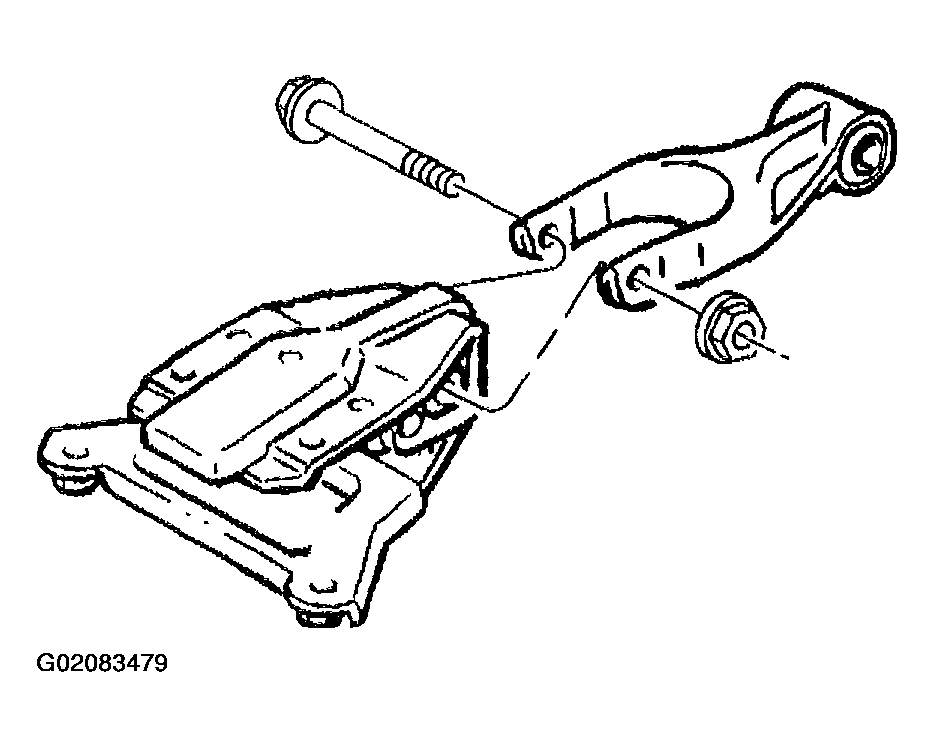

    Fig 1: Removing Engine Mount Strut
    G02083479Courtesy of GENERAL MOTORS CORP.
  2. Remove the 4 bolts from the engine mount strut bracket to the upper radiator support.
  3. Remove the engine mount strut bracket from the upper radiator support.

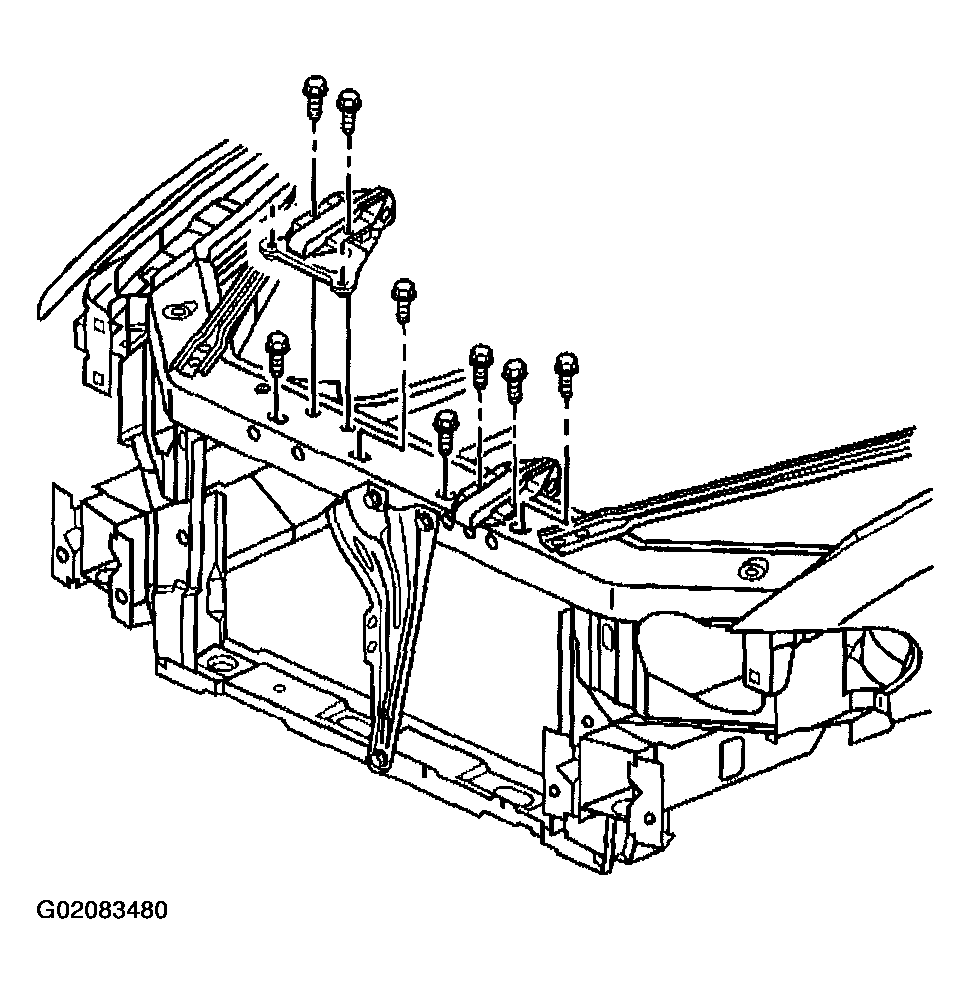

    Fig 2: Removing Engine Mount Strut Bracket From Upper Radiator Support
    G02083480Courtesy of GENERAL MOTORS CORP.
