Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
  2. Remove the lower engine mount strut bracket bolts.
  3. Remove the lower engine mount bracket nut.
  4. Remove the lower engine mount bracket.

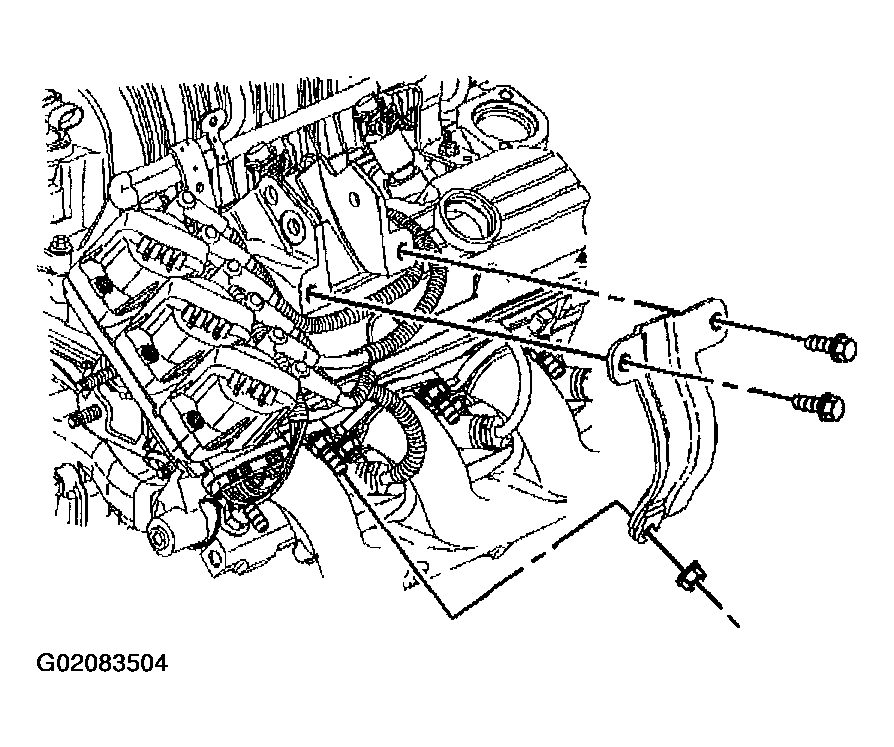

    Fig 1: Removing Lower Engine Mount Bracket
    G02083504Courtesy of GENERAL MOTORS CORP.
