Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower engine mount bracket to the exhaust manifold stud and the upper engine mount strut bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the lower engine mount strut bracket bolts and nut.

    Tighten

    • Tighten the lower engine mount bracket nut to 30 N.m (22 lb ft).
    • Tighten the lower engine mount bracket bolts to 50 N.m (37 lb ft).
  3. Connect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.

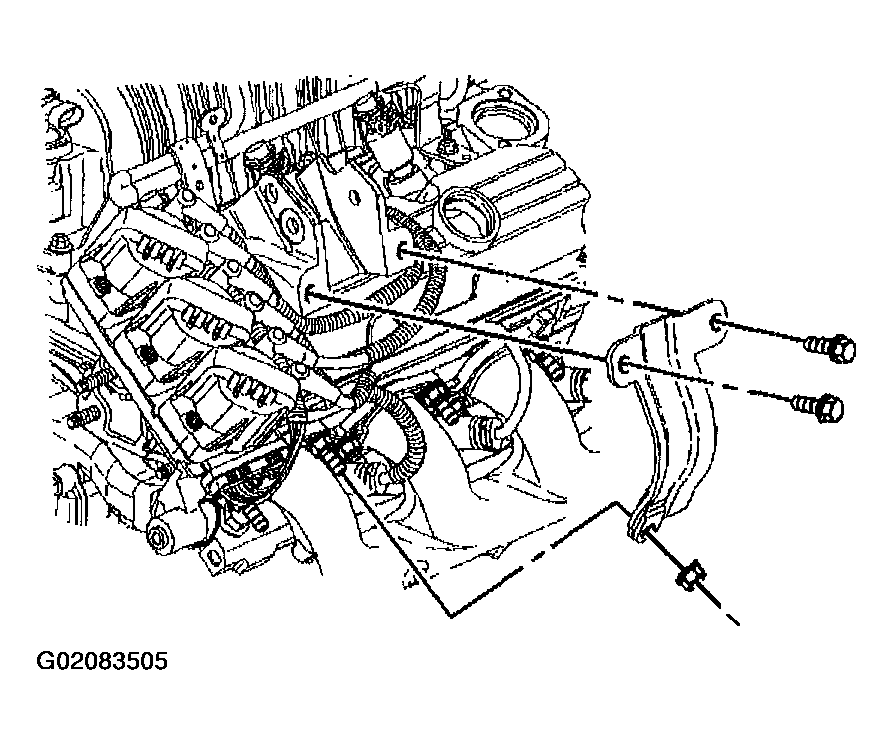

    Fig 1: Installing Lower Engine Mount Strut Bracket
    G02083505Courtesy of GENERAL MOTORS CORP.
