Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant from the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.
  2. Remove the engine coolant temperature sensor. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION - V6 & V8 in Engine Performance - Removal and Installation.
  3. Remove the radiator support clamp from the engine mount strut bolt.
  4. Remove the engine mount strut at the left engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT  and ENGINE MOUNT STRUT REPLACEMENT - RIGHT  .

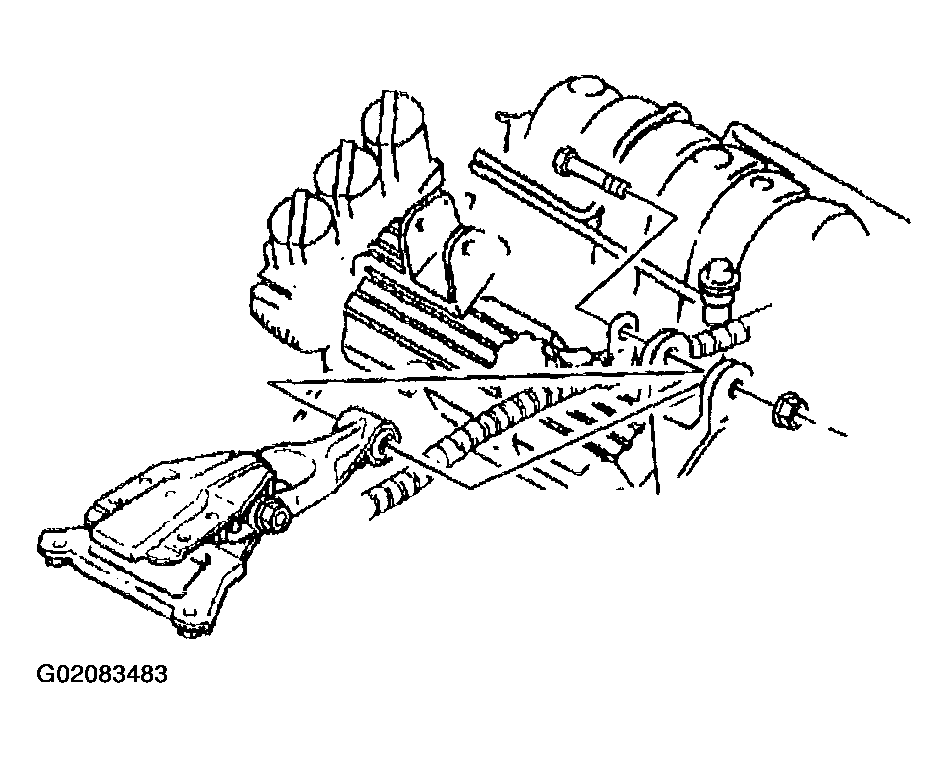

    Fig 1: Removing Engine Mount Strut (Left)
    G02083483Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine mount strut bracket bolts.
  6. Remove the engine mount strut bracket.

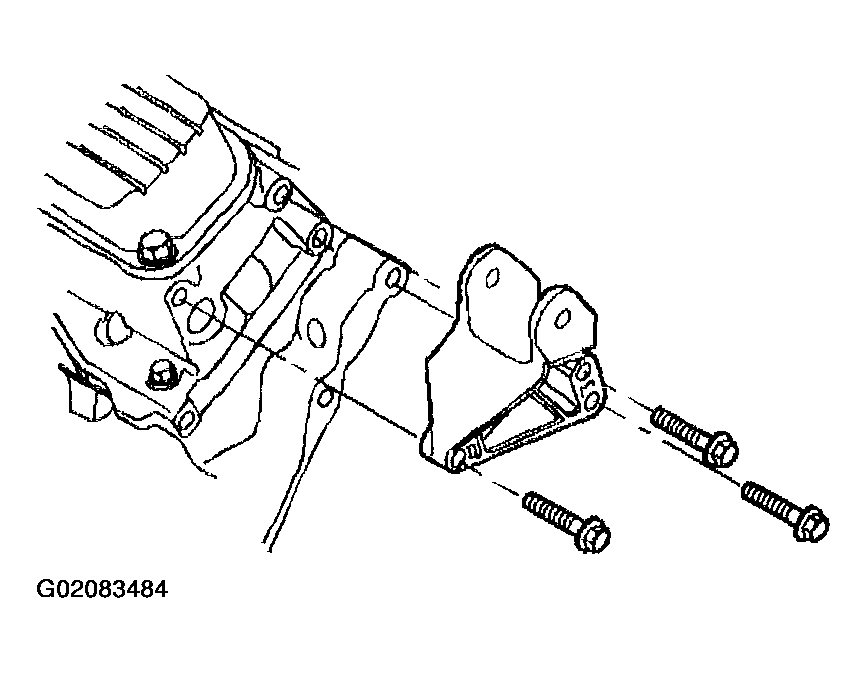

    Fig 2: Removing Engine Mount Strut Bracket
    G02083484Courtesy of GENERAL MOTORS CORP.
