Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount strut bracket to the head.
    NOTE: Refer toFASTENER NOTICE in Cautions and Notices.
  2. Install the engine mount strut bracket bolts.

    Tighten

    Tighten the engine mount strut bracket bolts to 50 N.m (37 lb ft).

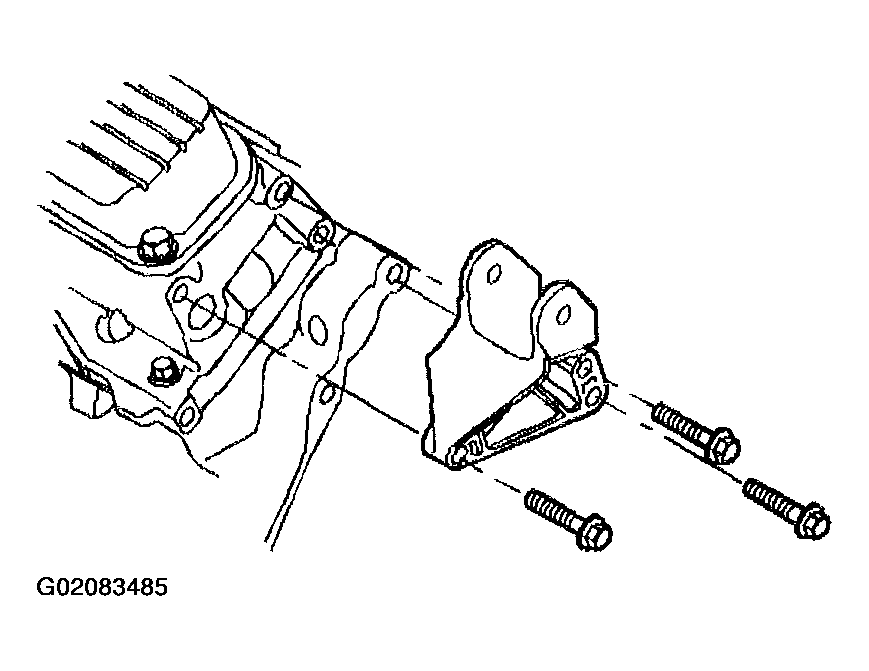

    Fig 1: Installing Engine Mount Strut Bracket
    G02083485Courtesy of GENERAL MOTORS CORP.
  3. Install the engine mount strut to the left engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT  and ENGINE MOUNT STRUT REPLACEMENT - RIGHT  .
  4. Install the radiator support clamp to the engine mount strut bolt.
  5. Install the engine coolant temperature sensor. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION - V6 & V8 in Engine Performance - Removal and Installation.
  6. Fill the cooling system with engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.

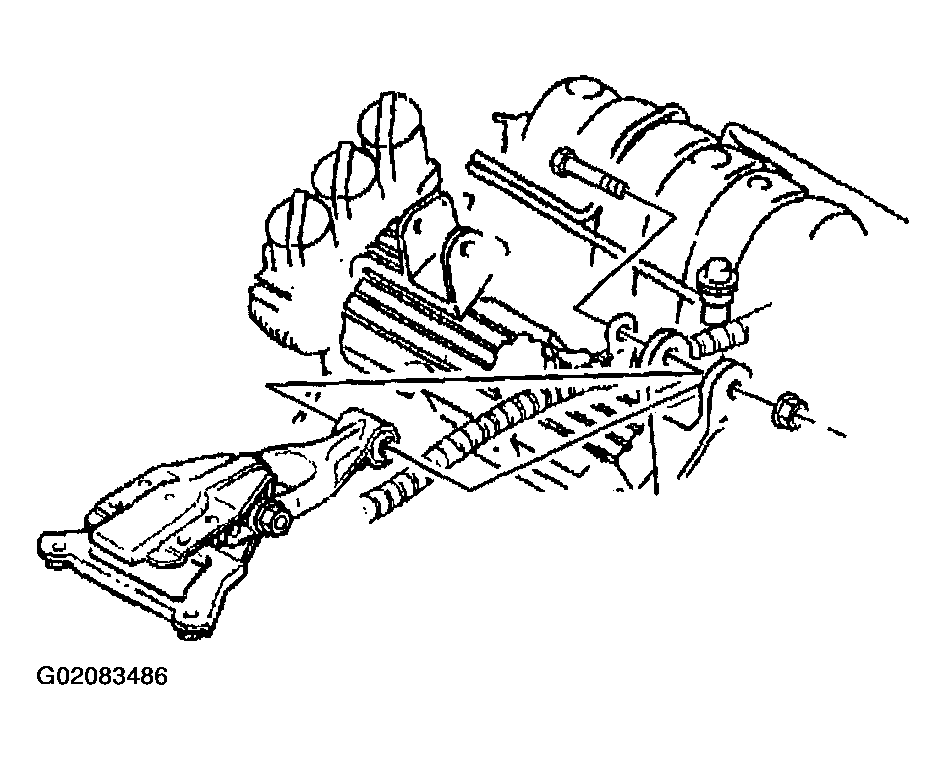

    Fig 2: Installing Engine Mount Strut
    G02083486Courtesy of GENERAL MOTORS CORP.
