Tools Required
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
J 36660-A Torque Angle Meter

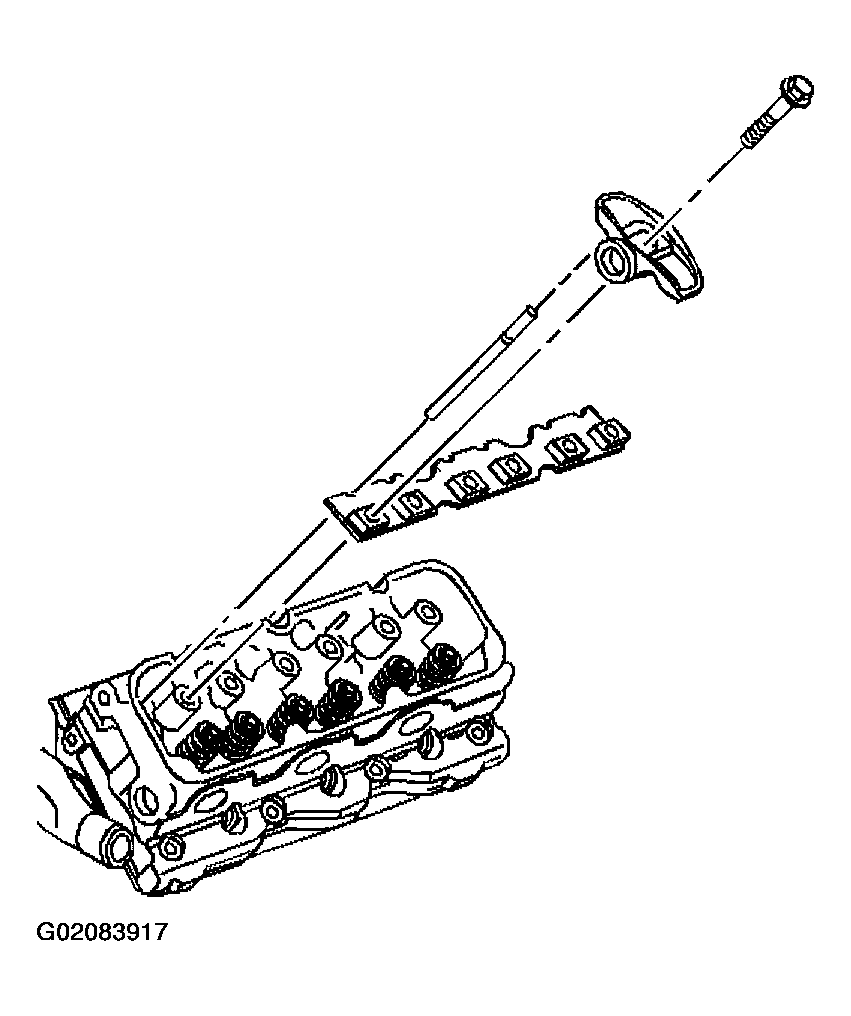

- Install the pushrod guide plate.
- Install the push rods.
- Install the valve rocker arm bearing retainer.
- Coat the valve stem tip and pushrod tip with prelube GM P/N 1052367 (Canadian P/N 992869) or the equivalent.
- Install the valve rocker arms.
- Apply GM P/N 12345493 (Canadian P/N 10953488) threadlocker or the equivalent to the valve rocker arm bolt threads.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the valve rocker arm bolts.
Tighten
Tighten the valve rocker arm bolts to 15 N.m (11 lb ft) + 90 degrees using J 36660-A .
