Valve Lifter Installation

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Dip the valve lifters in prelube GM P/N 12345501 (Canadian 992704) or the equivalent.
  2. Install the valve lifters.
  3. Install the valve lifter guides.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the valve lifter guide bolts.

    Tighten

    Tighten the valve lifter guide bolts to 30 N.m (22 lb ft).

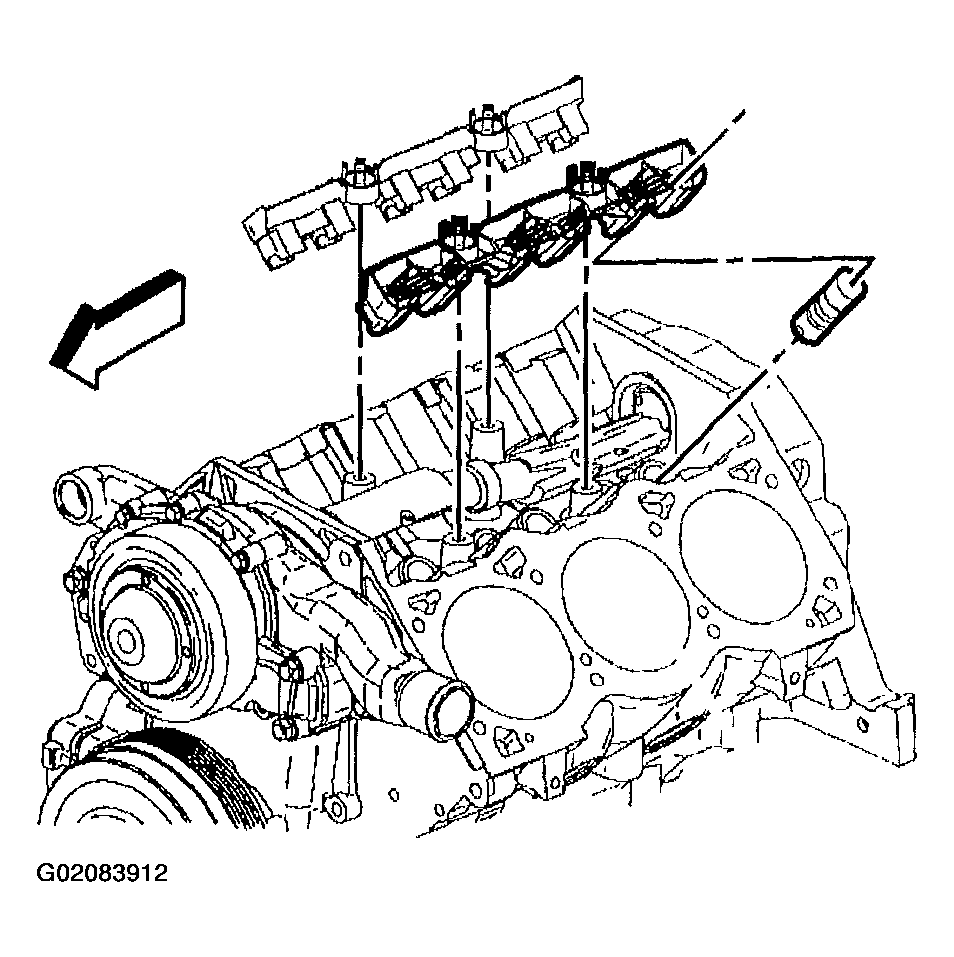

    Fig 1: Installing Valve Lifter Guide
    G02083912Courtesy of GENERAL MOTORS CORP.
