Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

J 41131  Engine Tilt Strap

  1. Remove the air cleaner intake duct.
  2. Apply the parking brake.
  3. Put the transaxle in the Neutral position.
  4. Remove the engine mount struts. Refer to ENGINE MOUNT STRUT REPLACEMENT - RIGHT  and ENGINE MOUNT STRUT REPLACEMENT - LEFT  .
  5. Install the J 41131  (2) to the engine mount strut bracket (1) and the upper radiator support (3).
  6. Rotate the engine forward for component access.

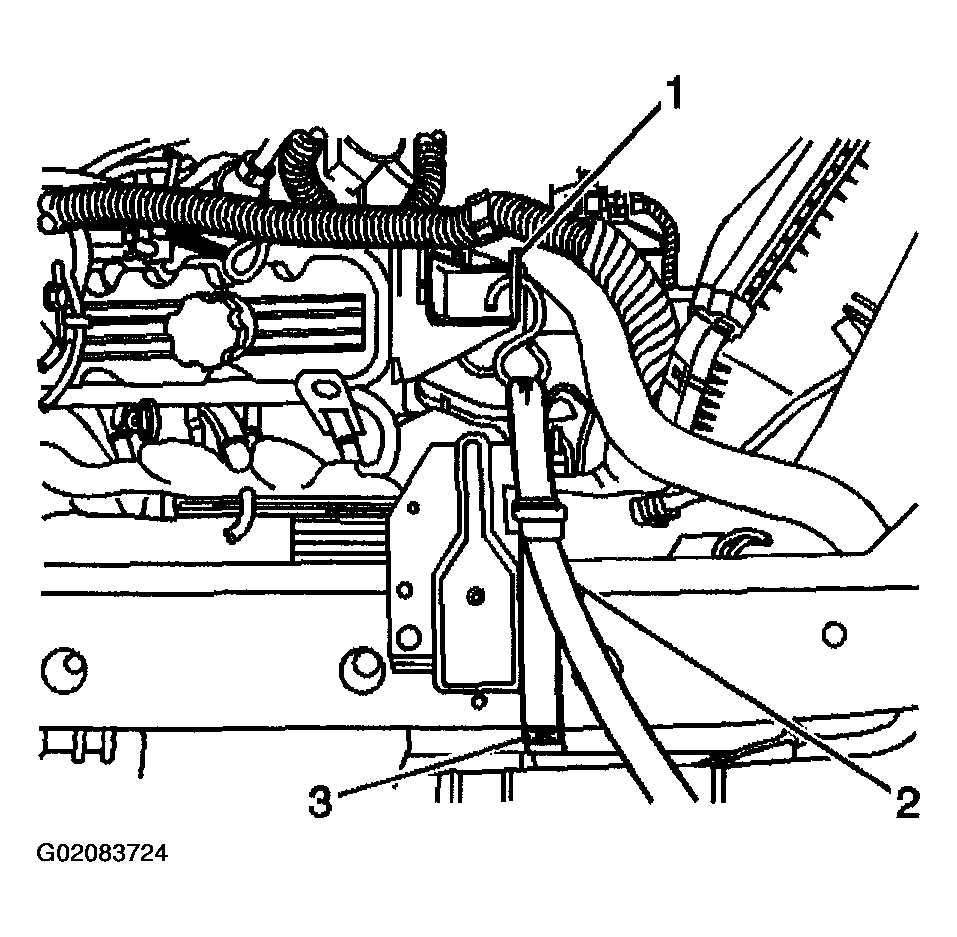

    Fig 1: Installing Engine Tilt Strap To Engine Mount Strut Bracket
    G02083724Courtesy of GENERAL MOTORS CORP.
