Oil Pump Pipe and Screen Assembly Installation

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil pump pipe and screen assembly gasket.

    Important:  The oil pan gasket must be installed before the oil pump pipe and screen assembly.

  2. Install the oil pan gasket.
  3. Install the oil pump pipe and screen assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the oil pump pipe and screen assembly bolts.

    Tighten

    Tighten the bolts to 15 N.m (11 lb ft).

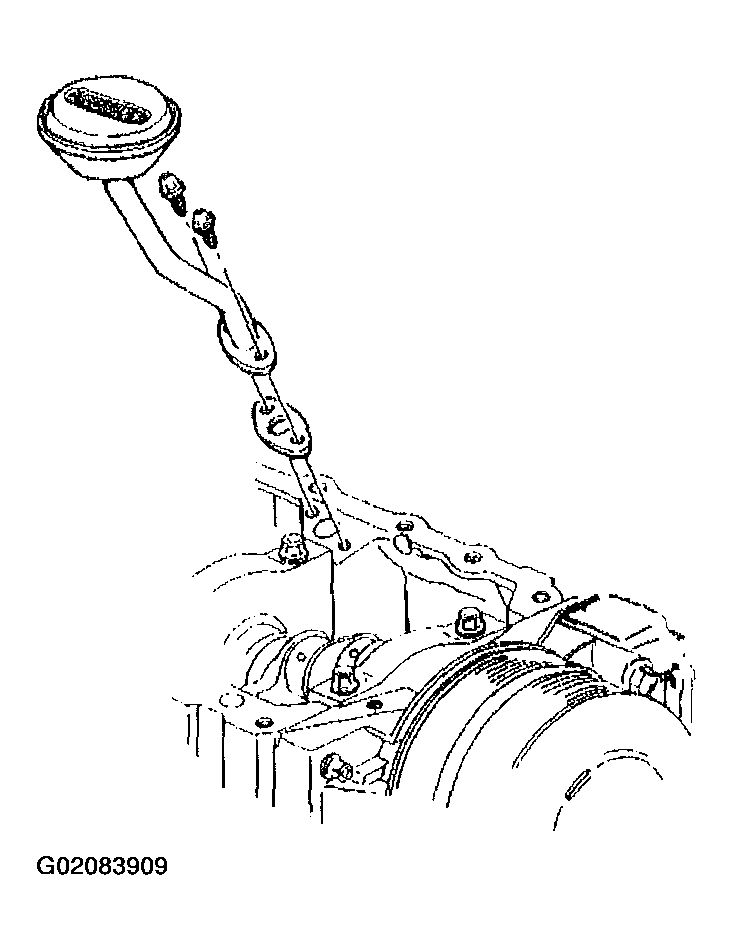

    Fig 1: Installing Oil Pump Pipe And Screen Assembly
    G02083909Courtesy of GENERAL MOTORS CORP.
