Engine Front Cover Removal

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft position sensor shield.

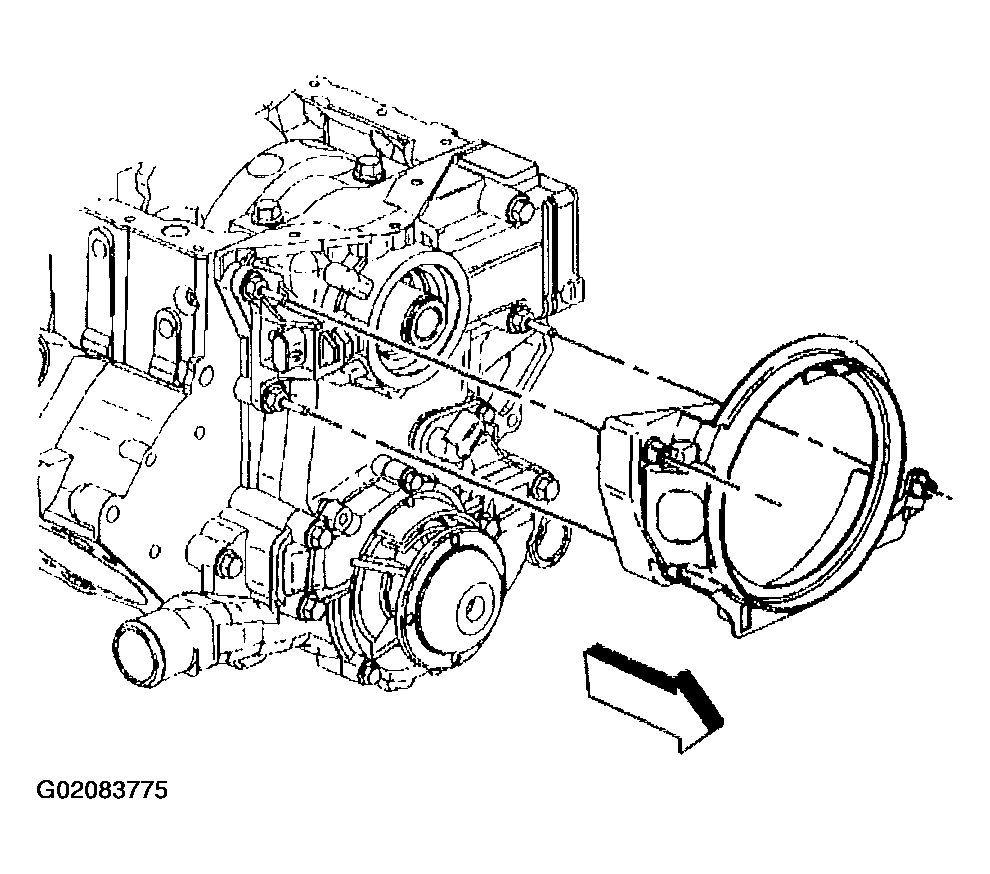

    Fig 1: Removing Crankshaft Position Sensor Shield
    G02083775Courtesy of GENERAL MOTORS CORP.
  2. Remove the crankshaft position sensor studs.
  3. Remove the crankshaft position sensor.
  4. Remove the bolts connecting the oil pan to the engine front cover.

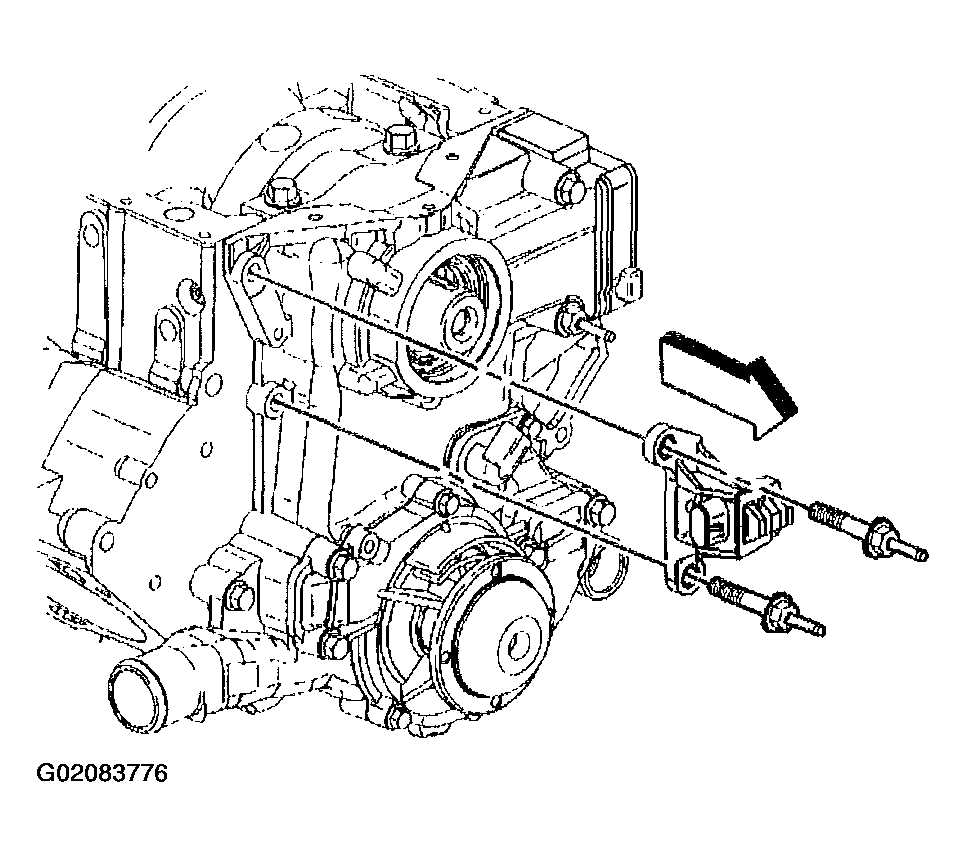

    Fig 2: Removing Crankshaft Position Sensor
    G02083776Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine front cover bolts and stud.
  6. Remove the engine front cover.

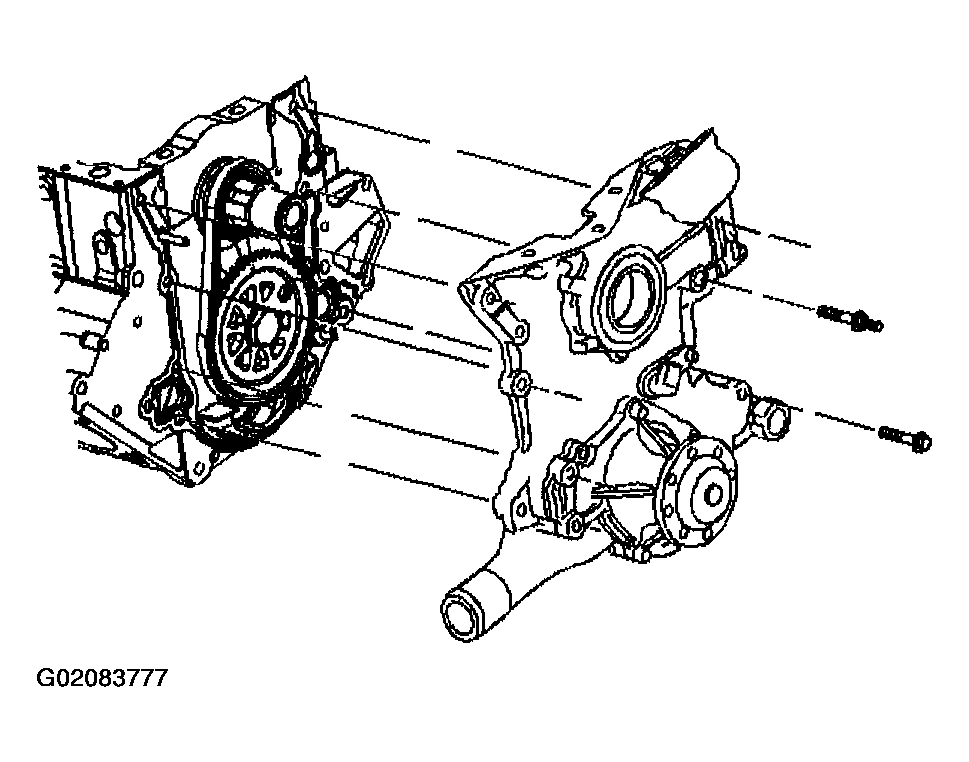

    Fig 3: Removing Engine Front Cover
    G02083777Courtesy of GENERAL MOTORS CORP.
  7. Remove the engine front cover gasket.

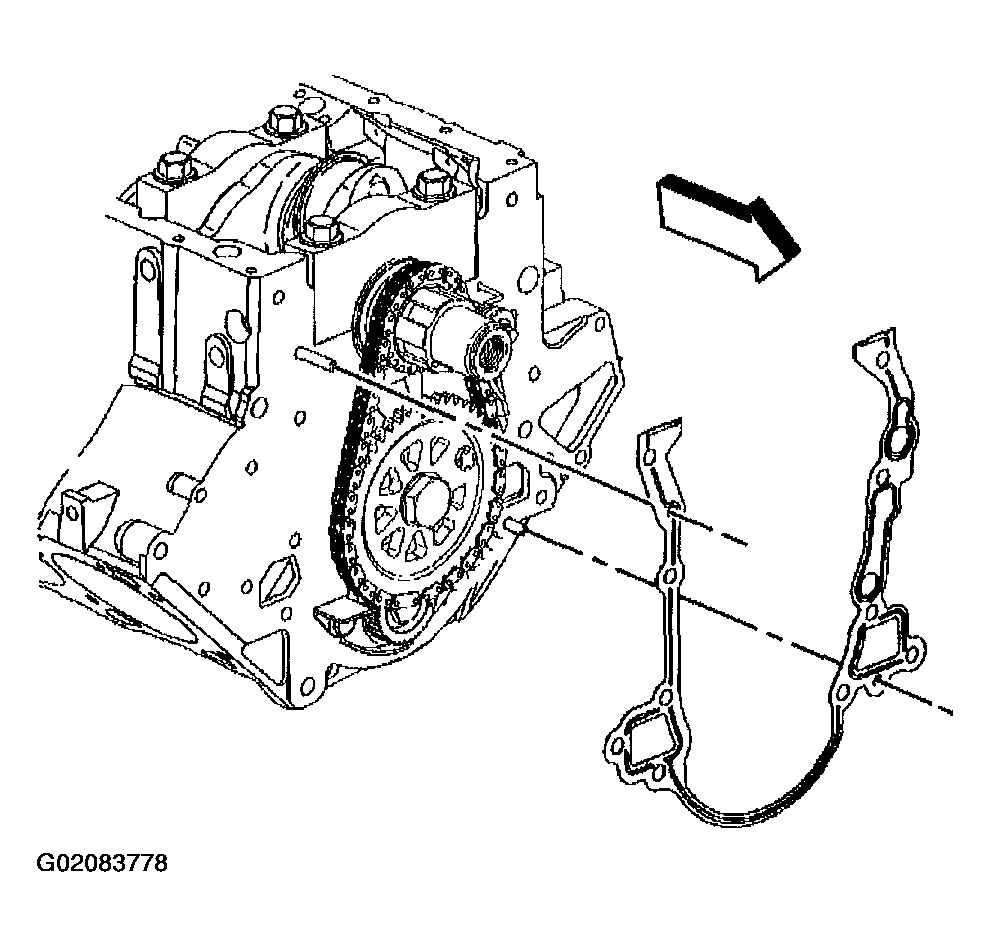

    Fig 4: Removing Engine Front Cover Gasket
    G02083778Courtesy of GENERAL MOTORS CORP.
