Engine Flywheel Installation

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 36660-A  Torque Angle Meter

  1. Install the flywheel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the new flywheel bolts.

    Tighten

    Tighten the bolts to 15 N.m (11 lb ft). Use the J 36660-A  to tighten the bolts an additional 50 degrees.

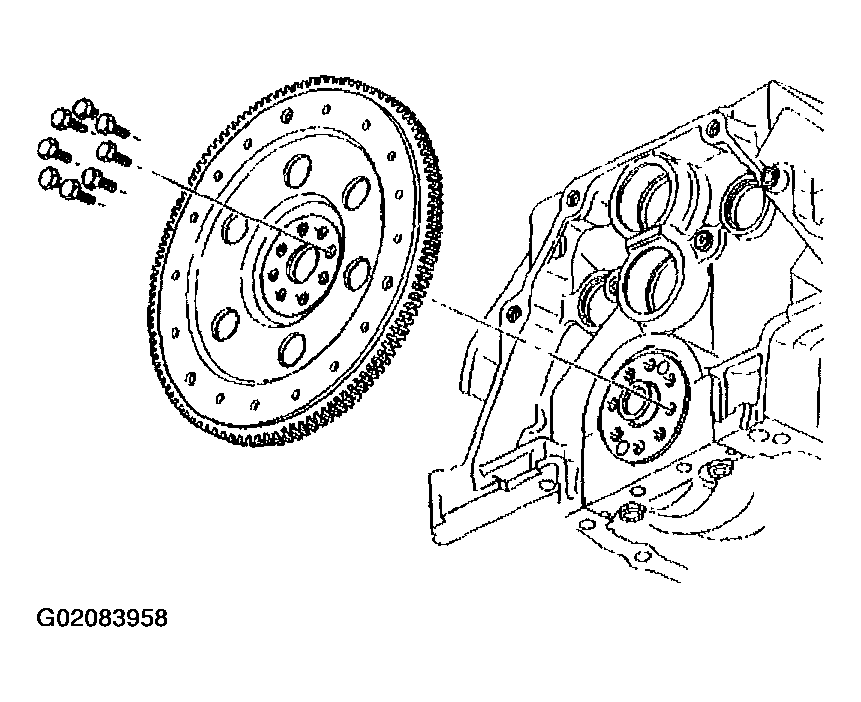

    Fig 1: Installing Flywheel
    G02083958Courtesy of GENERAL MOTORS CORP.
