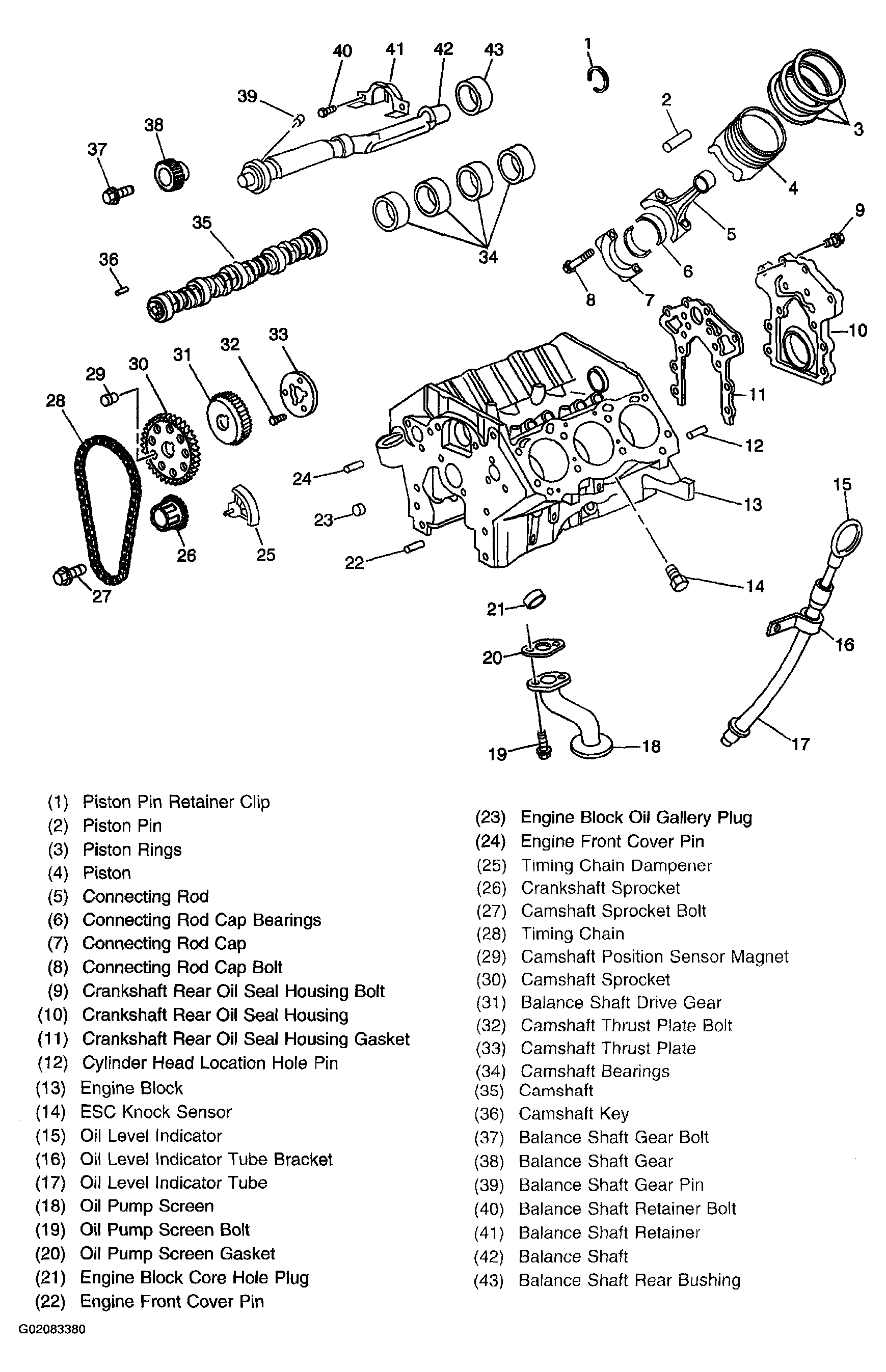

Fig 1: Engine Block and Component Disassembled View
Courtesy of GENERAL MOTORS CORP.

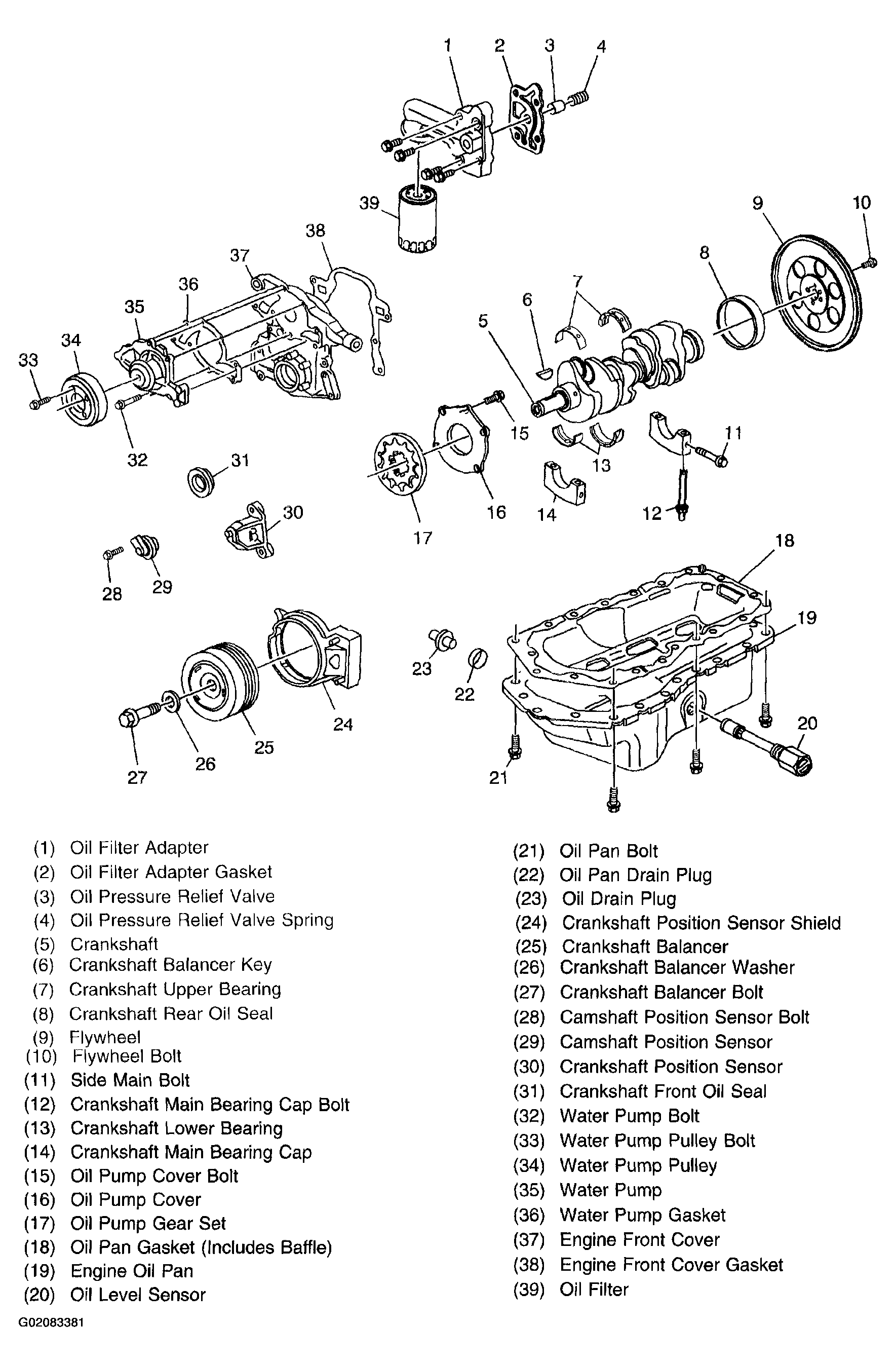

Fig 2: Crankshaft and Components (W) Disassembled View
Courtesy of GENERAL MOTORS CORP.

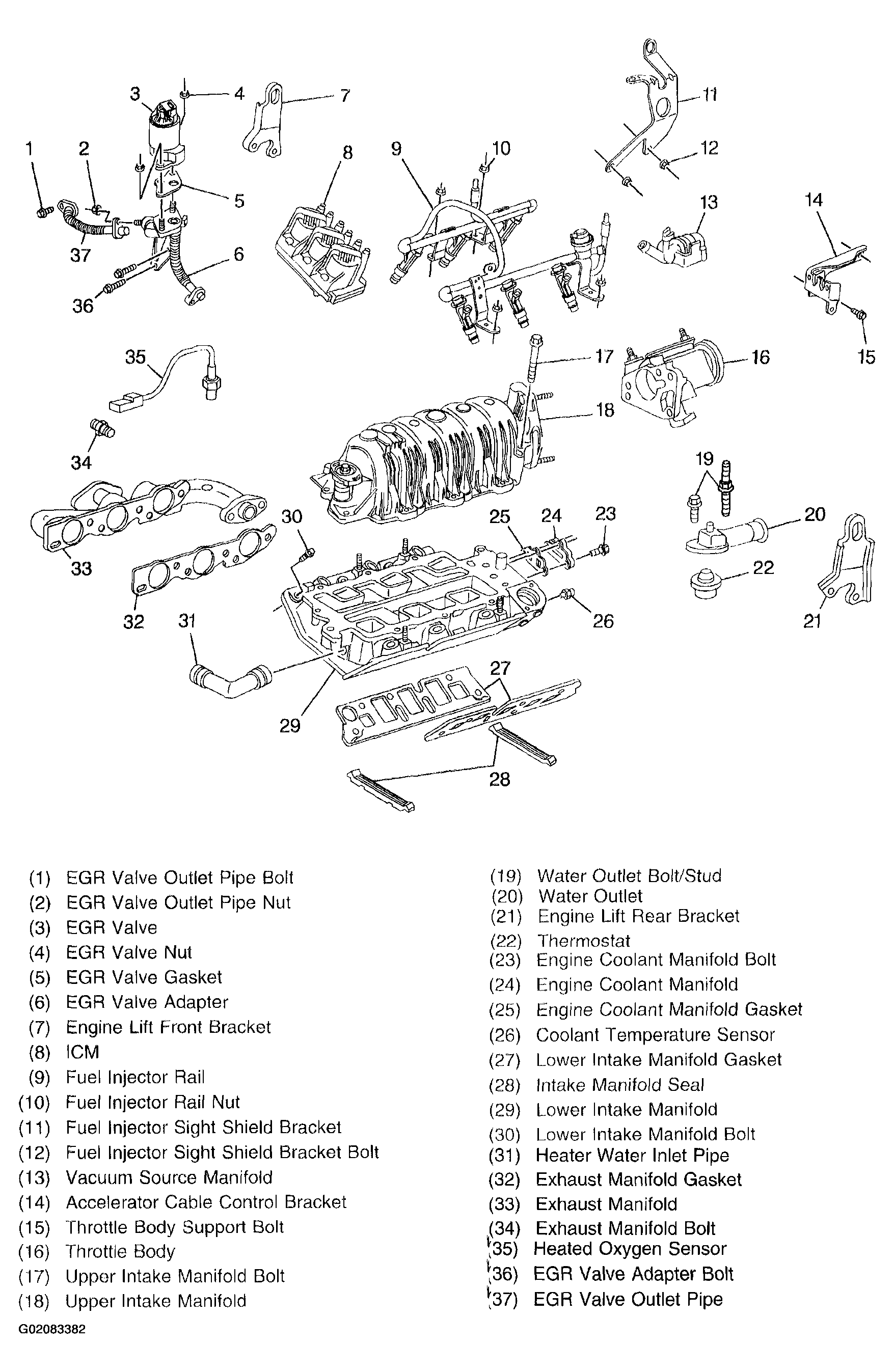

Fig 3: Intake Manifold and Components Disassembled View
Courtesy of GENERAL MOTORS CORP.

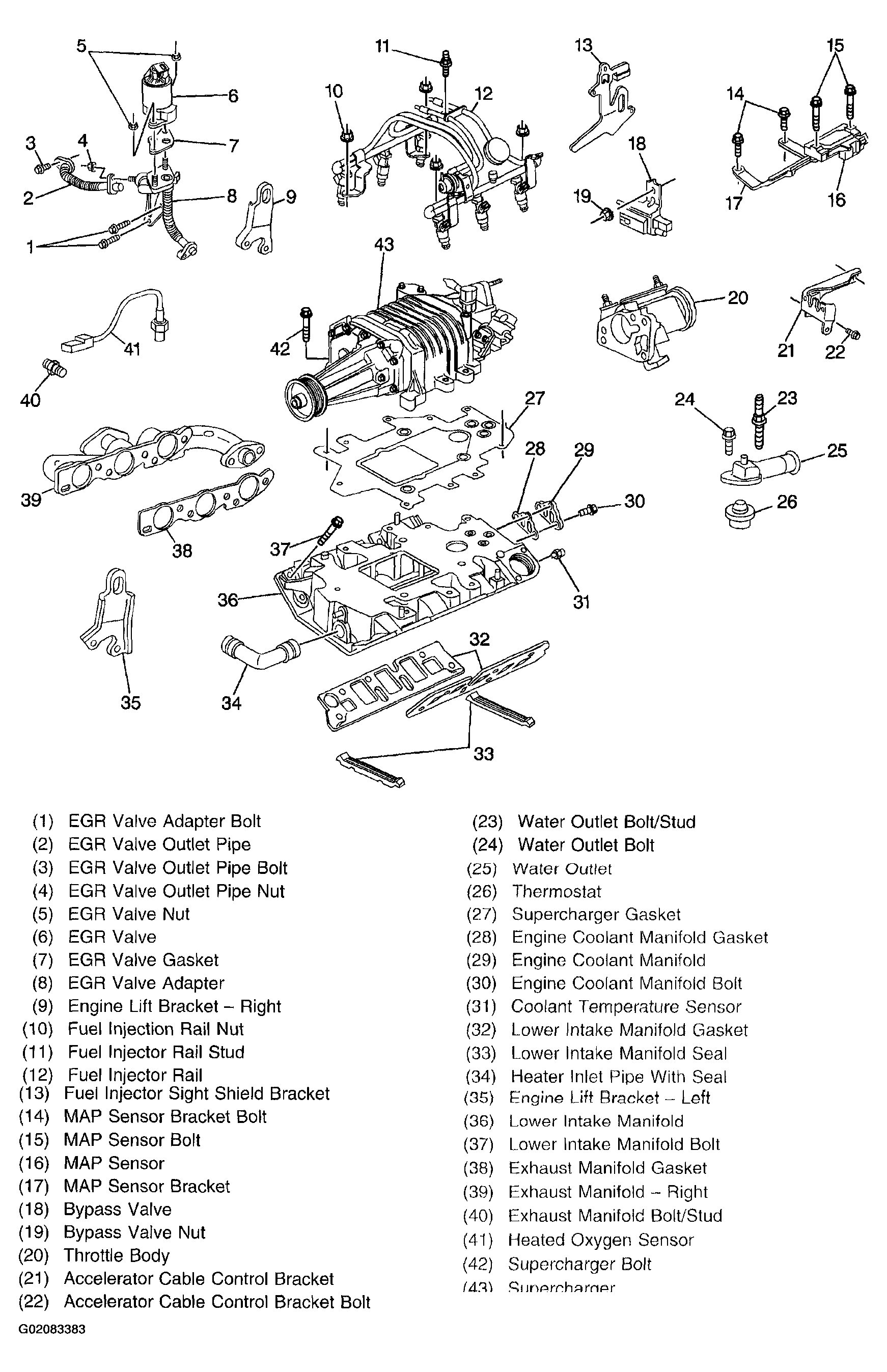

Fig 4: Supercharger and Components (L67) Disassembled View
Courtesy of GENERAL MOTORS CORP.

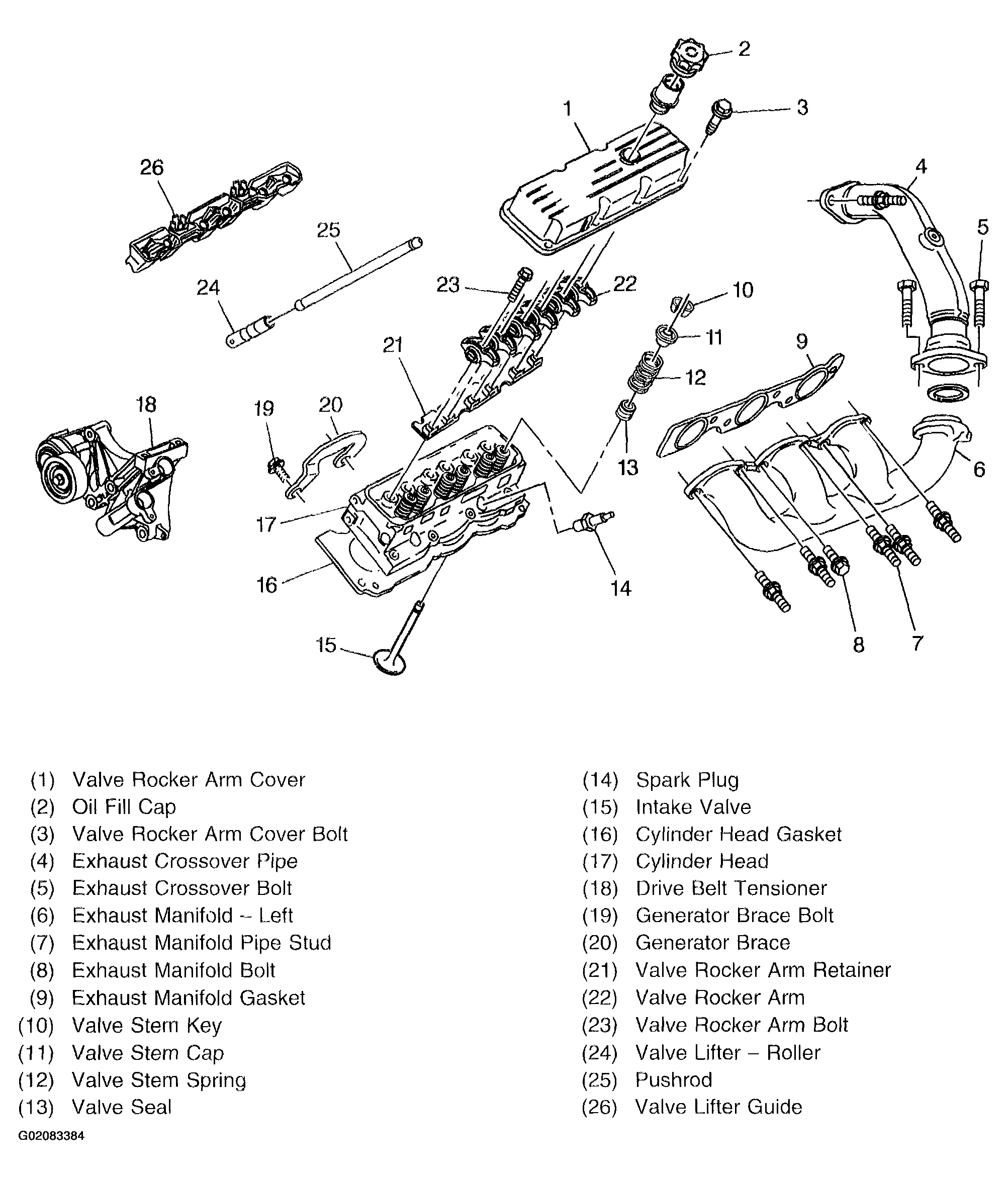

Fig 5: Cylinder Head and Components - L36 Disassembled View
Courtesy of GENERAL MOTORS CORP.

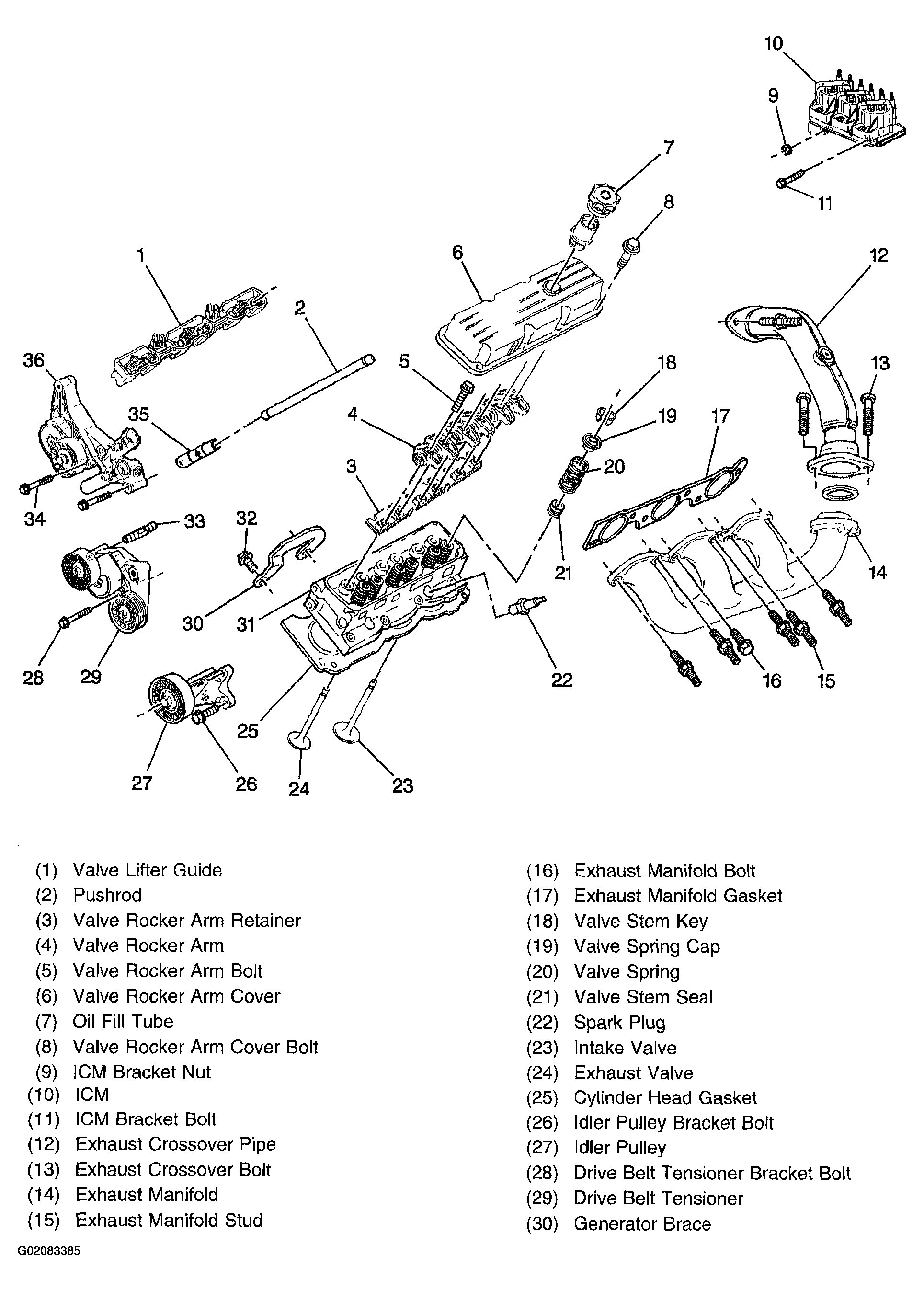

Fig 6: Cylinder Head and Components (L67) Disassembled View
