Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
  2. Remove the left engine mount strut and the bracket from the upper radiator support. Refer to ENGINE MOUNT STRUT BRACKET REPLACEMENT - UPPER RADIATOR SUPPORT  .
  3. Assemble the J-28467-501  (2) to the J 28467-B  cross bar (1).
  4. Install the J 28467-B  (1) and the J-28467-501  (2) to the fender rails.

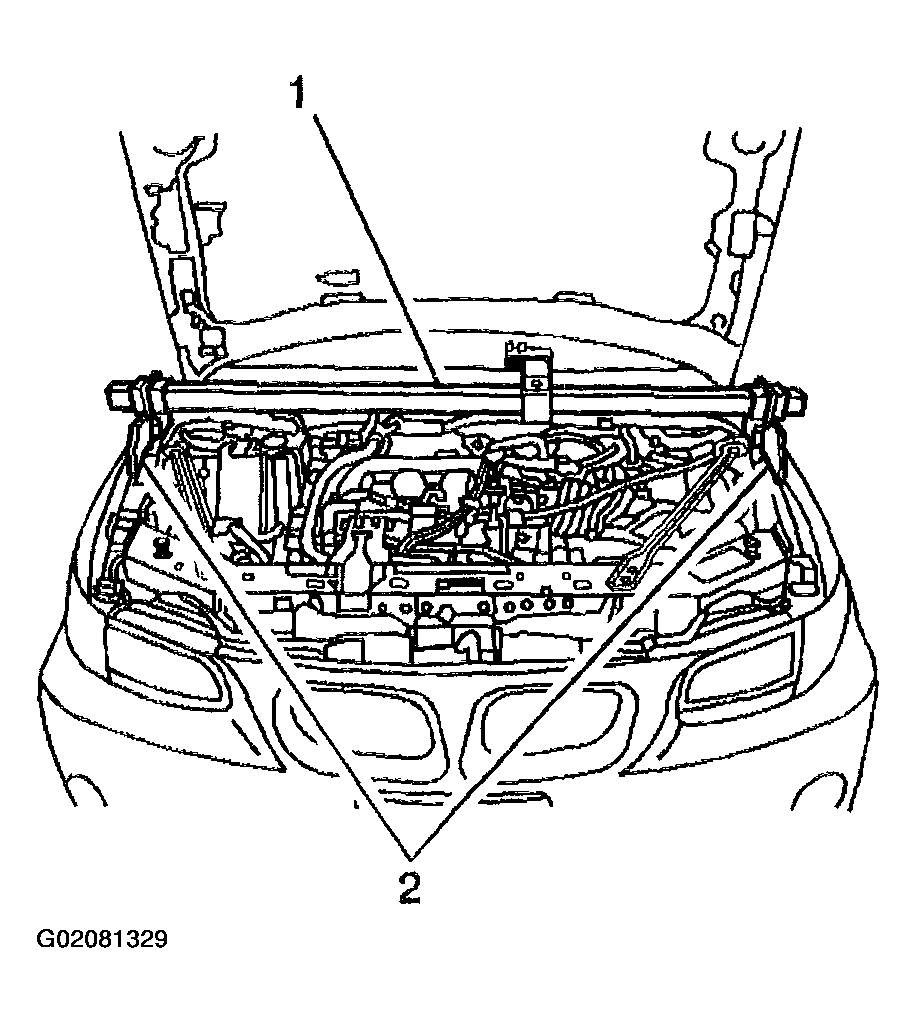

    Fig 1: Installing J 28467-B And J-28467-501 To Fender Rails
    G02081329Courtesy of GENERAL MOTORS CORP.
  5. Install the J 36462-A  (1) to the cross bar (2).

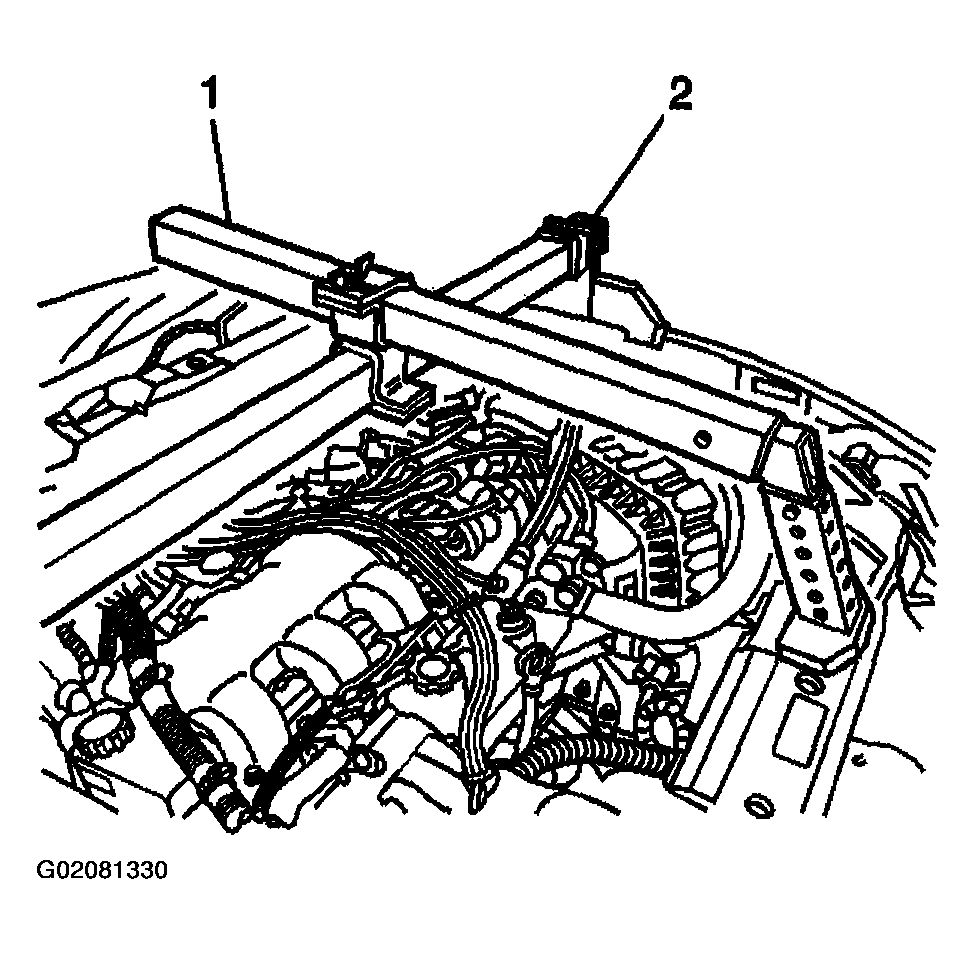

    Fig 2: Installing J 36462-A To Cross Bar
    G02081330Courtesy of GENERAL MOTORS CORP.
  6. Install the support lift hook (1) to the cross bar (2).
  7. Install the support hook (1) to the right engine lift hook (3).

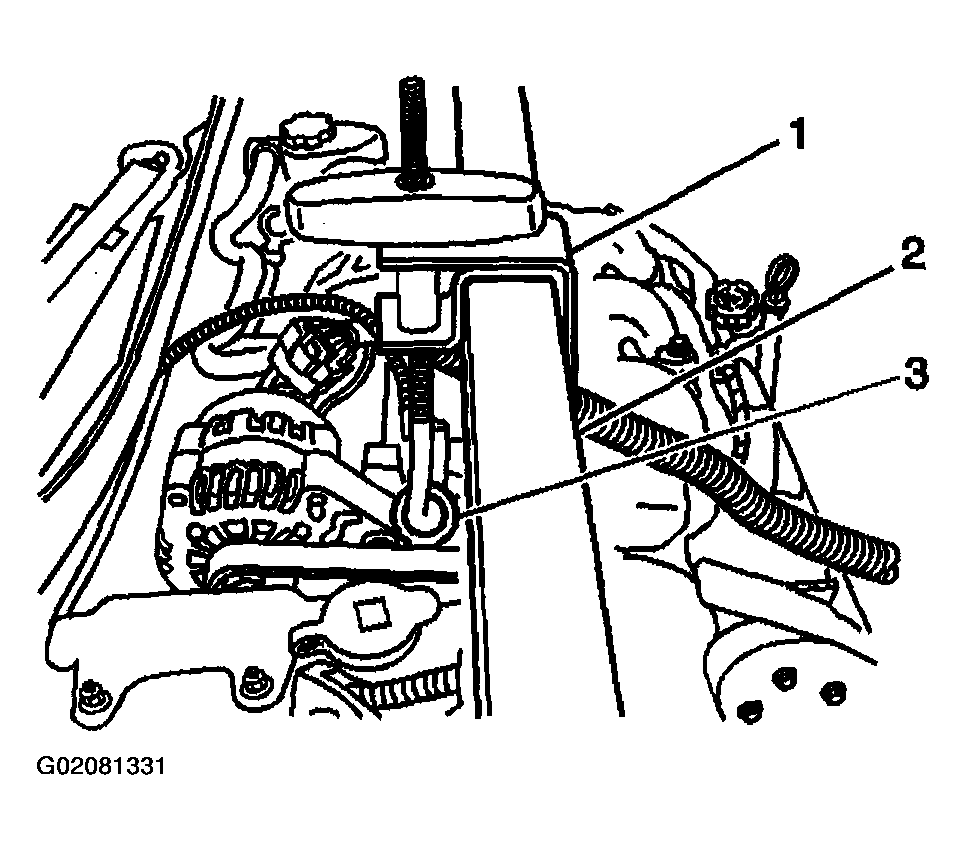

    Fig 3: Installing Support Hook To Right Engine Lift Hook
    G02081331Courtesy of GENERAL MOTORS CORP.
  8. Install the support hook (1) to the J 36462-A  (2).
  9. Install the support hook (1) to the left engine lift hook (3).

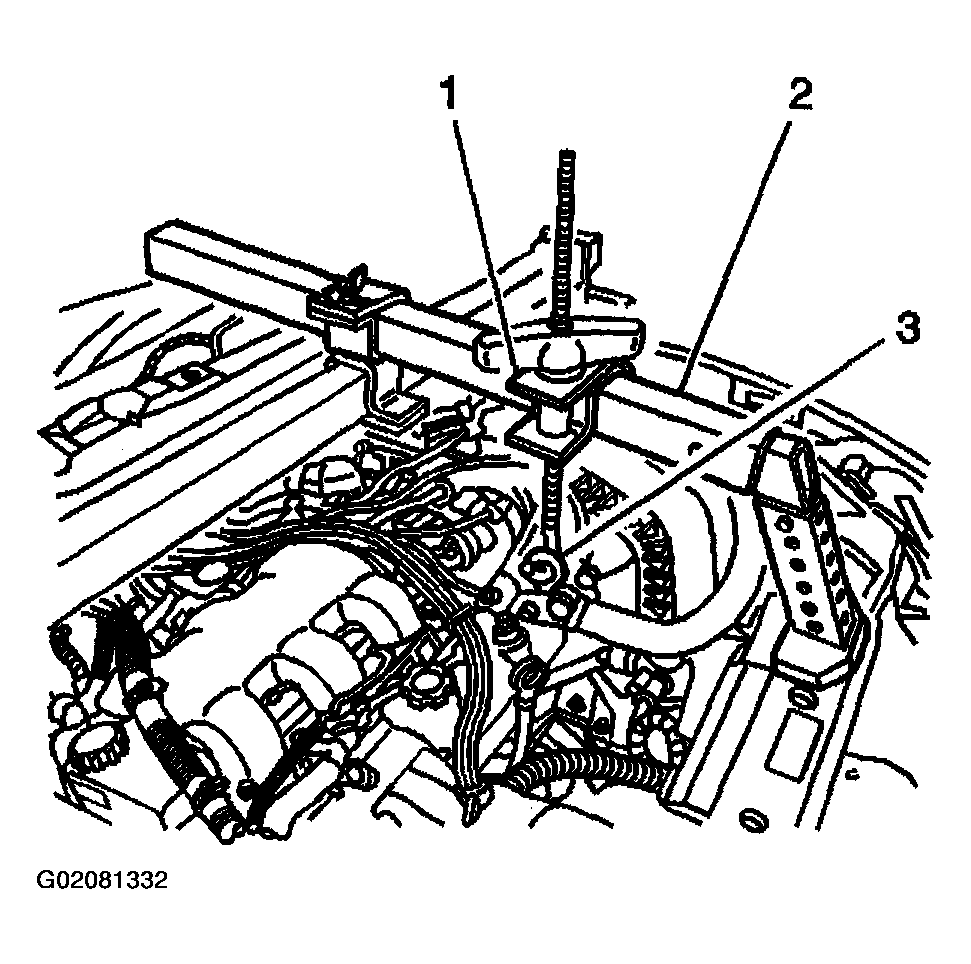

    Fig 4: Installing Support Hook To Left Engine Lift Hook
    G02081332Courtesy of GENERAL MOTORS CORP.
  10. Raise the engine to release the pressure off of the engine mounts.

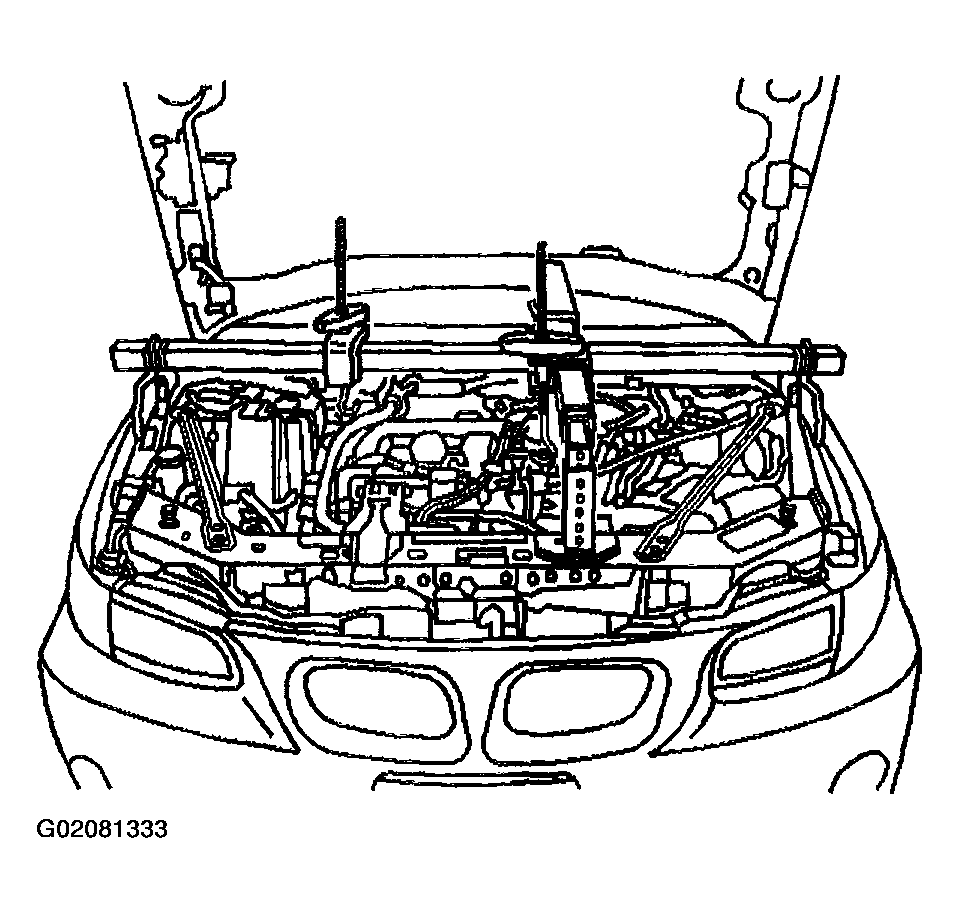

    Fig 5: Raising Engine By Using SST
    G02081333Courtesy of GENERAL MOTORS CORP.
