Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the engine oil drain plug and drain the engine oil.

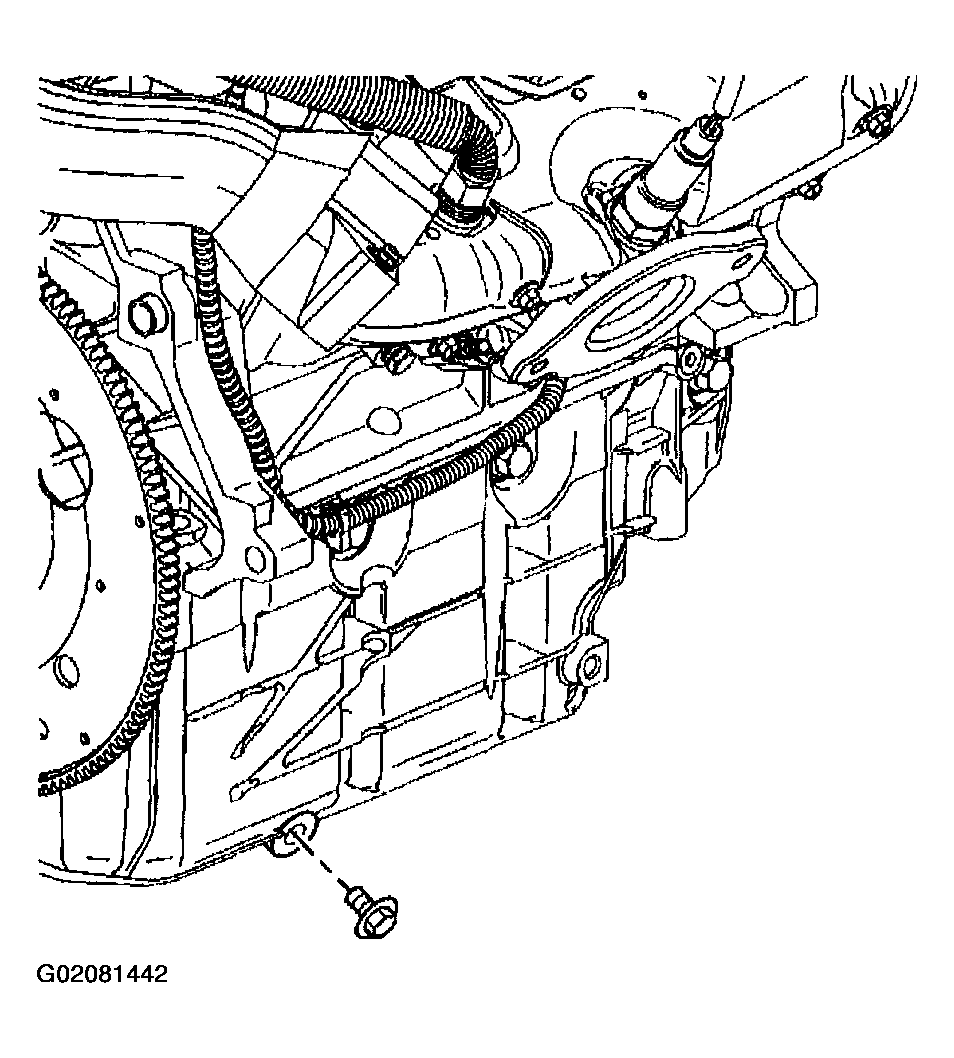

    Fig 1: Removing Engine Oil Drain Plug
    G02081442Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the engine oil level sensor electrical connector.
  4. Remove the bolt from the engine oil level sensor.
  5. Remove the engine oil level sensor from the oil pan.

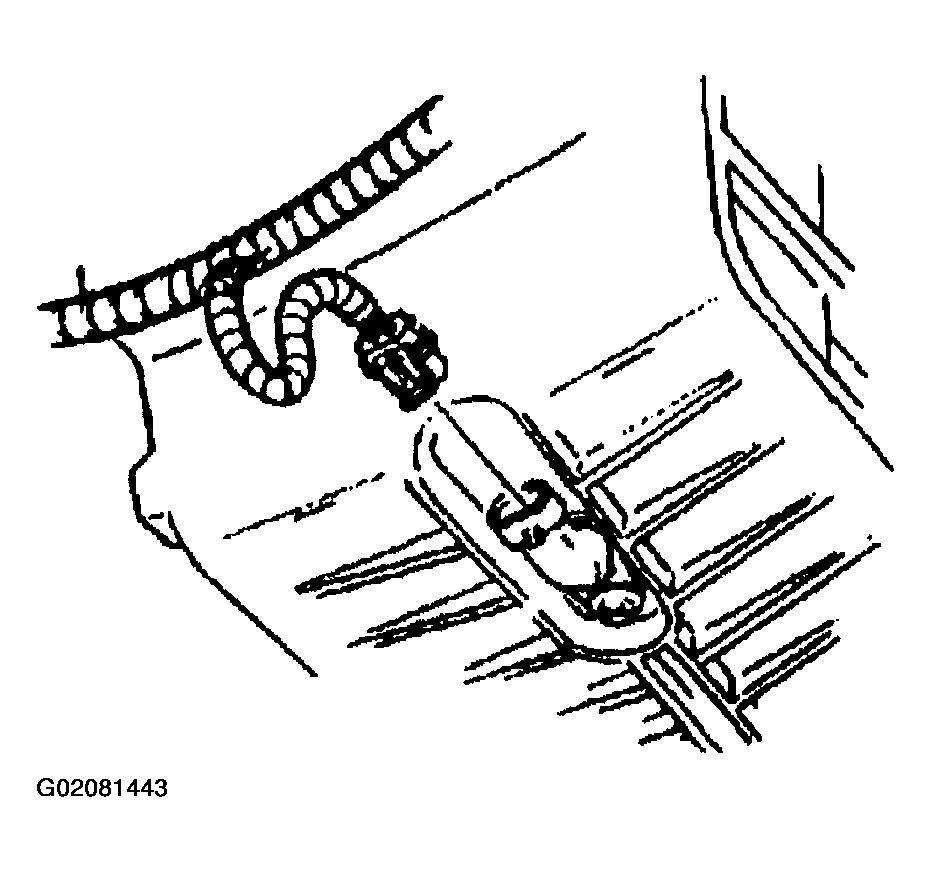

    Fig 2: Disconnecting Engine Oil Level Sensor Electrical Connector
    G02081443Courtesy of GENERAL MOTORS CORP.
