Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt and the nut from the engine mount strut and the engine mount strut bracket.

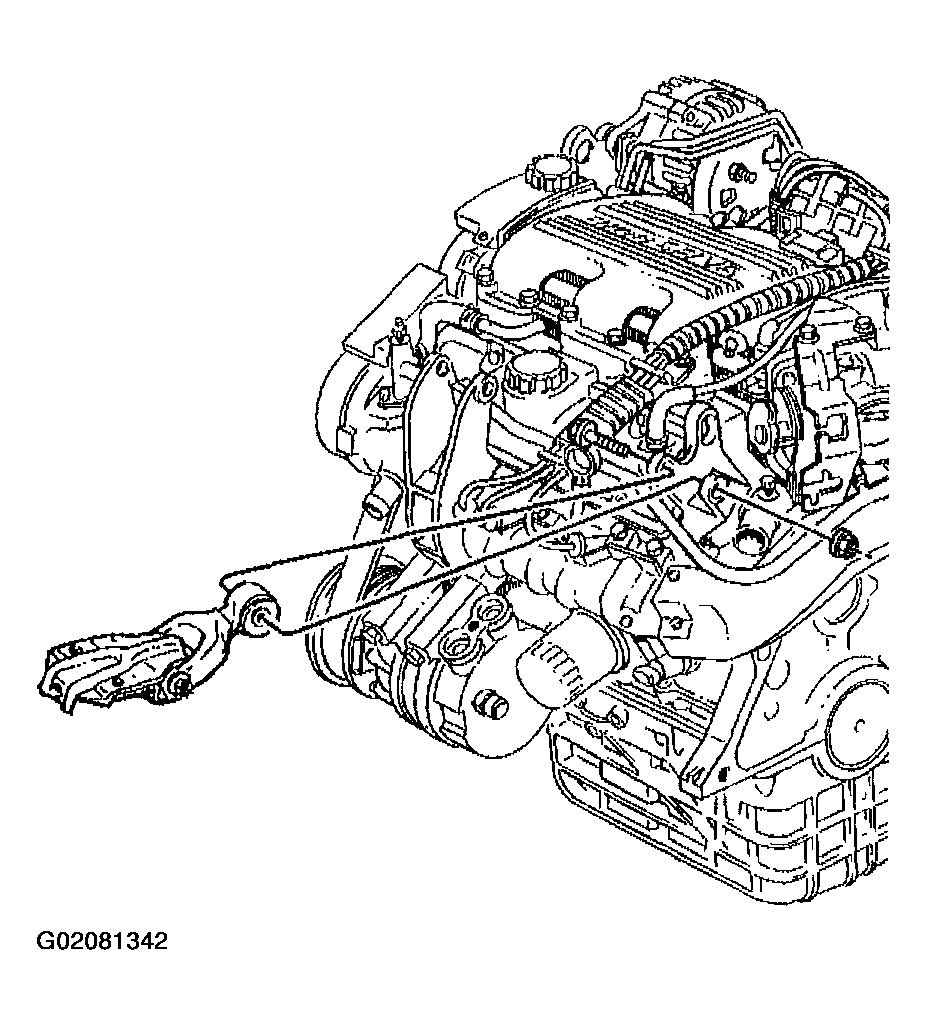

    Fig 1: Removing Engine Mount Sturdy Bracket
    G02081342Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt and the nut from the engine mount strut at the engine mount strut bracket on the upper radiator support.
  3. Remove the engine mount strut.
  4. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking

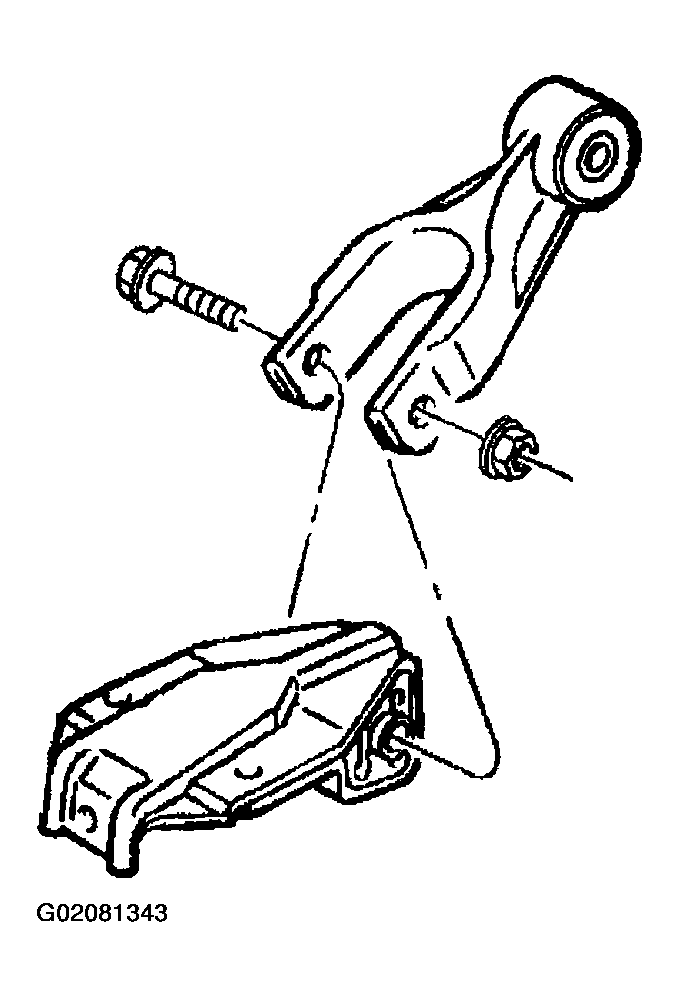

    Fig 2: Removing Engine Mount Strut
    G02081343Courtesy of GENERAL MOTORS CORP.
