Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount strut.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt and the nut to the engine mount strut at the engine mount strut bracket on the upper radiator support.
    1. Tighten
    2. Tighten the engine mount strut bolt to 48 N.m (35 lb ft).

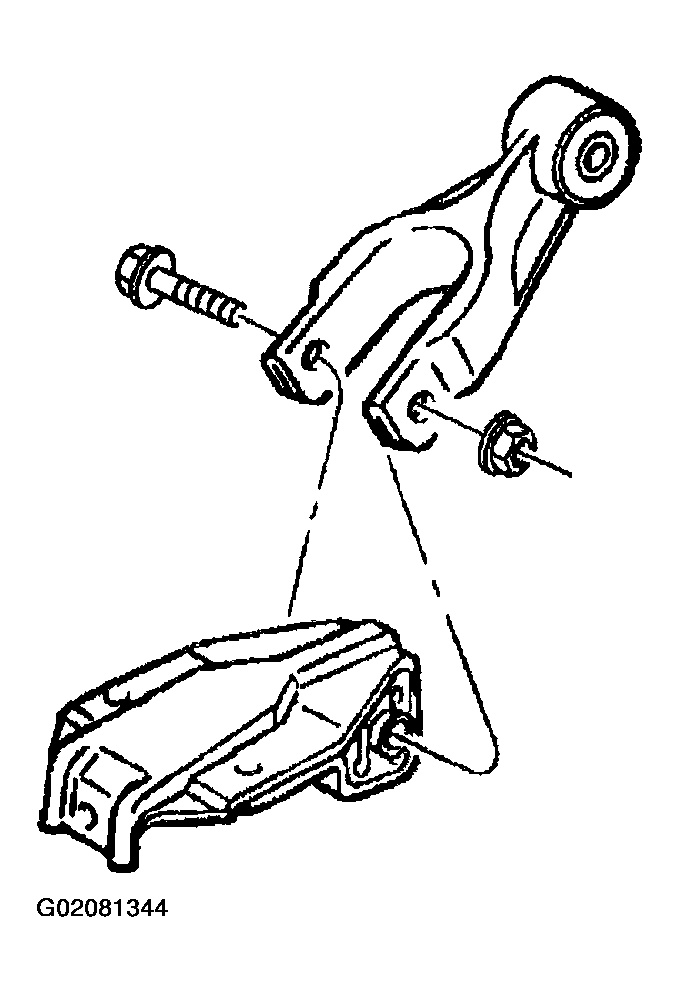

    Fig 1: Installing Engine Mount Strut
    G02081344Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt and the nut to the engine mount strut and the engine mount strut bracket.

    Tighten

    Tighten the engine mount strut nut to 48 N.m (35 lb ft).

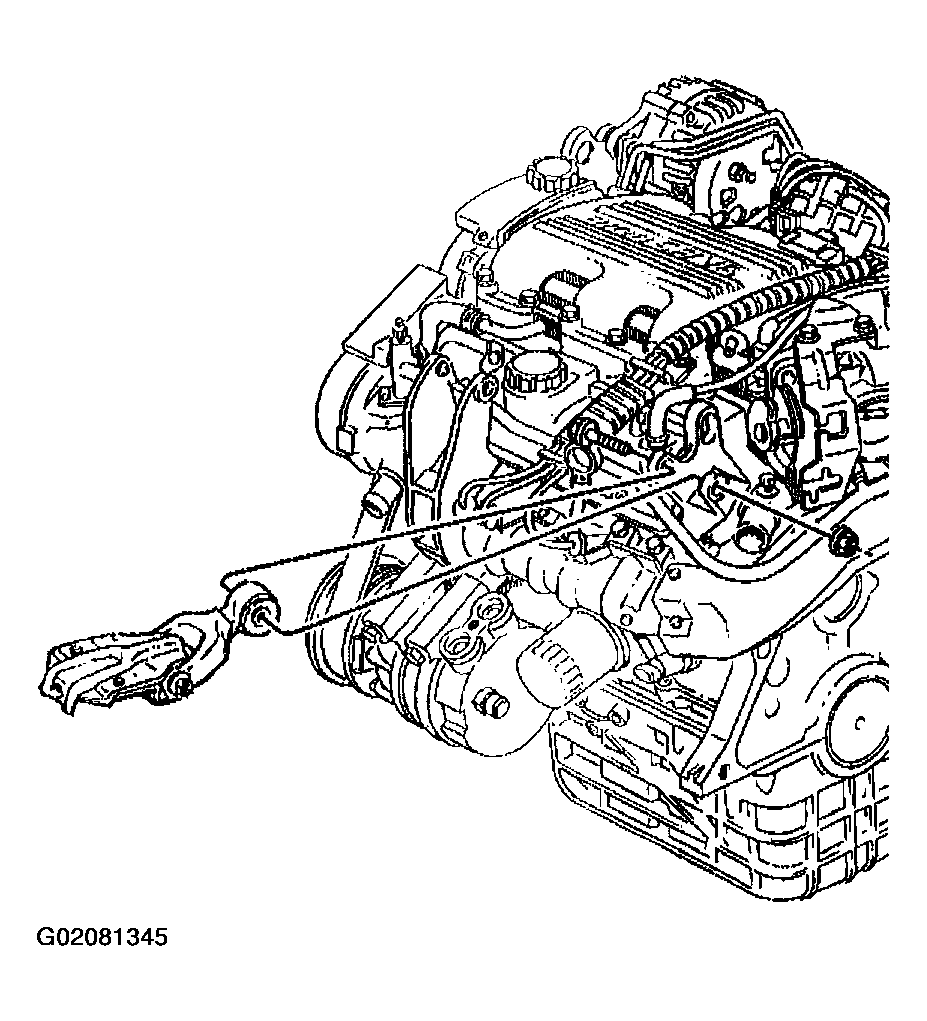

    Fig 2: Installing Engine Mount Strut Bracket
    G02081345Courtesy of GENERAL MOTORS CORP.
