Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
  2. Remove the throttle body air inlet duct.
  3. Remove the engine mount struts. Refer to ENGINE MOUNT STRUT REPLACEMENT  .
  4. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING in General Information.
  5. Remove the three-way catalytic converter pipe from the right (rear) exhaust manifold. Refer to CATALYTIC CONVERTER REPLACEMENT (3.1L) in Engine Exhaust.
  6. Remove the right front wheel and tire. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  7. Remove the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE in Body Front End.
  8. Remove the engine mount lower nuts.

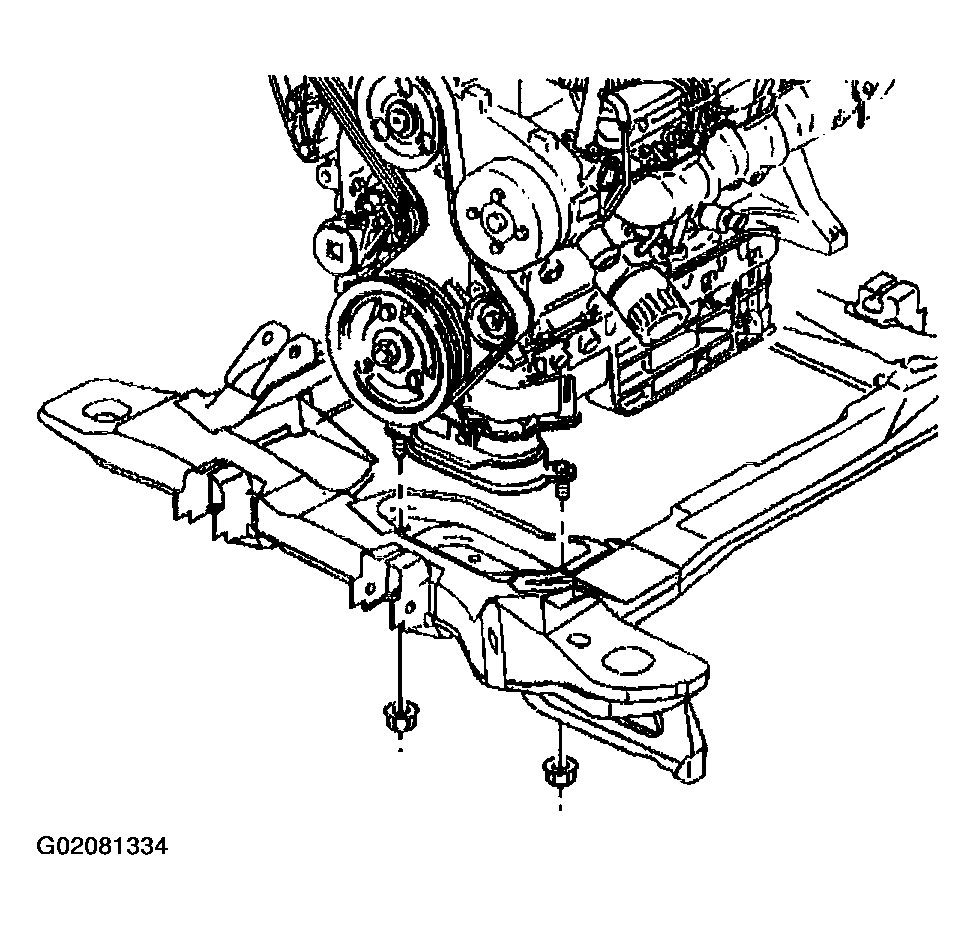

    Fig 1: Removing Engine Mount Lower Nuts
    G02081334Courtesy of GENERAL MOTORS CORP.
  9. Raise the engine, using the engine support fixture. Refer to ENGINE SUPPORT FIXTURE  .
  10. Remove the engine mount bracket-to-oil pan bolts.
  11. Remove the engine mount and the engine mount bracket.

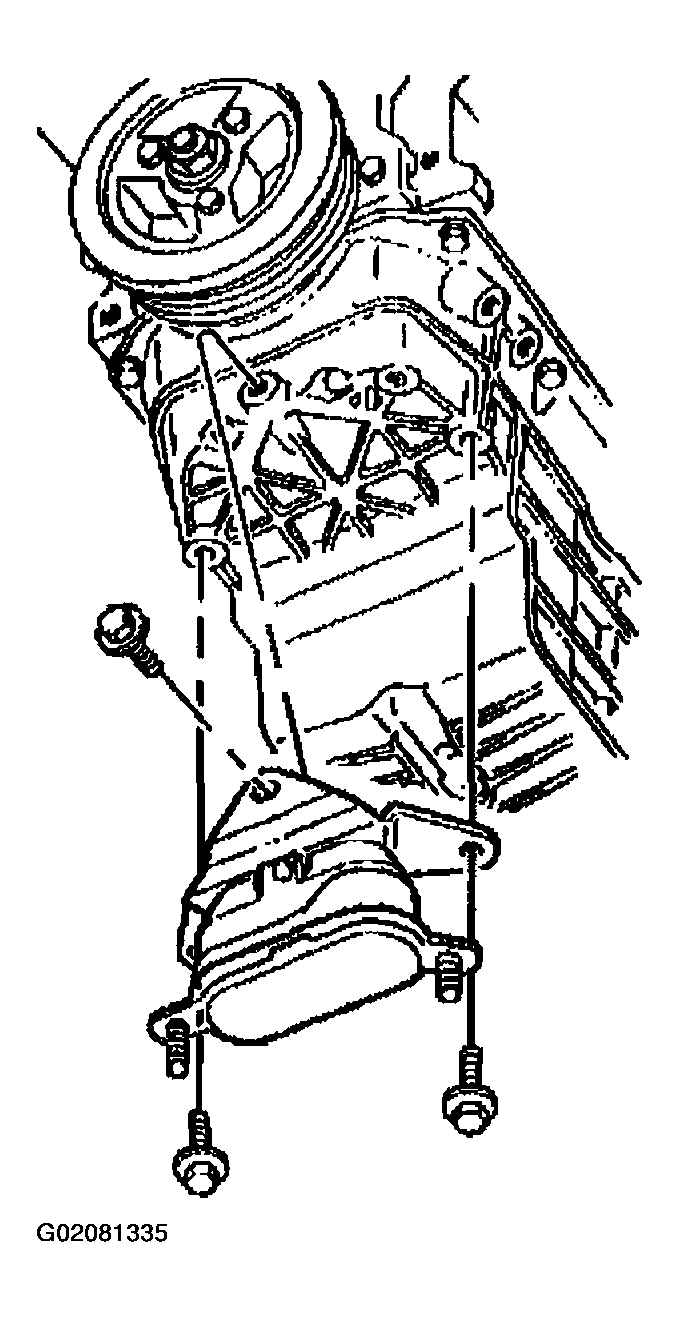

    Fig 2: Removing Engine Mount And Engine Mount Bracket
    G02081335Courtesy of GENERAL MOTORS CORP.
  12. Remove the engine mount bracket. Refer to ENGINE MOUNT BRACKET REPLACEMENT  .

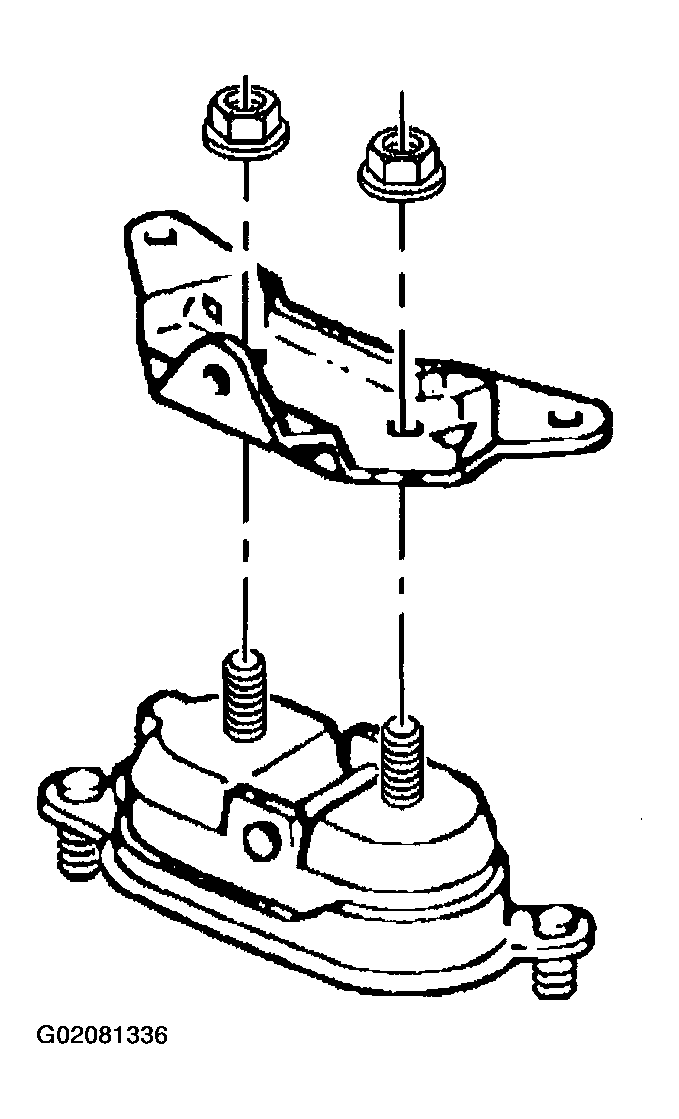

    Fig 3: Removing Engine Mount Bracket
    G02081336Courtesy of GENERAL MOTORS CORP.
