Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount. Refer to ENGINE MOUNT REPLACEMENT  .
  2. Remove the engine mount upper nuts.
  3. Remove the engine mount bracket from the engine mount.

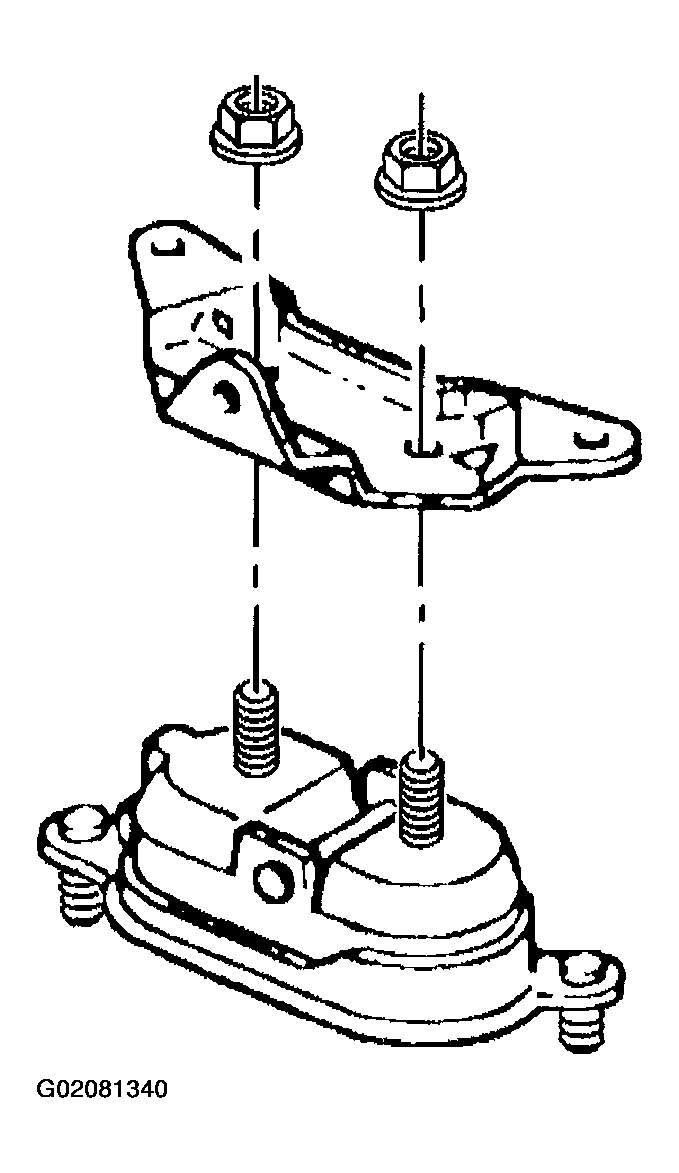

    Fig 1: Removing Engine Mount Bracket
    G02081340Courtesy of GENERAL MOTORS CORP.
