Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic transaxle.
  2. Use the J 37096  to secure the flywheel in order to prevent the crankshaft from rotating.

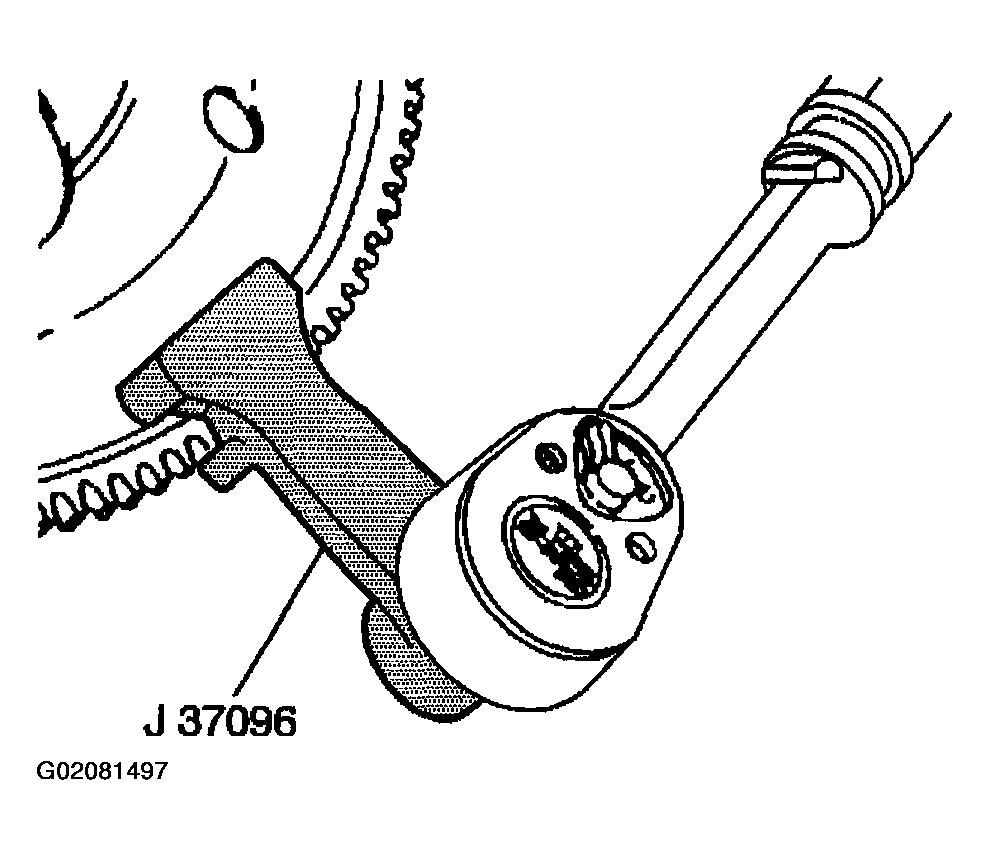

    Fig 1: Removing Engine Flywheel
    G02081497Courtesy of GENERAL MOTORS CORP.
  3. Loosen the 6 flywheel bolts.
  4. Remove 5 of the 6 flywheel bolts leaving 1 bolt at the top of the crankshaft rotation.
  5. Grip the flywheel and remove the remaining bolt.

    Do not drop the flywheel when removing the final bolt.

  6. Remove the engine flywheel retainer and the flywheel.
  7. Clean the engine flywheel bolt threads and bolt holes.

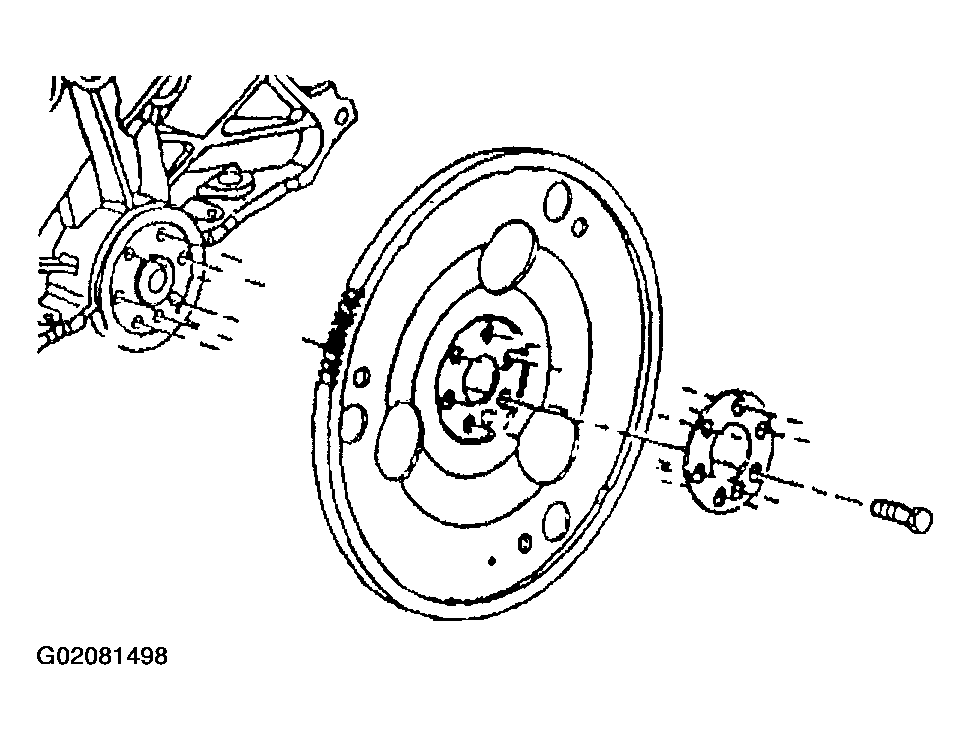

    Fig 2: Removing Engine Flywheel Retainer And Flywheel
    G02081498Courtesy of GENERAL MOTORS CORP.
