Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not scrape, shim, or file bearing inserts. If the bearing surface of the insert is touched with bare fingers, the skin oil and acids will etch the bearing surface.

Important: Ensure that the connecting rod cap bolt holes and the connecting rod cap mating surfaces are clean and dry.

Use clean engine oil in order to lubricate the bearing surface.
Install the upper connecting rod bearing.
Use the J 5239 to pull down the piston, the connecting rod and the upper connecting rod bearing.
Remove the J 5239 .
Install the lower connecting rod bearing to the connecting rod cap.
Install the connecting rod cap.

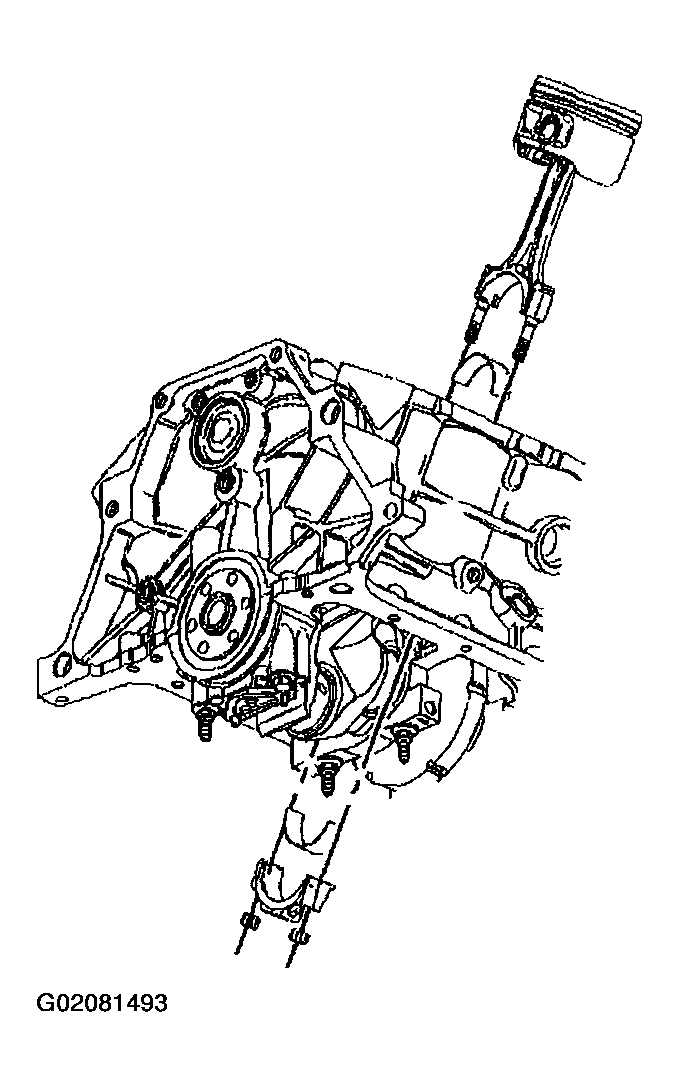

Fig 1: Installing Connecting Rod
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the connecting rod cap nuts.
Tighten
1. 7.1. Tighten the nuts to 20 N.m (15 lb ft).
2. 7.2. Use the J 36660-A to rotate the nuts an additional 75 degrees.
Pry the connecting rod back and forth in order to check for binding. If necessary, loosen and then retighten the connecting rod cap nuts.
Measure the connecting rod side clearance. Refer to ENGINE MECHANICAL SPECIFICATIONS .

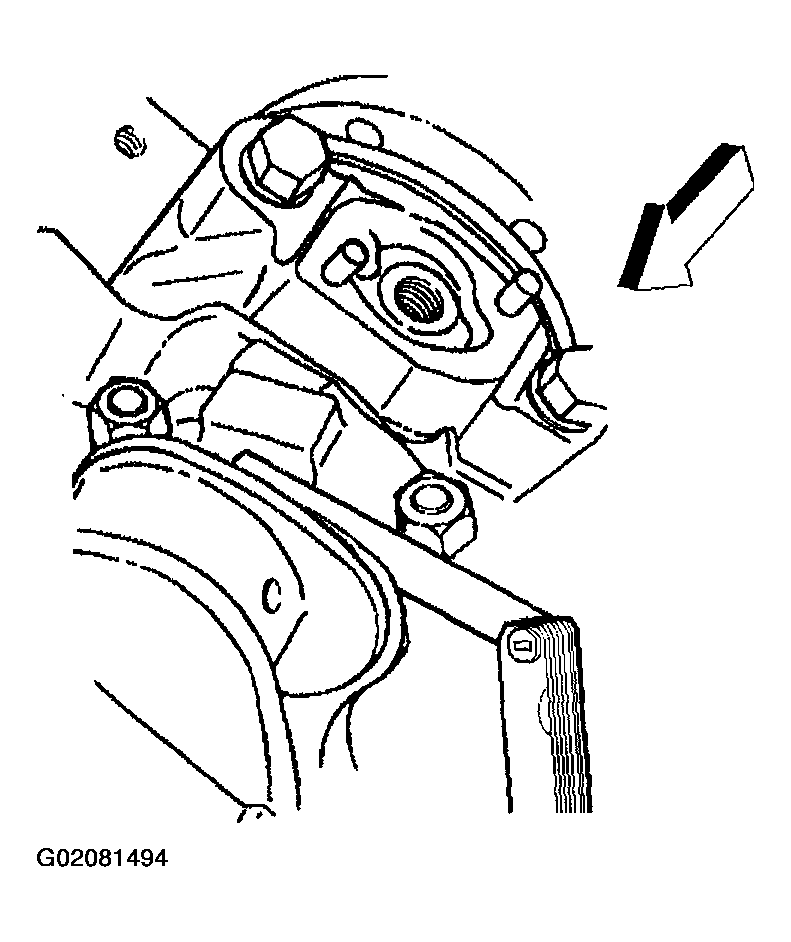

Fig 2: Measuring Connecting Rod Side Clearance
Courtesy of GENERAL MOTORS CORP.
Install the crankshaft oil deflector.
Install the crankshaft oil deflector nuts.
Tighten

Tighten the nuts to 25 N.m (18 lb ft).

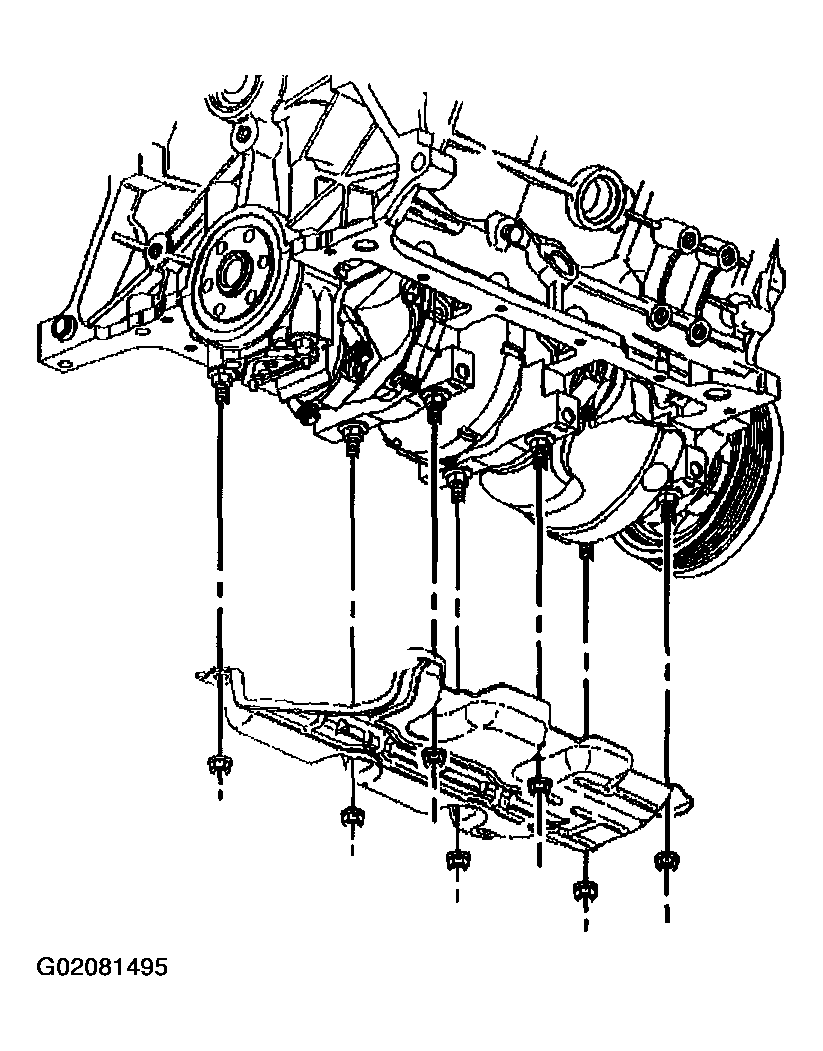

Fig 3: Installing Crankshaft Oil Deflector
Courtesy of GENERAL MOTORS CORP.
Install the oil pump driveshaft and the oil pump.
Install the oil pump bolt.
Tighten

Tighten the bolt to 41 N.m (30 lb ft).
Install the spark plugs to the cylinders that was serviced. Refer to SPARK PLUGS in Engine Performance - Removal and Installation.
Install the oil pan. Refer to OIL PAN REPLACEMENT .
Inspect for proper oil pressure.
Inspect for leaks.

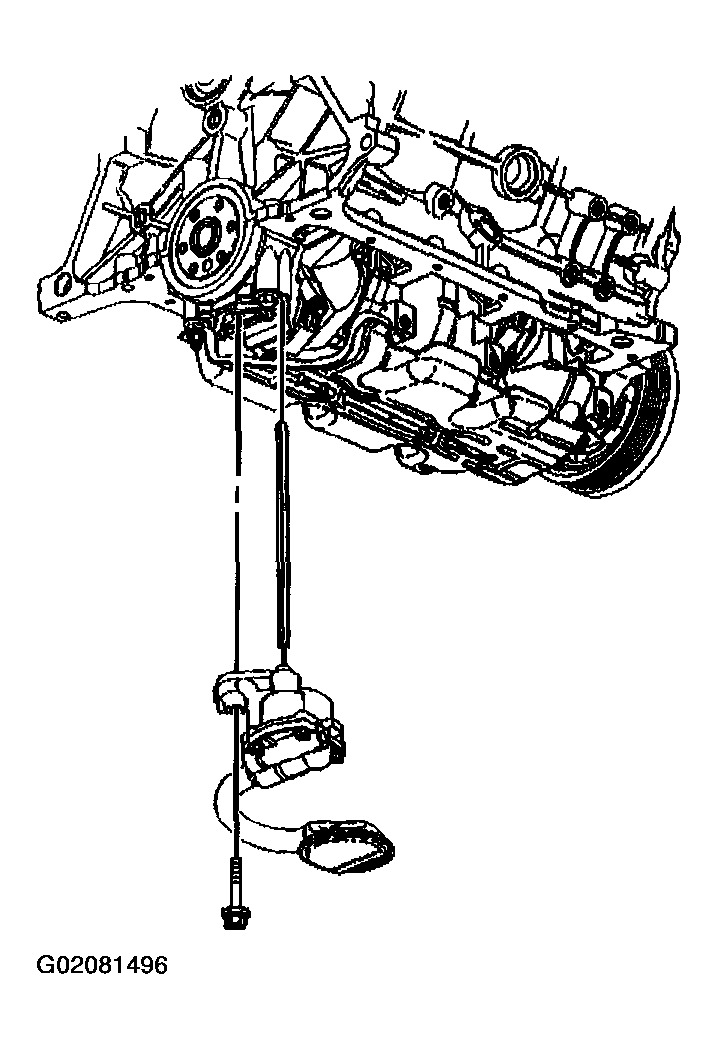

Fig 4: Installing Oil Pump
Courtesy of GENERAL MOTORS CORP.
