Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the camshaft rear bearing hole plug with sealer. Use sealer GM P/N 12377901 (Canadian P/N 10953504) or the equivalent.
  2. Install the camshaft rear bearing hole plug.

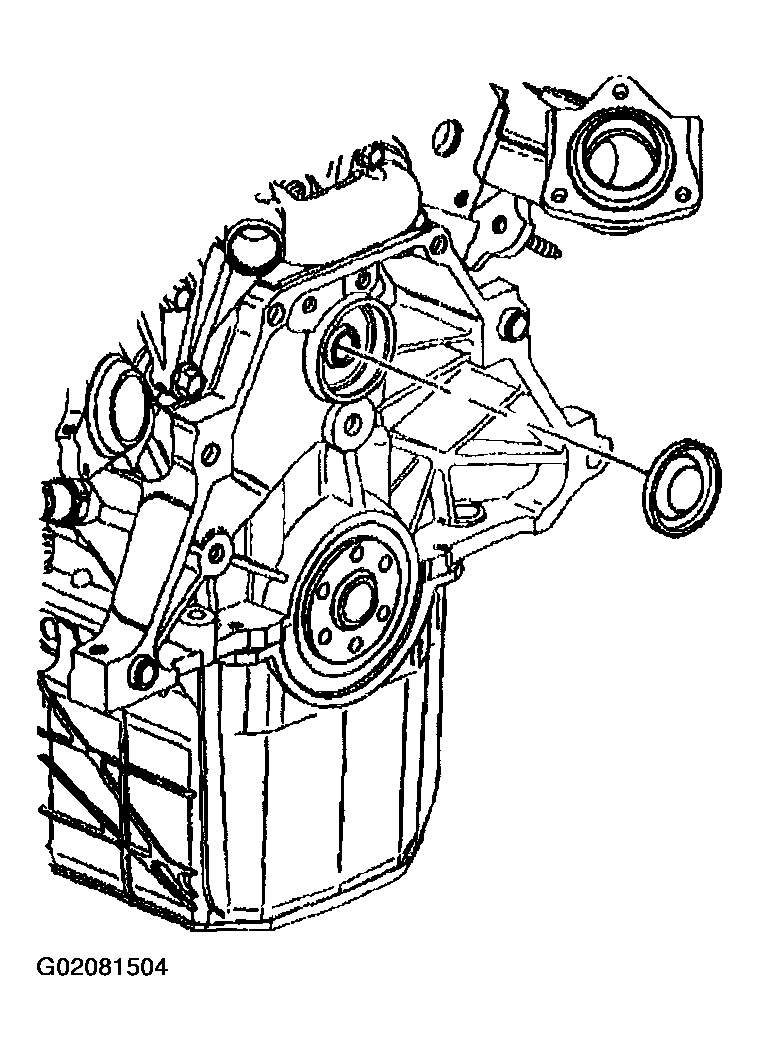

    Fig 1: Installing Camshaft Rear Bearing Hole Plug
    G02081504Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the camshaft rear bearing plug is installed to specifications.
  4. Install the engine flywheel. Refer to ENGINE FLYWHEEL REPLACEMENT  .
    Fig 2: Installing Engine Flywheel
    G02081505Courtesy of GENERAL MOTORS CORP.
