Water Pump Installation

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump gasket.
  2. Install the water pump.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the water pump bolts.

    Tighten

    Tighten the water pump bolts to 10 N.m (89 lb in).

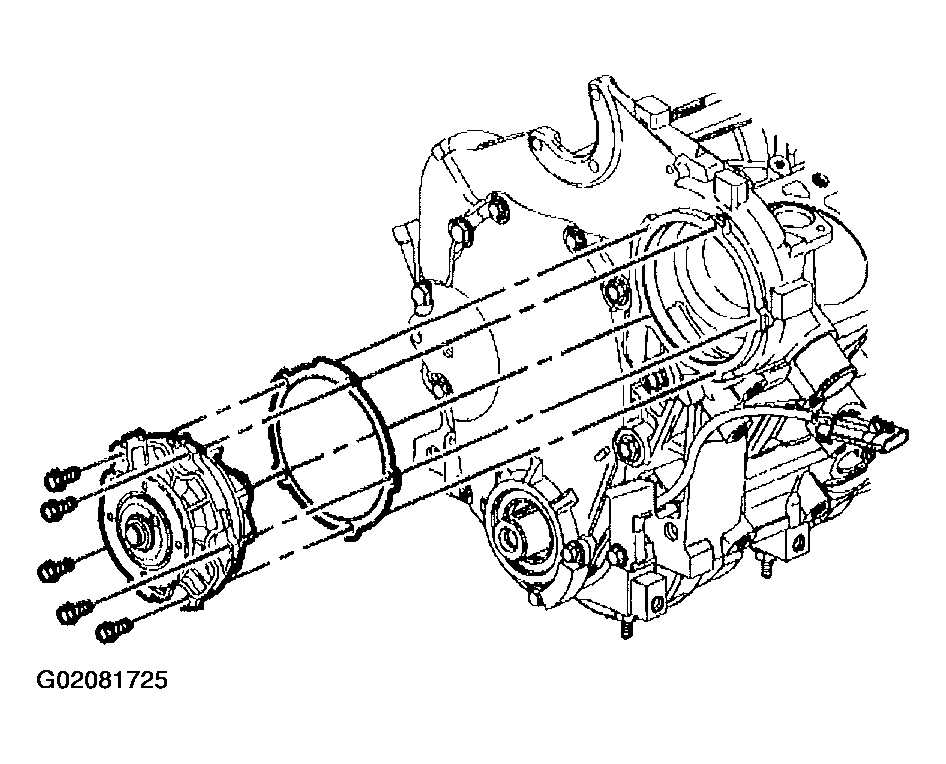

    Fig 1: Installing Water Pump
    G02081725Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley.
  5. Install the water pump pulley bolts.

    Tighten

    Tighten the water pump pulley bolts to 25 N.m (18 lb ft).

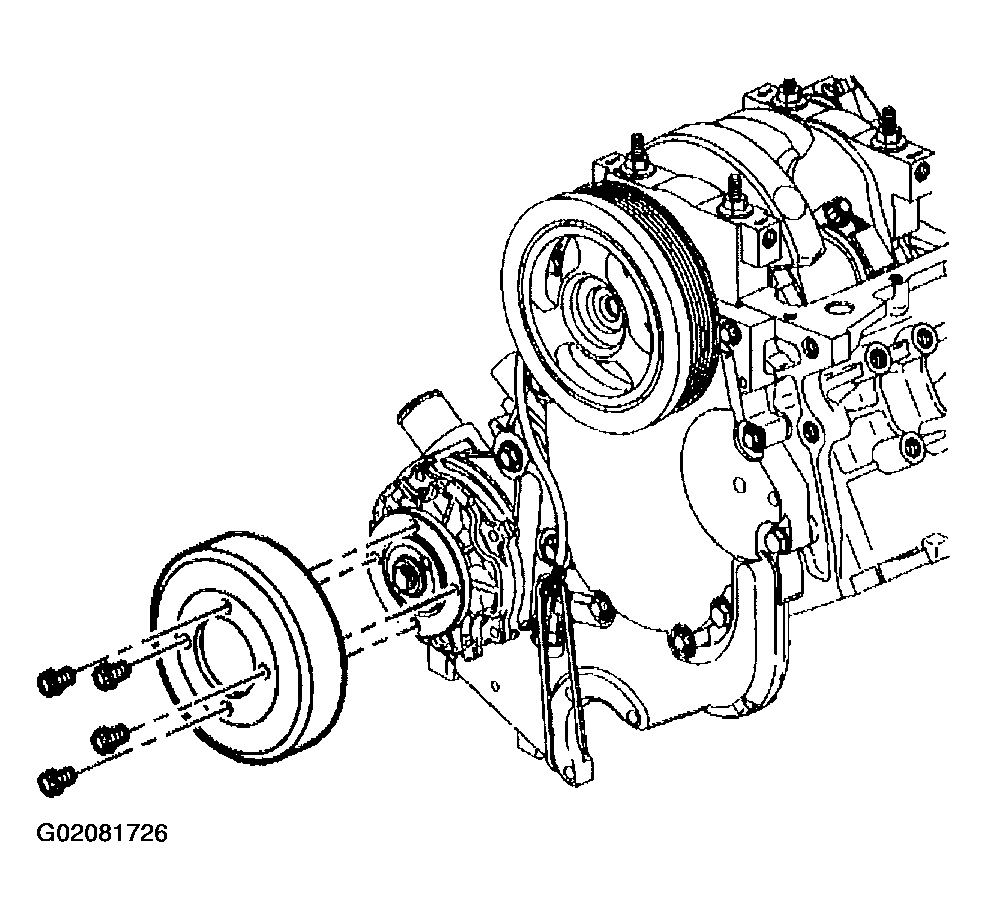

    Fig 2: Installing Water Pump Pulley
    G02081726Courtesy of GENERAL MOTORS CORP.
