Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

J 41131  Engine Tilt Strap

  1. Remove the air cleaner intake duct.
  2. Apply the parking brake.
  3. Put the transaxle in the Neutral position.
  4. Remove the engine mount struts. Refer to ENGINE MOUNT STRUT REPLACEMENT  .
  5. Install the J 41131  (2) to the engine lift bracket (1) and the upper radiator support (3).
  6. Rotate the engine forward for component access.

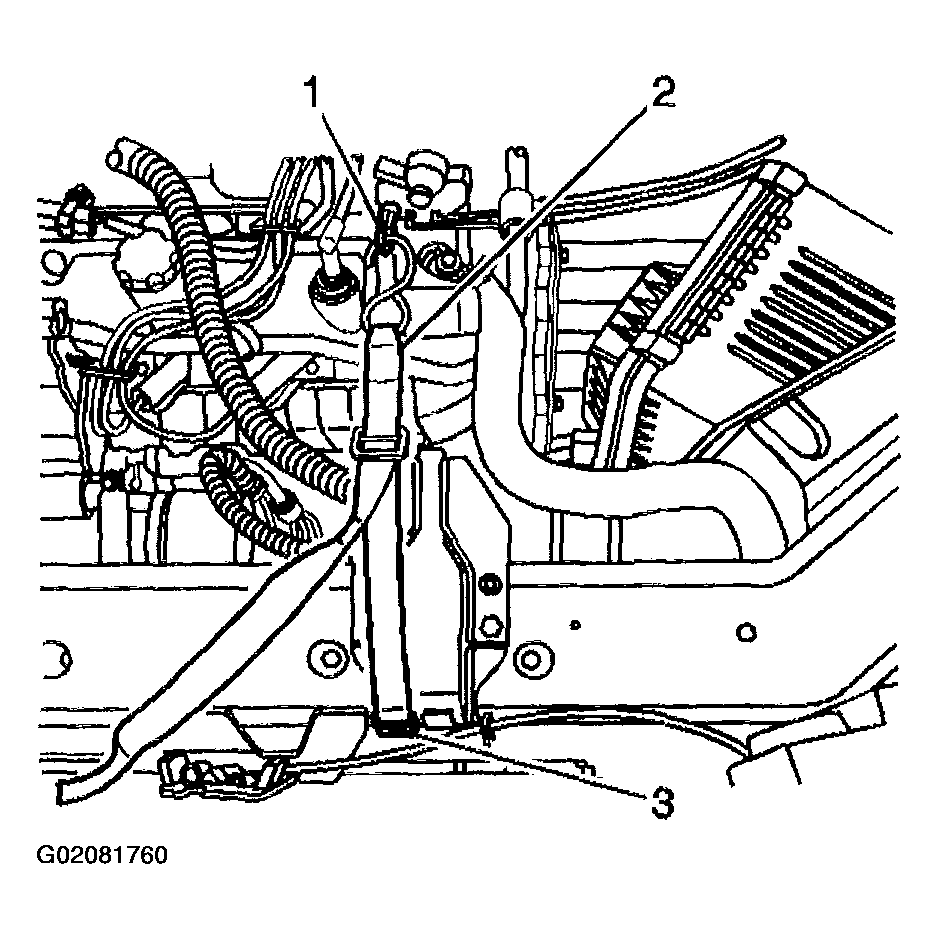

    Fig 1: Installing Engine Lift Bracket And Upper Radiator Support
    G02081760Courtesy of GENERAL MOTORS CORP.
