Engine Front Cover Removal

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover bolts (1, 2, 3).
  2. Remove the engine front cover.
  3. Remove the engine front cover gasket.

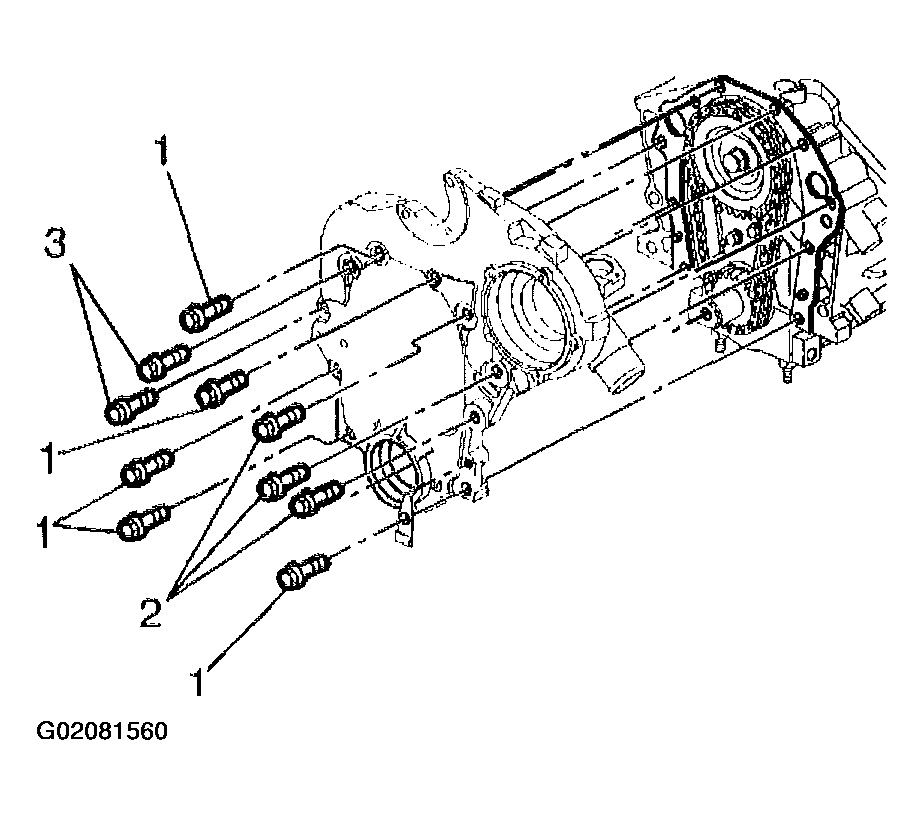

    Fig 1: Removing Engine Front Cover
    G02081560Courtesy of GENERAL MOTORS CORP.
