Engine Flywheel Installation

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flywheel.
  2. Install the flywheel retainer.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the flywheel bolts.

    Tighten

    Tighten the flywheel bolts to 71 N.m (52 lb ft).

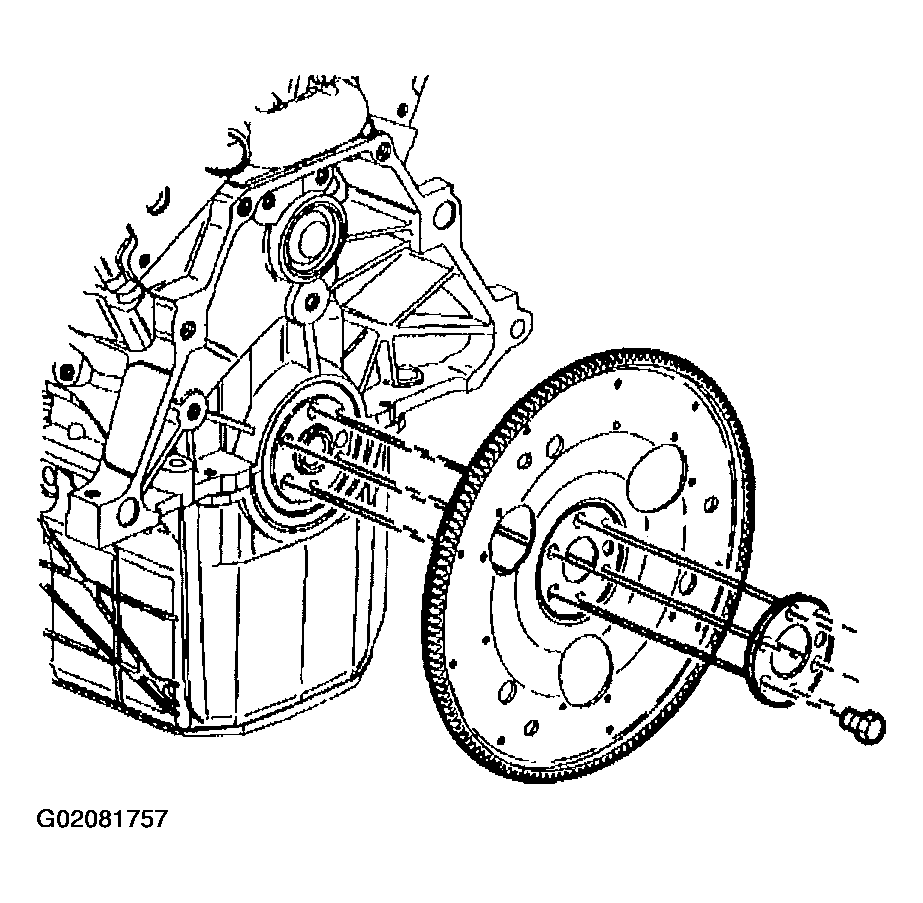

    Fig 1: Installing Engine Flywheel
    G02081757Courtesy of GENERAL MOTORS CORP.
